Product information

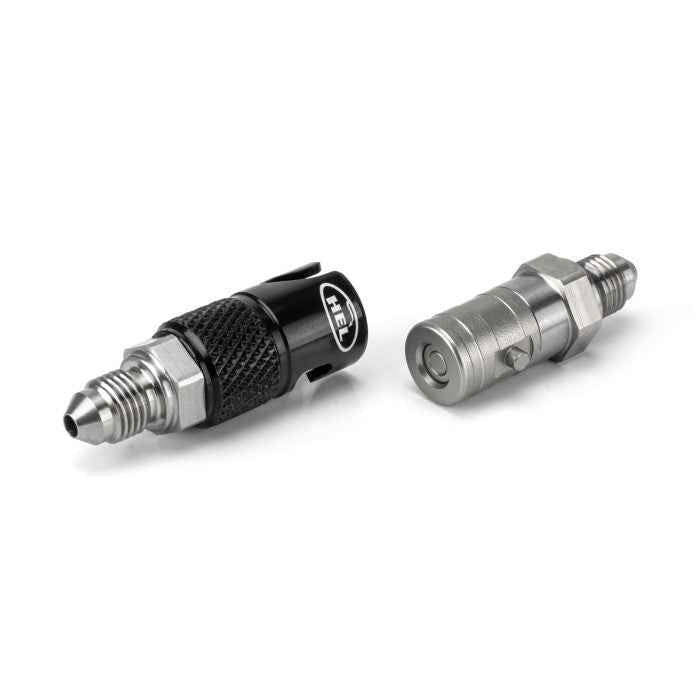

When it's a race against time the HEL quick release dry break system facilitates the rapid removal and installation of brake lines, brake calipers, clutch lines, and gearboxes whilst eliminating any fluid or pressure loss during pit stops and maintenance at the race track.
The dry break system is protected from the corrosive effects of DOT 3, 4, and 5.1 fluids by a high quality Titanium construction and DOT-safe EPDM O-ring seals. A smooth swivel bayonet locking system is combined with high-pressure springs to guarantee the clean and secure transfer of brake fluid, eliminating the ingress of air during the quick connection of both couplings.
Adding a quick release dry break coupler to any HEL brake or clutch system voids the lifetime warranty for road use. This product is intended for use only by individuals competent with brake systems in motorsport applications.
The HEL Performance range of adapters and fittings presents a versatile solution for routing fluid lines such as Fuel, Oil, and Water across a vast range of applications throughout the Motorsport and Automotive industry. Our fittings and adapters are widely embraced as the industry standard in high-performance applications, where fluid systems are required to challenge intense pressures, extreme temperatures and demanding conditions. Every component, from Aluminium hose ends to Stainless Steel bleed nipples, has been CNC machined using premium materials, delivering exceptional resistance to corrosion and wear. This commitment guarantees longevity and unwavering durability, even amidst the most demanding automotive environments.
Specifications
| Component Type | Quick Release Dry Break Coupler |
| Connection Type | Double Shut Off System |
| Application | HEL Brake & Clutch Systems (Motorsport ONLY) |
| Inlet Thread (Male) | AN3 / -3 AN / 3/8-24" UNF |
| Outlet Thread (Male) | AN3 / -3 AN / 3/8-24" UNF |
| Flow Diameter (Internal) | 3.20mm / 0.12" / 1/8" |
| Length (Overall - Including Threads) | 70.00mm / 2.75" |
| Width (Widest Point) | 16.30mm / 0.64" |
| Weight | 25g / 0.05lbs |
| Operating Pressure (Maximum) | 5100 PSI / 351.6 BAR |
| Fluid Compatibility | DOT 3, 4 & 5.1 |
| Material (O-Ring Seal) | EPDM |
| Material | 6AL4V Titanium |
| Finish | Anodised Black & Silver |
| Brand | HEL |
What's Included
- 1x HEL AN3 Quick Release Dry Break Coupler
