Product information

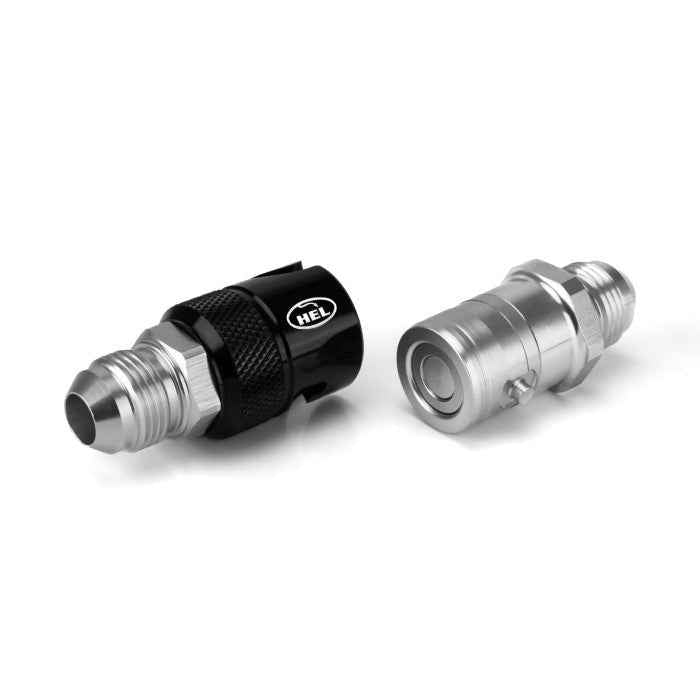

When it's a race against time the HEL quick release dry break system facilitates the rapid removal and installation of fuel, oil and coolant lines for critical components such as oil coolers, turbochargers, fuel rails, fuel cells, fuel filters, whilst eliminating any fluid or pressure loss during pit stops and maintenance at the race track.
A smooth swivel bayonet locking system is combined with high-pressure springs to guarantee the clean and secure transfer of brake fluid, eliminating the ingress of air during the quick connection of both couplings.
The HEL Performance range of adapters and fittings presents a versatile solution for routing fluid lines such as Fuel, Oil, and Water across a vast range of applications throughout the Motorsport and Automotive industry. Our fittings and adapters are widely embraced as the industry standard in high-performance applications, where fluid systems are required to challenge intense pressures, extreme temperatures and demanding conditions. Every component, from Aluminium hose ends to Stainless Steel bleed nipples, has been CNC machined using premium materials, delivering exceptional resistance to corrosion and wear. This commitment guarantees longevity and unwavering durability, even amidst the most demanding automotive environments.
Specifications
| Component Type | Quick Release Dry Break Coupler |
| Connection Type | Double Shut Off System |
| Application | Fuel, Oil & Coolant Systems (Motorsport ONLY) |
| Inlet Thread (Male) | AN8 / AN08 / -8 AN |
| Outlet Thread (Male) | AN8 / AN08 / -8 AN |
| Flow Diameter (Internal) | 9.95mm / 0.39" / 3/8" |
| Length (Overall - Including Threads) | 87.0mm / 3.42" |
| Width (Widest Point) | 27.5mm / 1.08" |
| Weight | 71g / 0.15lbs |
| Operating Pressure (Maximum) | 1250 PSI / 86.2 BAR |
| Fluid Compatibility | Petrol, Diesel, Race Fuel, Engine Oil, Power Steering Fluid, Gear Oil (Differential Coolers) |
| Material (O-Ring Seal) | FPM (Viton) |
| Material | 6061-T6 Aluminium |
| Finish | Anodised Black & Silver |
| Brand | HEL |
What's Included
- 1x HEL AN8 Quick Release Dry Break Coupler
