Product information
Welcome to the HEL Performance range of high-quality, dependable and unrivalled oil system components. Our widely embraced, race-winning products have not only secured victories on the race track but have also been rigorously tested on the open road.
What sets us apart is simple yet significant; we handle the entire CNC machining process in-house for our complete range of oil system components. This gives us full control over the manufacturing process, leading to exceptional quality and faultless products. This commitment guarantees longevity and unwavering durability, even when used in the most demanding and challenging environments.

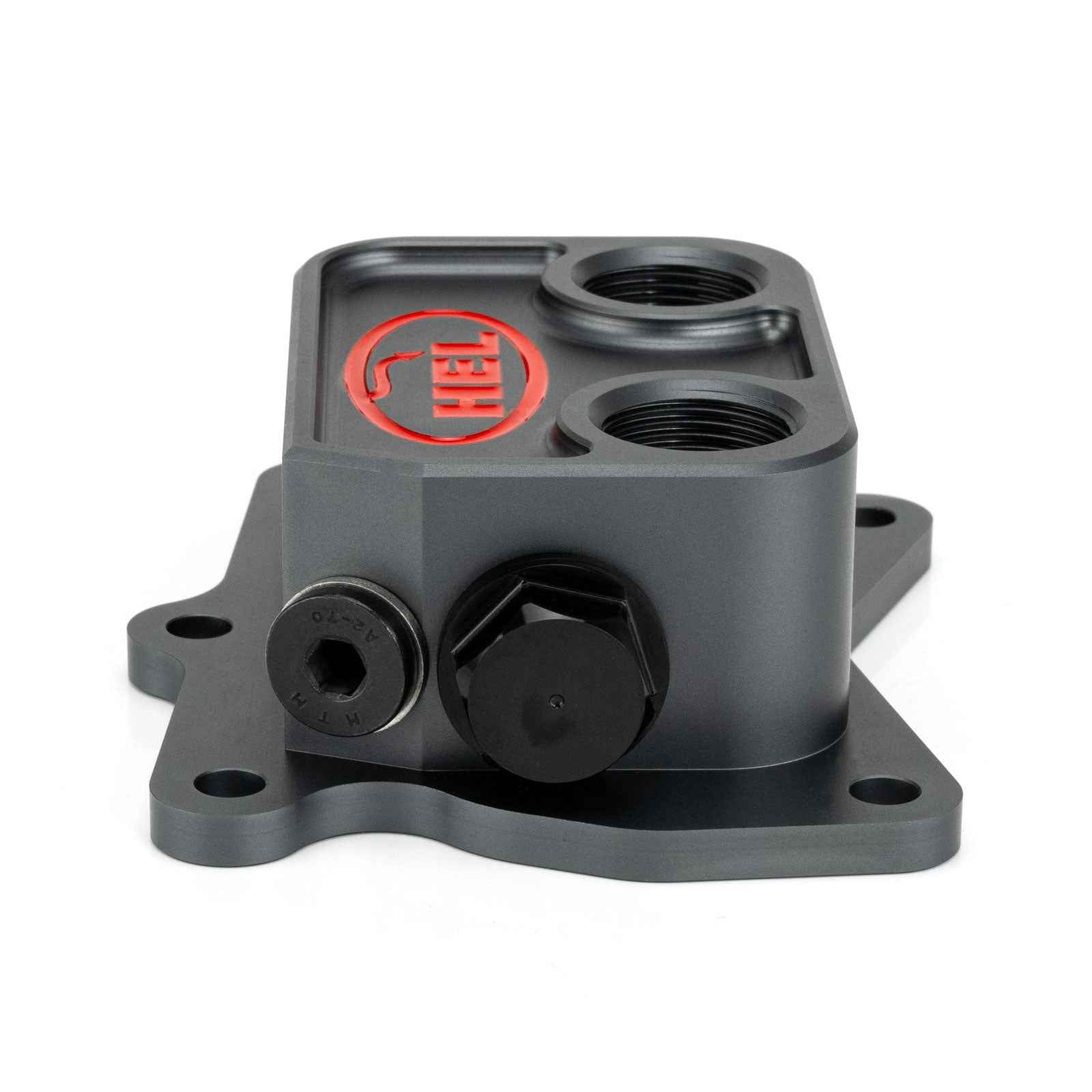

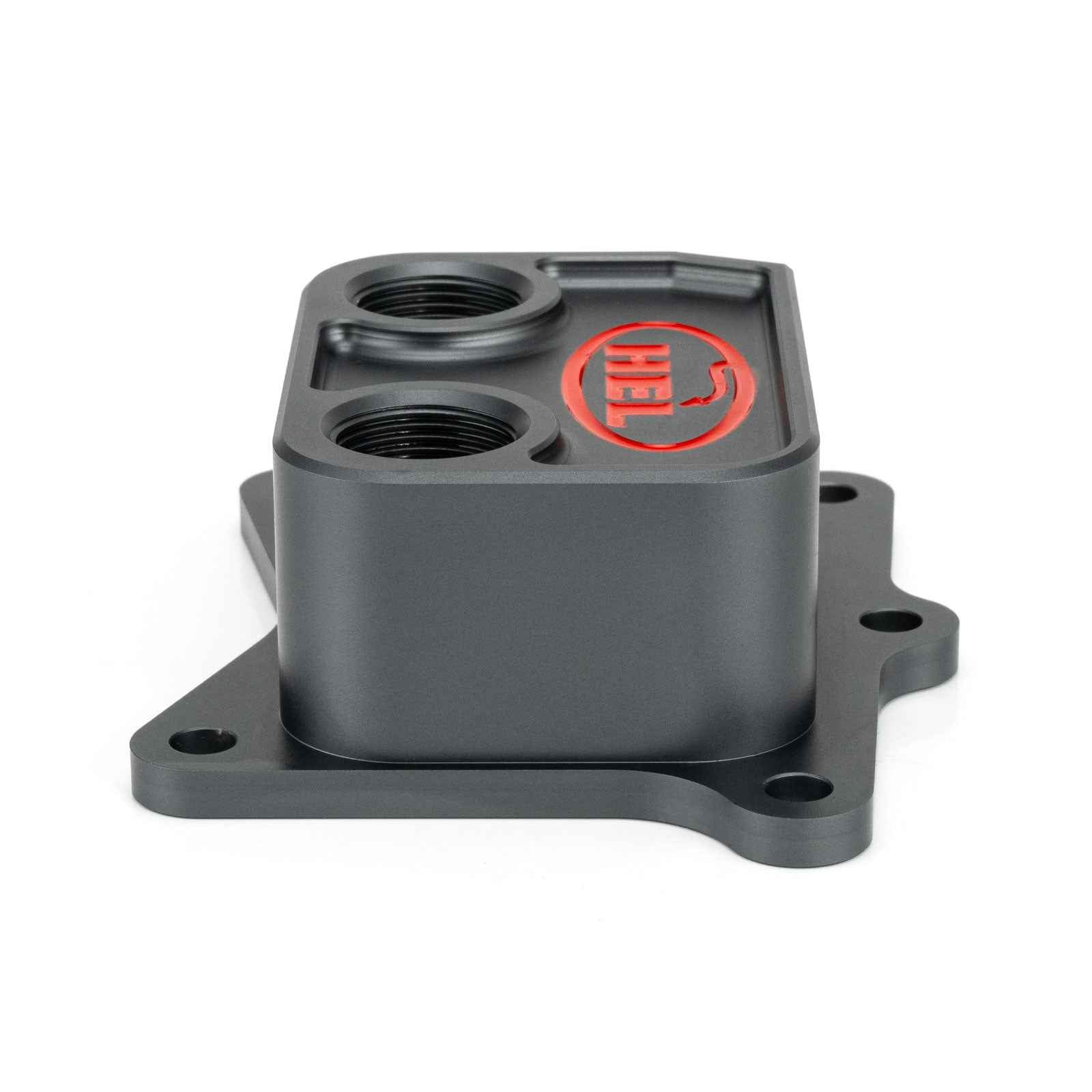

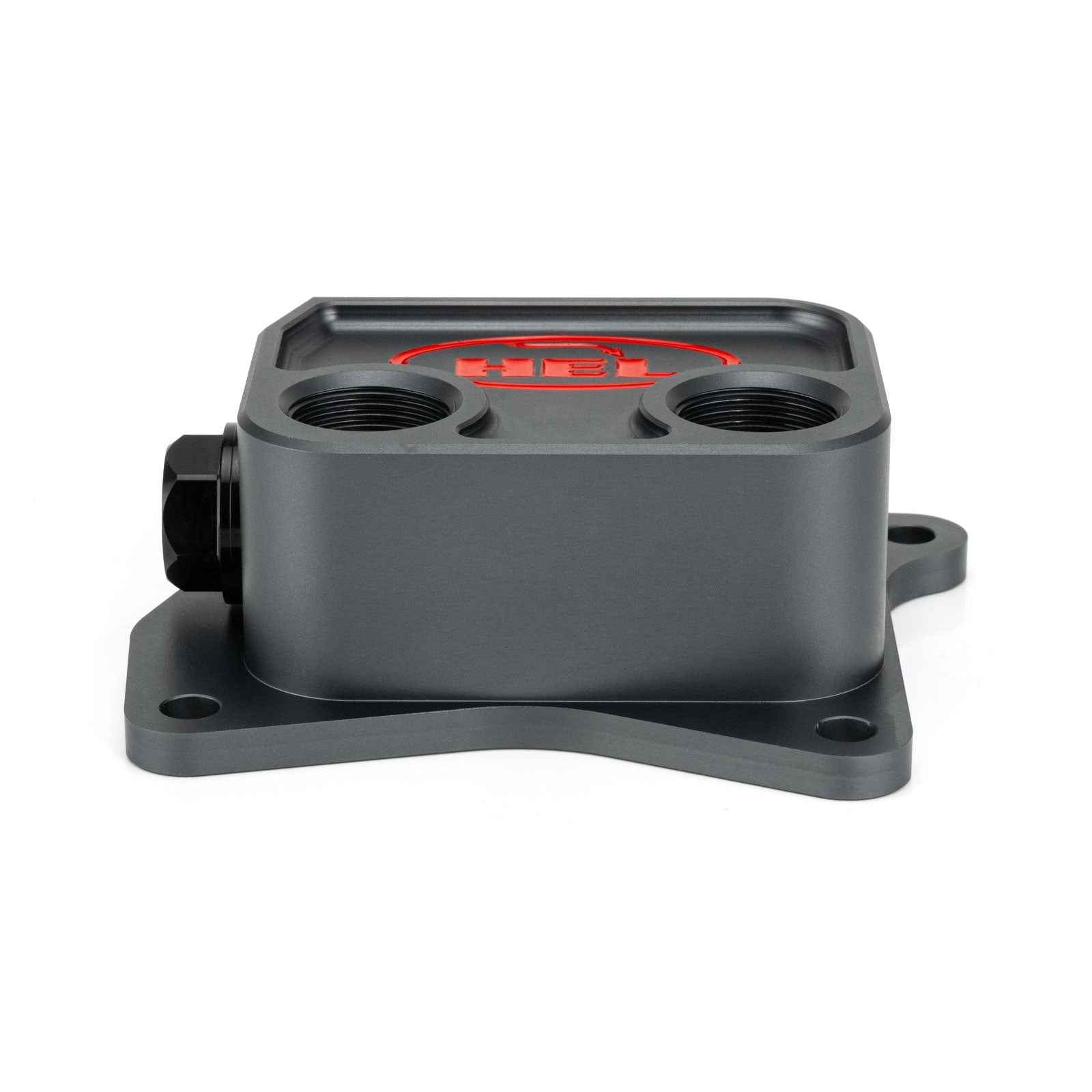

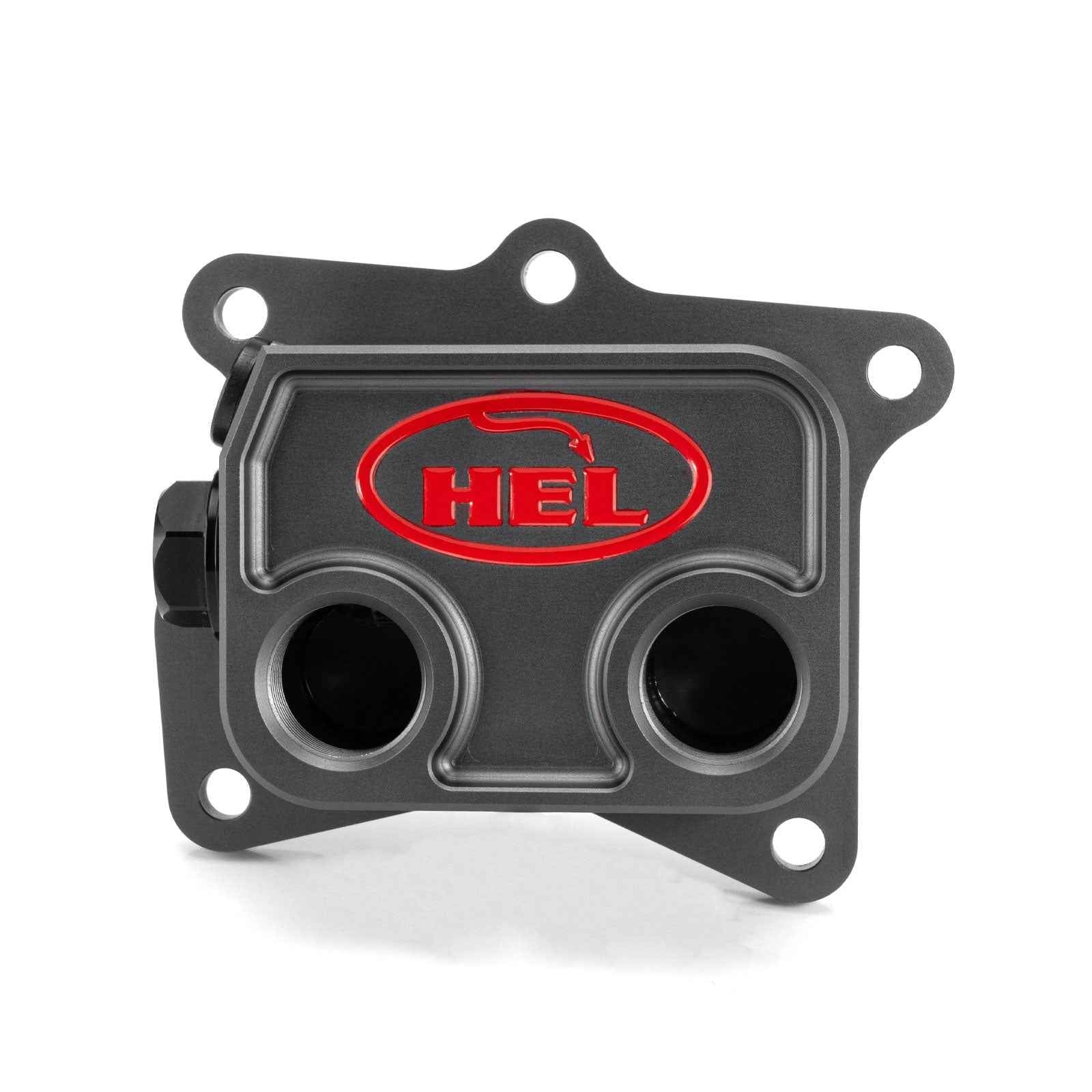

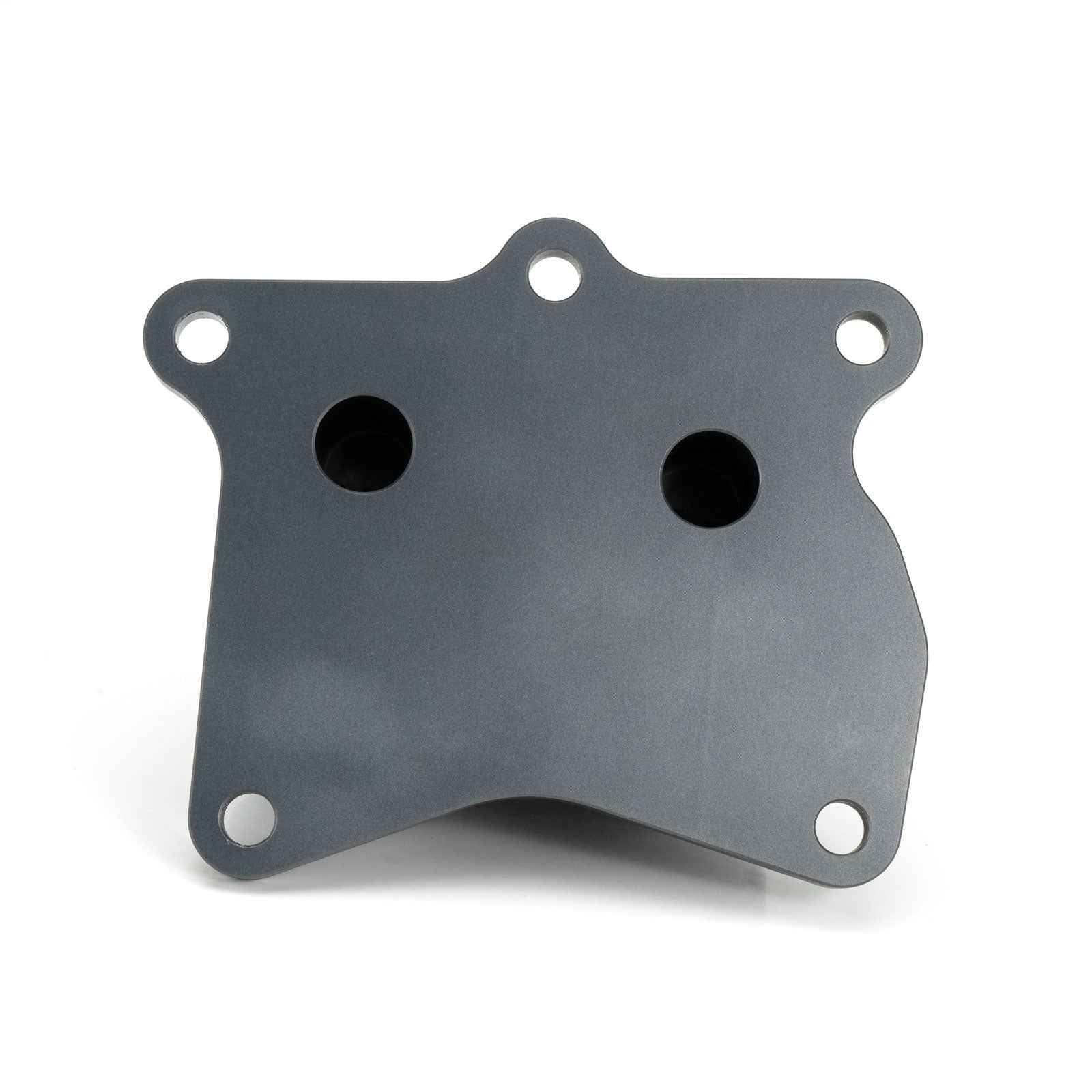

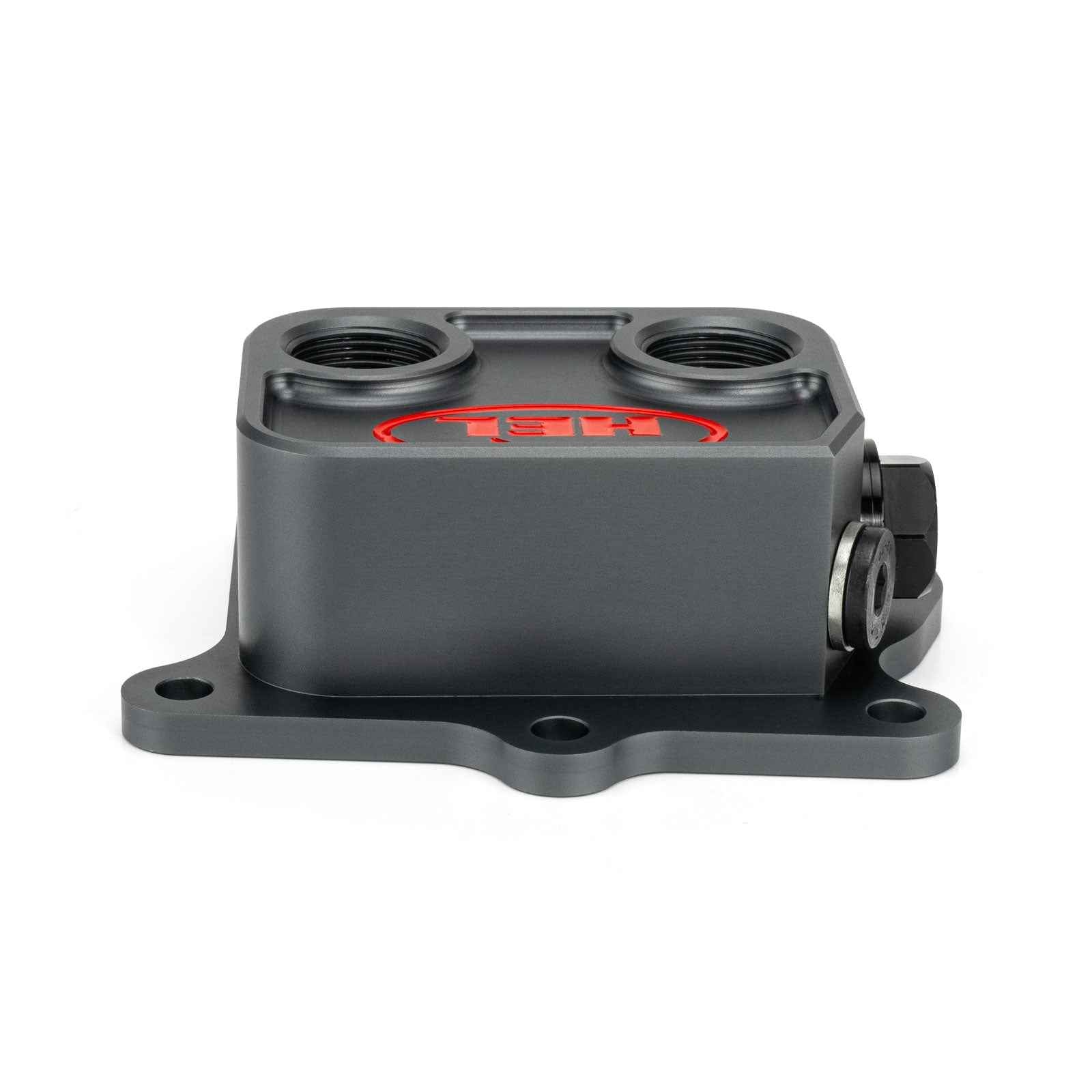

The HEL Performance i20 N oil cooler take-off plate has been designed to facilitate the transfer of oil flow from your engine block to an external oil cooler, improving control over your engine's oil temperature, especially in demanding conditions when the OEM heat exchanger falls short and exceeds its ability to keep oil temperatures down. Thanks to its remarkably slimline and compact design, our take-off design avoids any interference with chassis and auxiliary components, guaranteeing a straightforward installation process.
Equipped with a built-in thermostat, this take-off ensures that your engine oil flows to the external oil cooler only when it reaches the desired operating temperature. This innovative feature not only promotes a quicker engine warm-up but also provides added safeguarding in cold weather conditions, setting it apart from non-thermostatic alternatives. Once your engine oil reaches the pre-set temperature (82°C, 92°C, or 102°C), the valve opens, permitting the flow of oil to the external oil cooler. This results in a controlled reduction of oil temperature as it circulates through the external oil cooler, which is often equipped with cooling fins and/or with the addition of a fan to improve heat dissipation. Around 10% of the engine oil circulates through the oil cooler at any given time, this ensures a continuous flow that prevents air pockets and safeguards against thermal shock to the system. The surplus oil is channelled back to the engine or transmission through the internal bypass system, promoting faster warm-up and eliminating the risk of overcooling.
Please note, we also offer an entire direct fit oil cooler kit for the Hyundai i20 N.
**This is a direct replacement specifically for Hyundai #26410-2M800 heat exchanger. Please check the part number on your application before purchasing.**
Thermostat Temperature Recommendations
| 82°C / 180°F | Hot Climates & Extreme Racing Conditions |
| 92°C / 198°F - Most Common | Mixed Climates & Fast Road/Track Use |
| 102°C / 216°F | Cold Climates |
Specifications
| Component Type | Oil Cooler Take Off Plate (Thermostatic) |
| Compatibility (Vehicle Manu. & Model) | Hyundai i20 N |
| Compatibility (Engine) | G4F 1.6L |
| Directly Replaces Part: | #26410-2M800 |
| Thermostat Temperature | 82°C / 180°F, 92°C / 198°F or 102°C / 216°F |
| Inlet/Outlet Port Thread | M22 x 1.5mm |
| Weight (Excl. Adapters) | 508g / 1.12lbs |
| Mounting Hardware Included? | Yes - 5x Stainless Steel Bolts |
| Colour | 'HEL' Grey |
| Finish | Hard Anodised |
| Material | 6082-T6 Aluminium |
| Brand | HEL Performance |
What's Included
- 1x i20 N Oil Cooler Take Off Plate (Engine Block)
- 2x M22 - AN Adapters (Selectable)
- 1x Mounting Hardware Kit (Stainless Steel)
