Product information

Description
Welcome to the HEL Performance range of high-quality, dependable and unrivalled oil system components. Our widely embraced, race-winning products have not only secured victories on the race track but have also been rigorously tested on the open road.
What sets us apart is simple yet significant; we handle the entire CNC machining process in-house for our complete range of oil system components. This gives us full control over the manufacturing process, leading to exceptional quality and faultless products. This commitment guarantees longevity and unwavering durability, even when used in the most demanding and challenging environments.

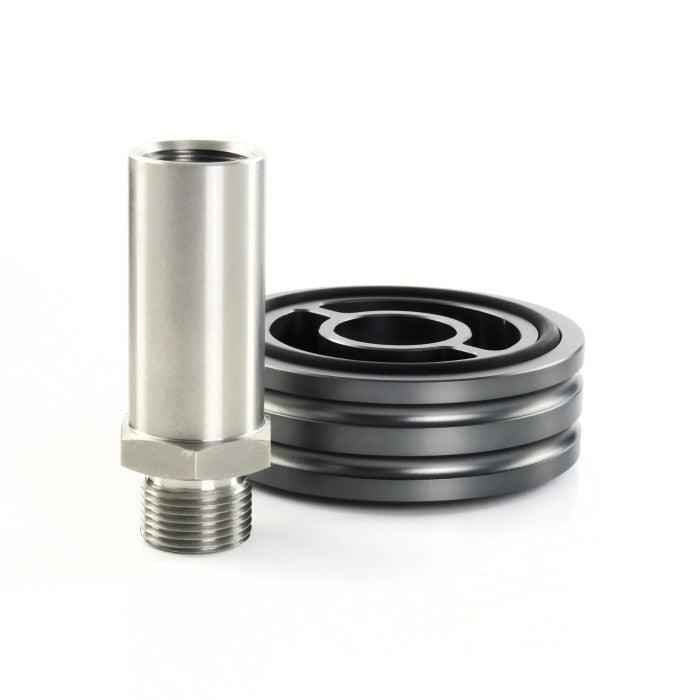

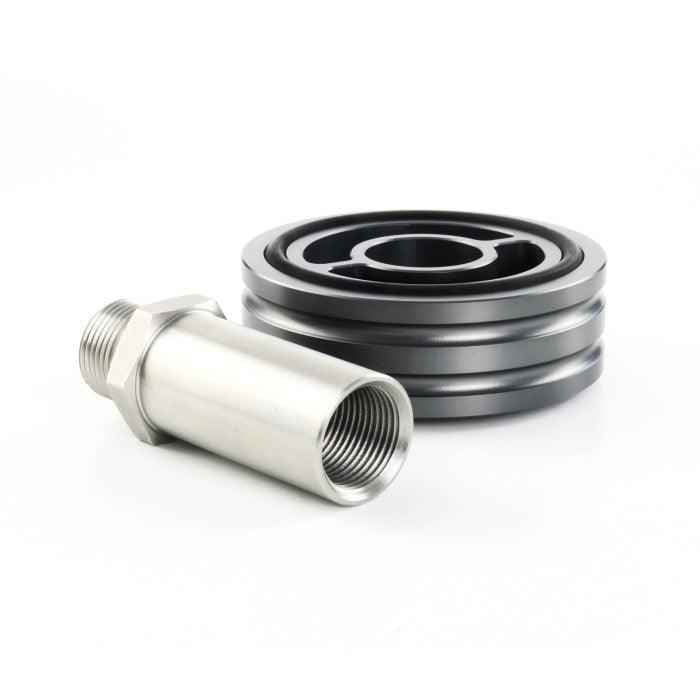

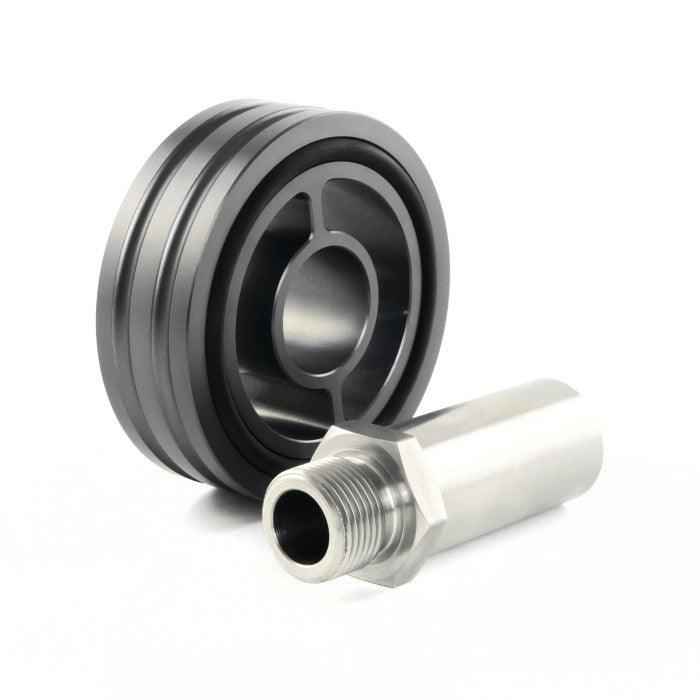

The HEL Performance oil filter sandwich plate spacer is directly compatible with all variations of our oil filter sandwich plates and has been designed for applications where the sandwich plate would directly foul on any protruding parts of the engine block, ancillaries or the original oil filter housing. An alternative version of this spacer is available with 2x 1/8" NPT threaded ports to allow the integration of an oil pressure sensor or oil temperature sensor.
If your oil system does not currently use an aftermarket oil cooler but you intend to use our standard oil filter spacer to solely move your oil filter away from the engine block, it is essential to select the standard center bolt option when purchasing. The extended centre bolt option is specifically designed for applications using an oil filter sandwich plate.
Designed as a universal product, our sandwich plate spacer can be mounted on various engine blocks. To determine if it's the right fit for your application, please refer to our technical drawings which can be found in the downloadable user manual.
Specifications
| Component Type | Oil Filter Sandwich Plate Spacer |
| External Diameter | 75mm / 2.95" |
| Thickness (Excl. O-Ring) | 24.6mm / 0.97" |
| Weight | 186g / 0.41lbs |
| Min. Oil Filter O-Ring Diameter | 52mm / 2.04" |
| Max. Oil Filter O-Ring Diameter | 75mm / 2.95" |
| Additional Ports | None |
| Centre Bolt Thread | M20 x 1.5 or 3/4"-16 UNF |
| Includes O-Ring? | Yes - Nitrile |
| Colour | 'HEL' Grey |
| Finish | Hard Anodised |
| Material | 6082-T6 Aluminium |
| Brand | HEL Performance |
What's Included
- 1x HEL Oil Filter Sandwich Plate Spacer
- 1x Threaded Centre Bolt (Selectable)
- 1x Nitrile O-Ring
