Product information
Tremec T56 clutch feed and bleed lines. Both are fully fire-sleeved with stainless steel fittings, bleed nipple and stainless braided hose. For ease of installation, the feed has a AN3 female swivel fitting to attach the remainder of your clutch line. The use of a remote bleed line eases clutch servicing due to greatly improved access and visibility.
For use with OEM-style LS7 slave cylinders (as in photos). Clutch feed line input is 3/8" x 24 UNF (AN3).
We offer an optional quick release dry break fitting to speed up dropping/installing the box in time sensitive situations, eliminating the need for re-bleeding. If you choose this option, you will need to spec up a custom line to come from the dry break.
SLAVE CYLINDER NOT INCLUDED.
Want to see behind the scenes?

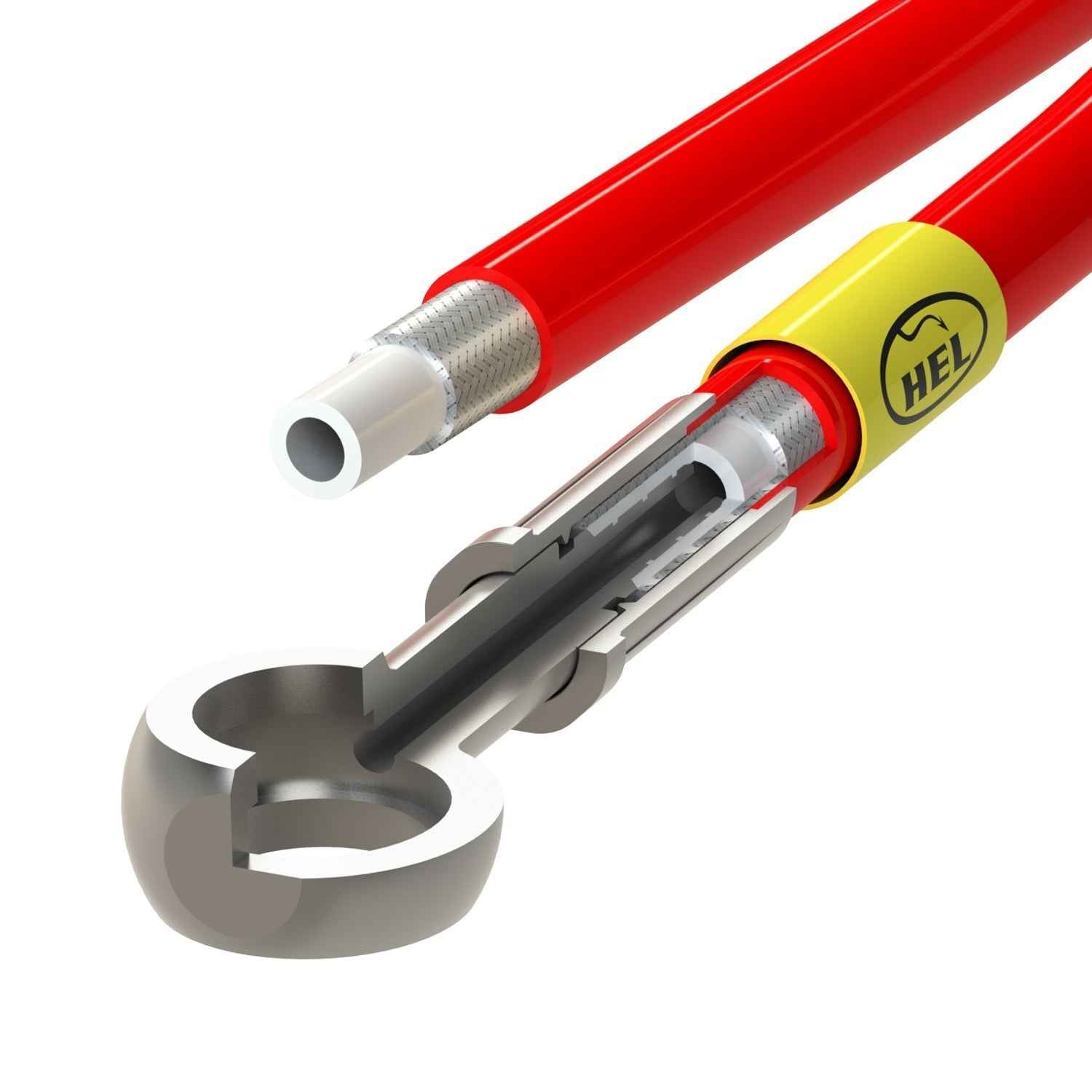

Take a look at the unique manufacturing and assembly process behind our flagship braided brake hoses.
Hose Specifications
| Internal Material (Core) | PTFE |
| Internal Material (Overbraid) | Stainless Steel - 303/304 |
| External Material (Outer) | PVC (Clear/Color) |
| Fitting Material (Hose End) | Stainless Steel - 303/304 |
| Internal Diameter | 3.5mm (0.13") |
| External Diameter | 7.5mm (0.29") |
| Minimum Bend Radius | 38.0mm (1.49") |
| Minimum Temperature | -70°C / -94°F |
| Maximum Temperature | 260°C / 500°F |
| Maximum Operating Pressure | 290 BAR / 4,206 PSI |
| Burst Pressure | 870 BAR / 12,618 PSI |
| Finish | Clear/Colored PVC |
| Brand | HEL Performance |
