Product information
Welcome to the HEL Performance range of high-quality, dependable and unrivaled oil system components. Our widely embraced, race-winning products have not only secured victories on the race track but have also been rigorously tested on the open road.
What sets us apart is simple yet significant; we handle the entire CNC machining process in-house for our complete range of oil system components. This gives us full control over the manufacturing process, leading to exceptional quality and faultless products. This commitment guarantees longevity and unwavering durability, even when used in the most demanding and challenging environments.

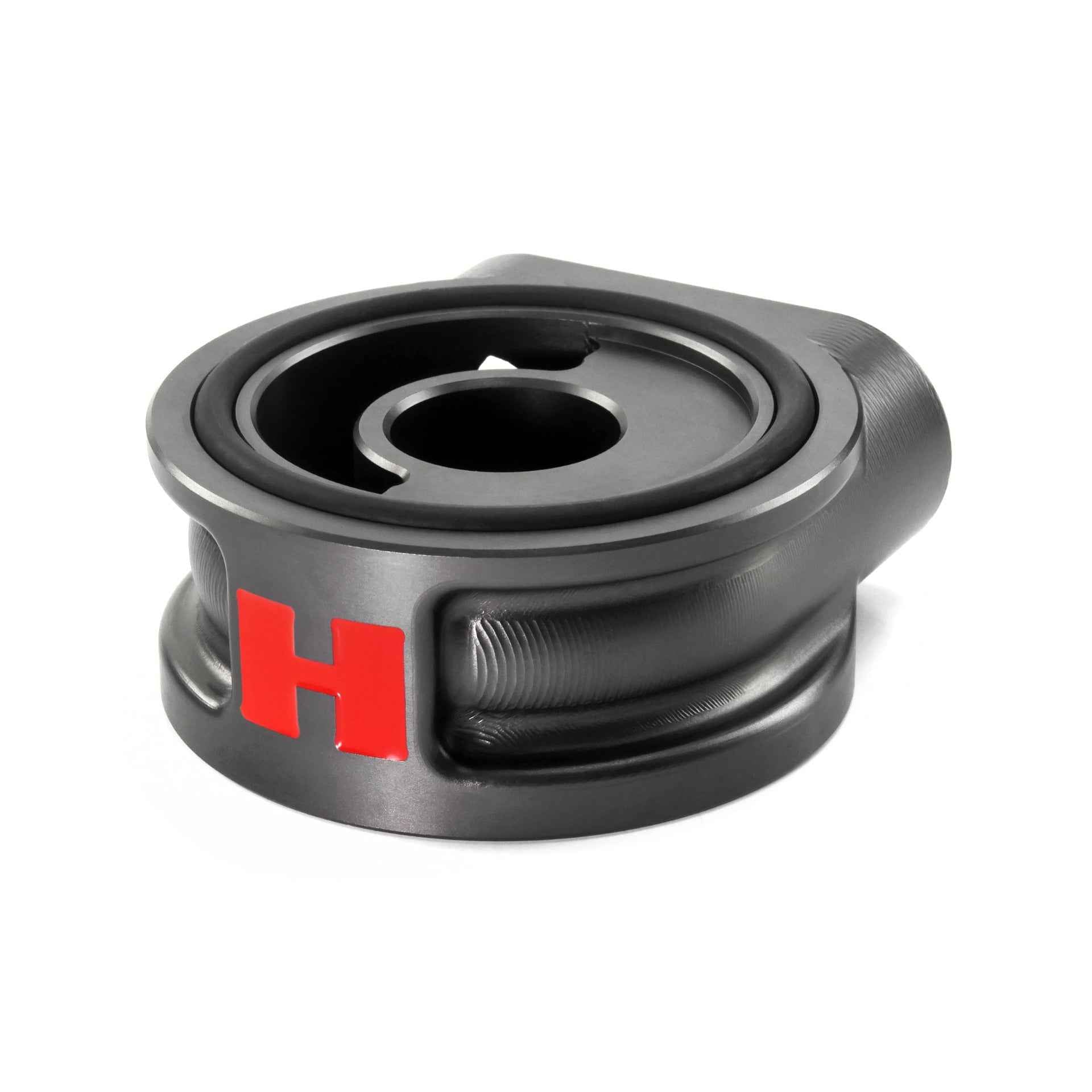

The HEL Performance non-thermostatic oil filter sandwich plate provides an oil feed/return for remote oil components such as an external oil cooler and is offered with a range of center bolt options to cater to your specific needs. This sandwich plate allows the unrestricted flow of oil to an external oil cooler throughout the period whilst the engine is running, resulting in a decrease of oil temperature as it circulates. Unlike our thermostatic sandwich plates, this non-thermostatic version has been designed for applications where oil temperature control is not necessary. External oil coolers are equipped with cooling fins and are often found with the addition of an electric fan to facilitate heat dissipation.

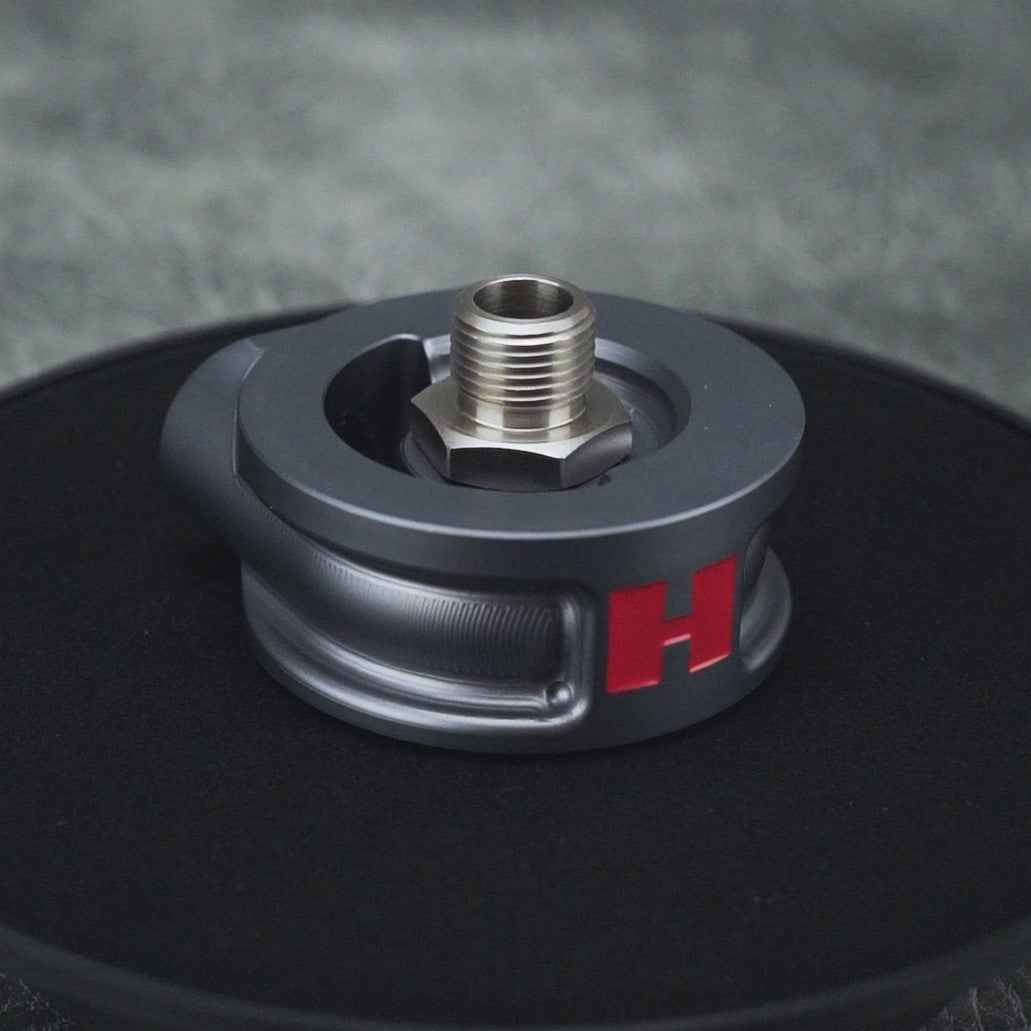

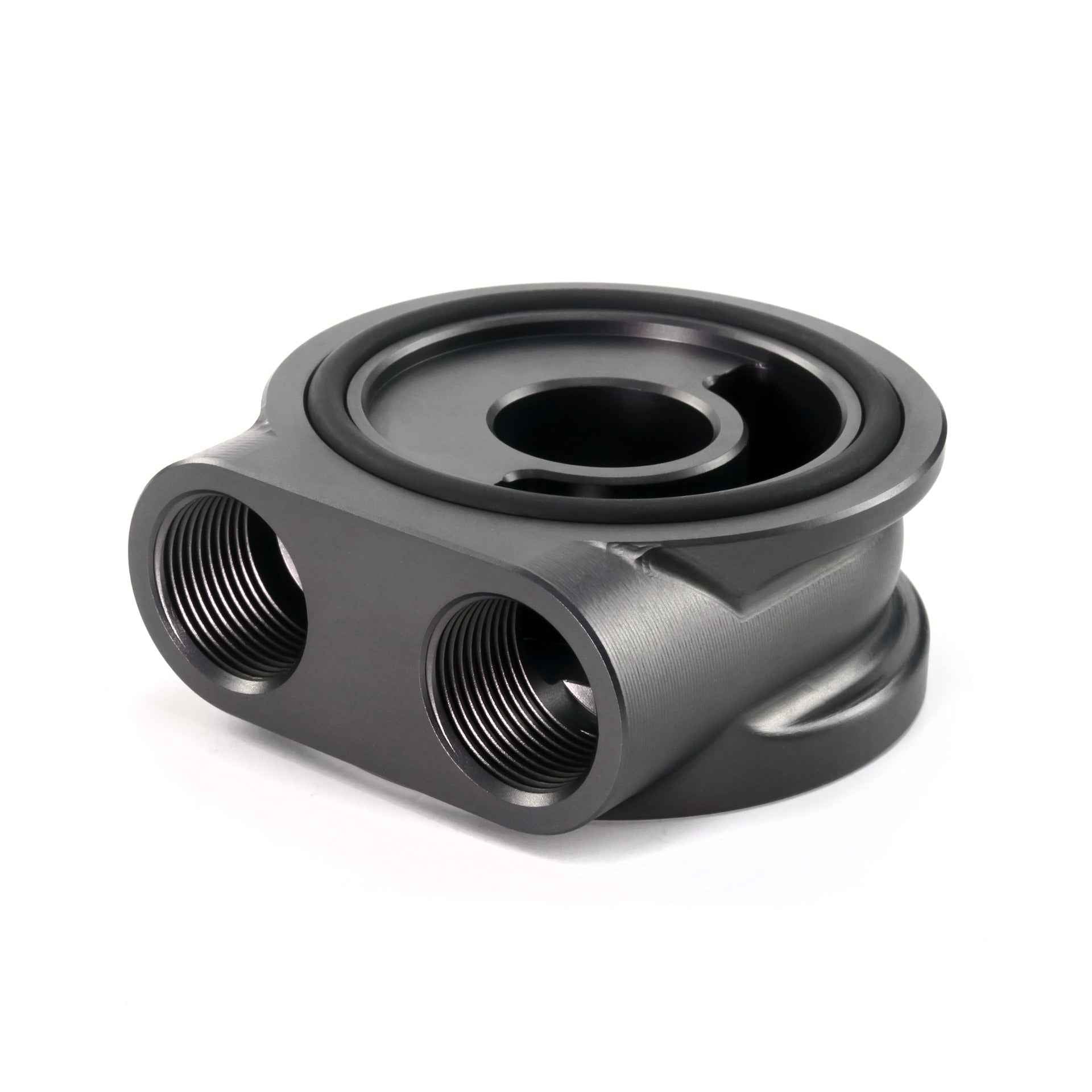

Our oil filter sandwich plates feature M22 x 1.5 threaded inlet and outlet ports and can be easily adapted with M22 x 1.5 to -8 (AN08) or -10 (AN10) male adapters, ensuring compatibility with a wide range of AN fittings, hose and adapters. The threaded center bolts are manufactured from high-quality stainless steel and are available in M20 x 1.5 or 3/4"-16 UNF sizes to accommodate most common spin-on oil filters.
Please see our range of thermostatic oil filter sandwich plates if you require the benefits of a built-in thermostat.
Designed as a universal product, our sandwich plate can be mounted on various engine blocks. To determine if it's the right fit for your application, please refer to our technical drawings which can be found in the downloadable user manual.
Specifications
| Component Type | Oil Filter Sandwich Plate |
| Includes Thermostatic Valve? | No |
| Length (Excl. Adapters) | 74mm / 2.91" |
| Width (Widest Point) | 87.3mm / 3.44" |
| Thickness (Excl. O-Ring) | 32mm / 1.26" |
| Weight (Excl. Adapters) | 225g / 0.50lbs |
| Min. Oil Filter O-Ring Diameter | 52mm / 2.04" |
| Max. Oil Filter O-Ring Diameter | 75mm / 2.95" |
| Inlet/Outlet Port Thread | M22 x 1.5 |
| Centre Bolt Thread | M20 x 1.00, M20 x 1.5 or 3/4"-16 UNF |
| Includes O-Ring? | Yes - Nitrile |
| Includes Sensor Port? | None |
| Color | 'HEL' Grey |
| Finish | Hard Anodized |
| Material | 6082-T6 Aluminium |
| Brand | HEL Performance |
Please see our range for replacement thermostats, o-rings and other spares.
What's Included
- 1x HEL Universal Non-Thermostatic Oil Filter Sandwich Plate
- 1x Threaded Centre Bolt
- 1x Nitrile O-Ring
