PS3300SE-2M Semi-Electric Pallet Stacker, 3300 lbs Capacity, 78" Lifting Height

• Fast and Free freight shipping to 48 contiguous states
• Deliver in 3-8 business days
• 2 year warranty

Introducing the PS3300SE-2M Semi-Electric Pallet Stacker by Sunmax, the ideal solution for efficient and safe material handling in various industrial settings.

Designed for short-distance stacking and transportation on flat surfaces, this stacker combines the convenience of electric operation with the power of hydraulic lifting.

With a 3300 lbs capacity and advanced features, the PS3300SE-2M ensures smooth, reliable performance and easy maintenance, making it a must-have for factories, warehouses, and workshops.

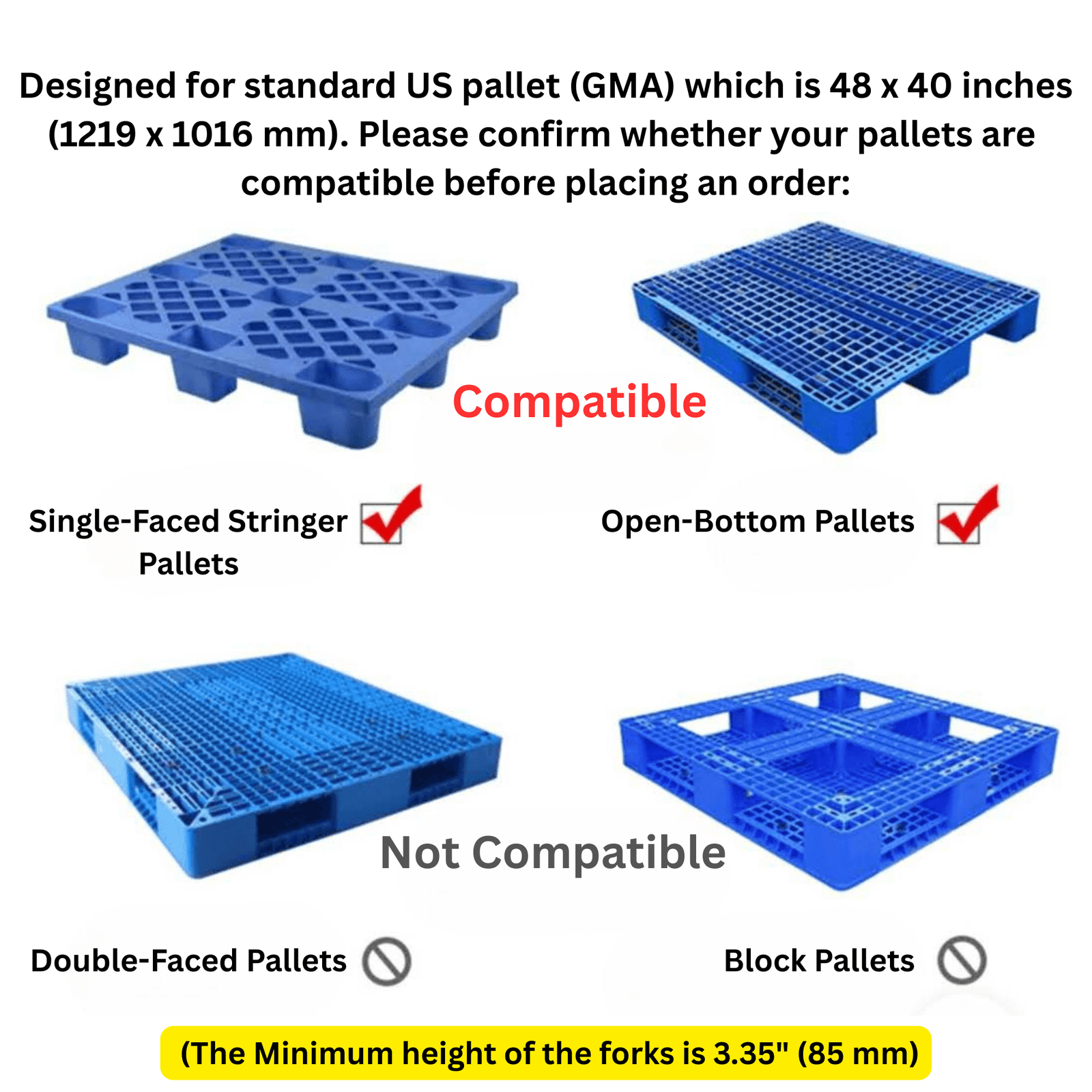

Please be noted the legs are non-adjustable so it is only suitable for open-bottom pallets.

Key Features

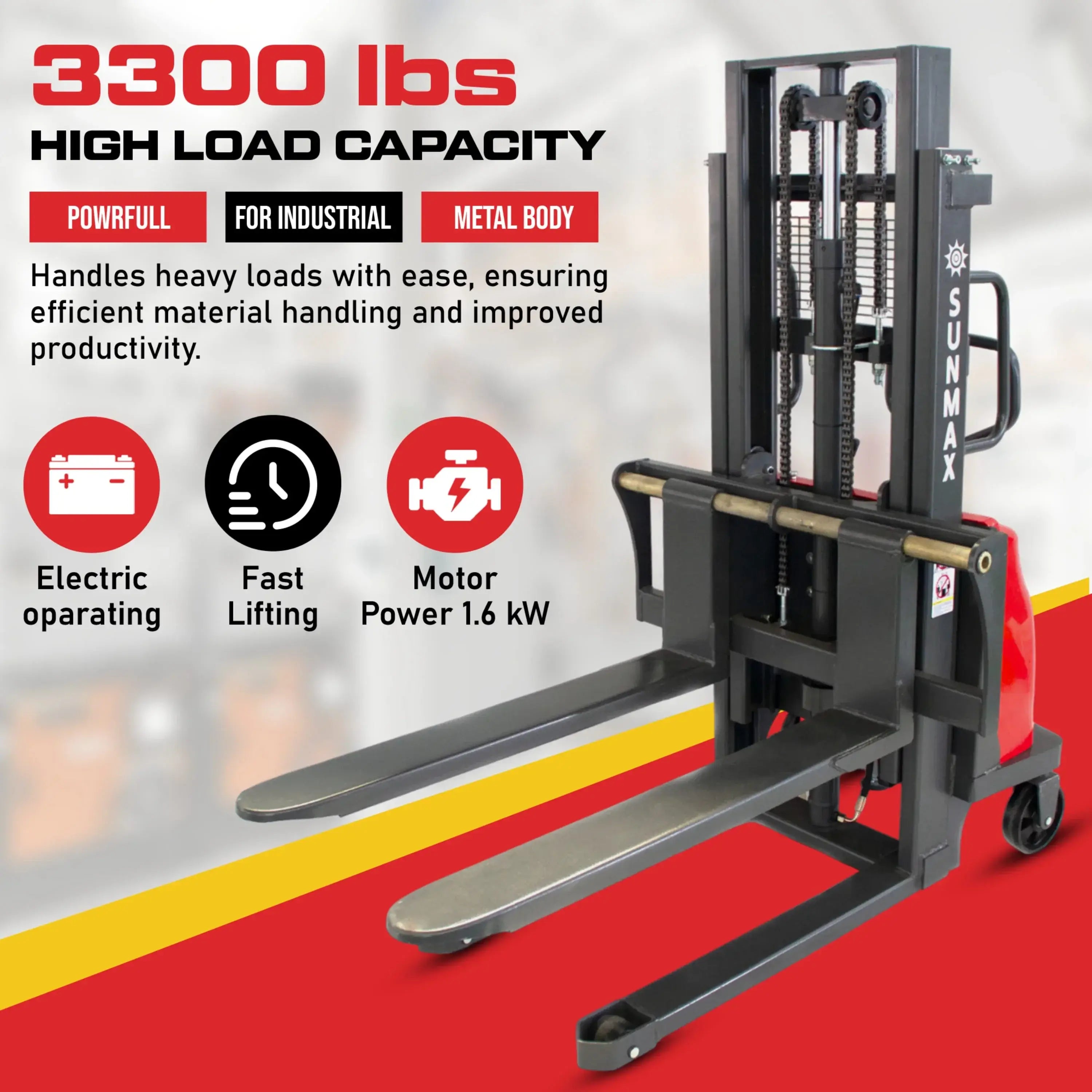

1. High Load Capacity:
   • 3300 lbs (1500 kg) Capacity: Handles heavy loads with ease, ensuring efficient material handling and improved productivity.

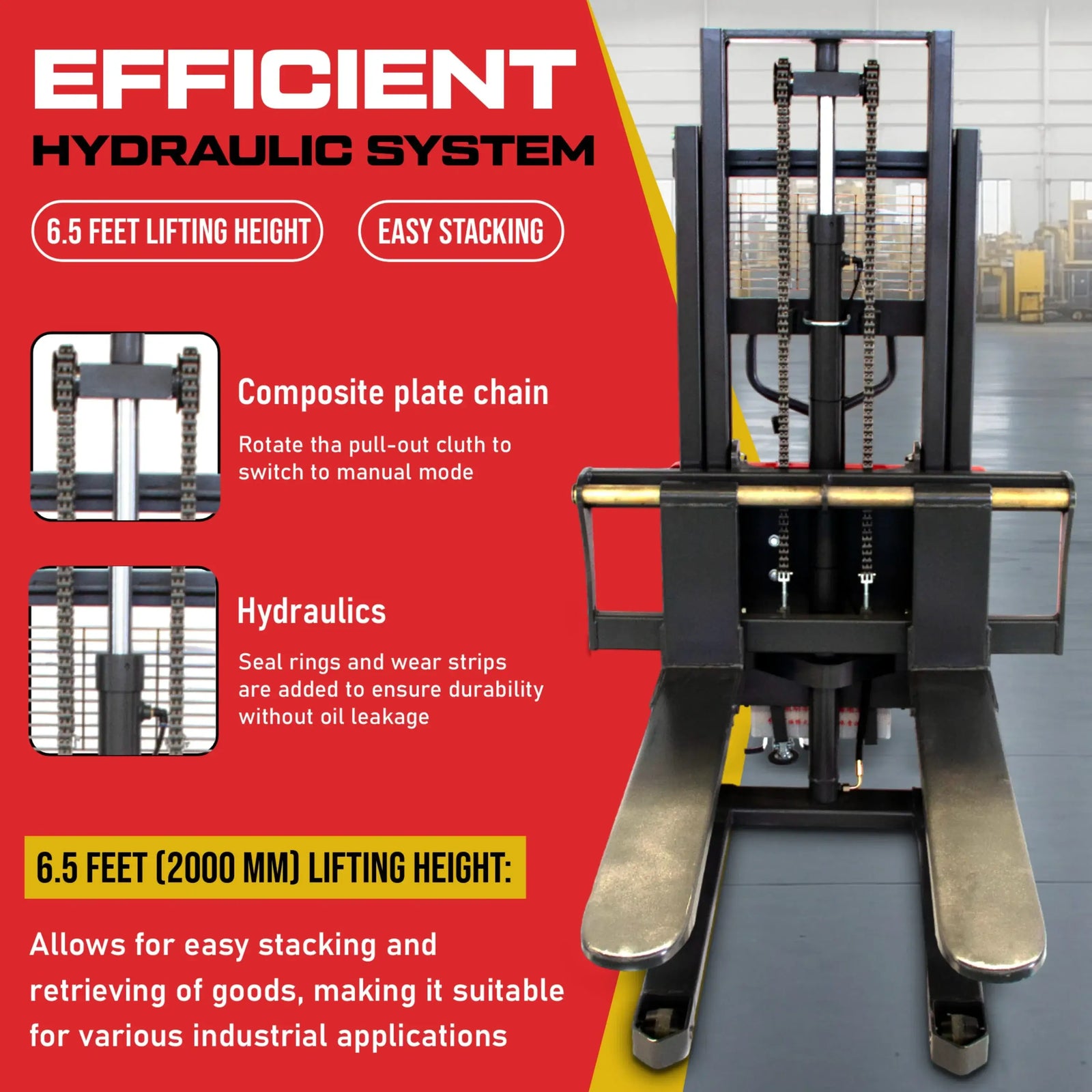

2. Efficient Hydraulic System:
   • 78" (2000 mm) Lifting Height: Allows for easy stacking and retrieving of goods, making it suitable for various industrial applications.

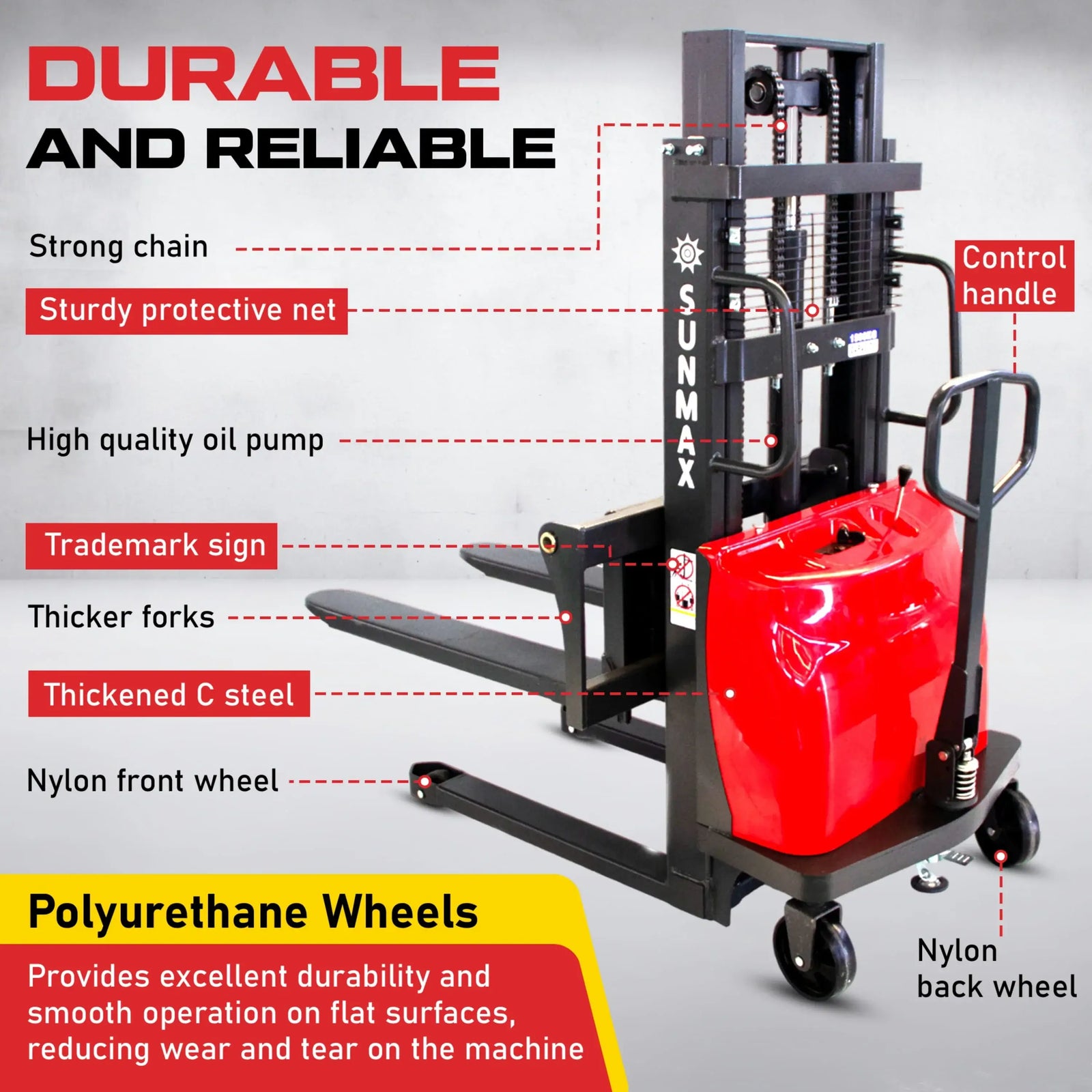

3. Durable and Reliable:
   • Polyurethane Wheels: Provides excellent durability and smooth operation on flat surfaces, reducing wear and tear on the machine.

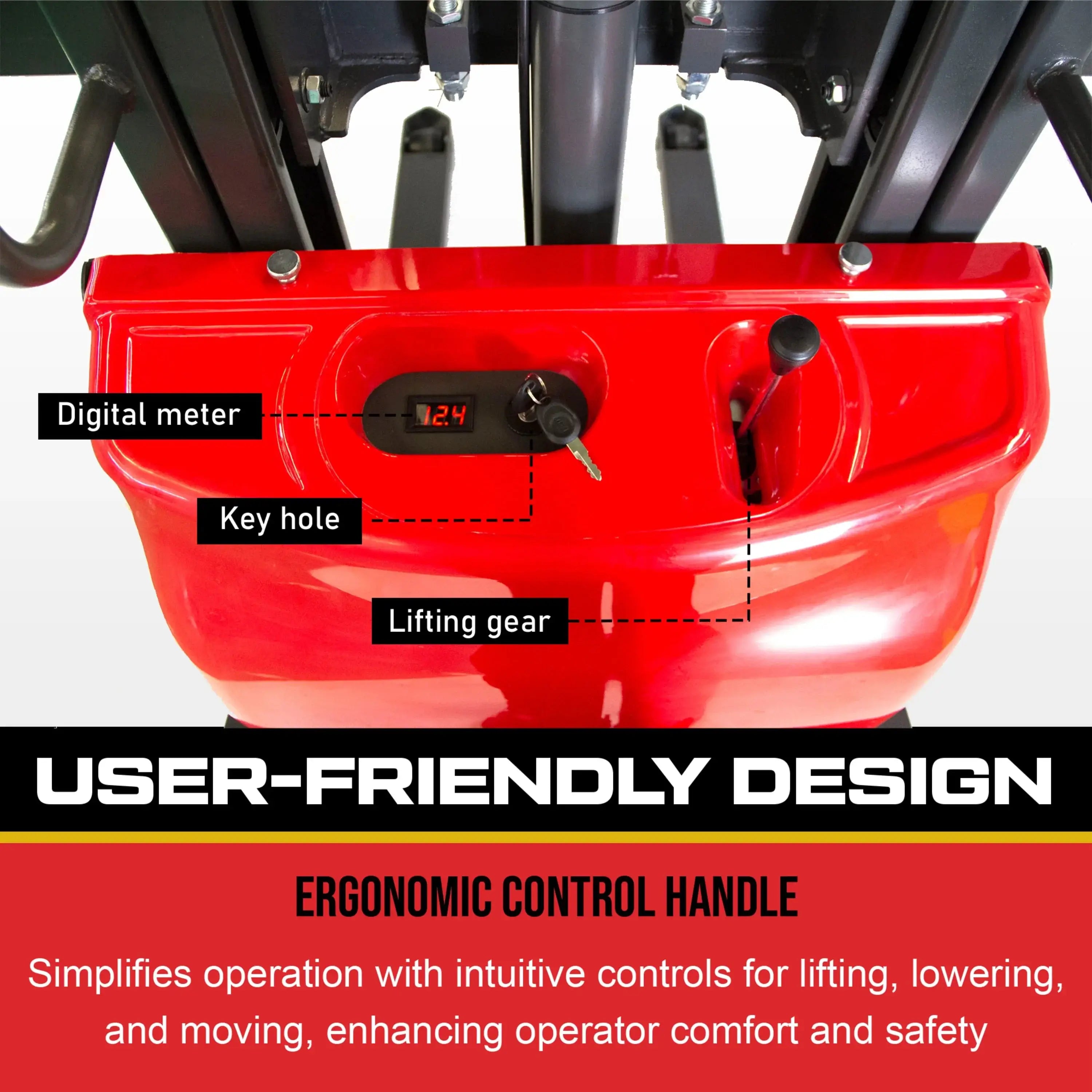

4. User-Friendly Design:
   • Ergonomic Control Handle: Simplifies operation with intuitive controls for lifting, lowering, and moving, enhancing operator comfort and safety.

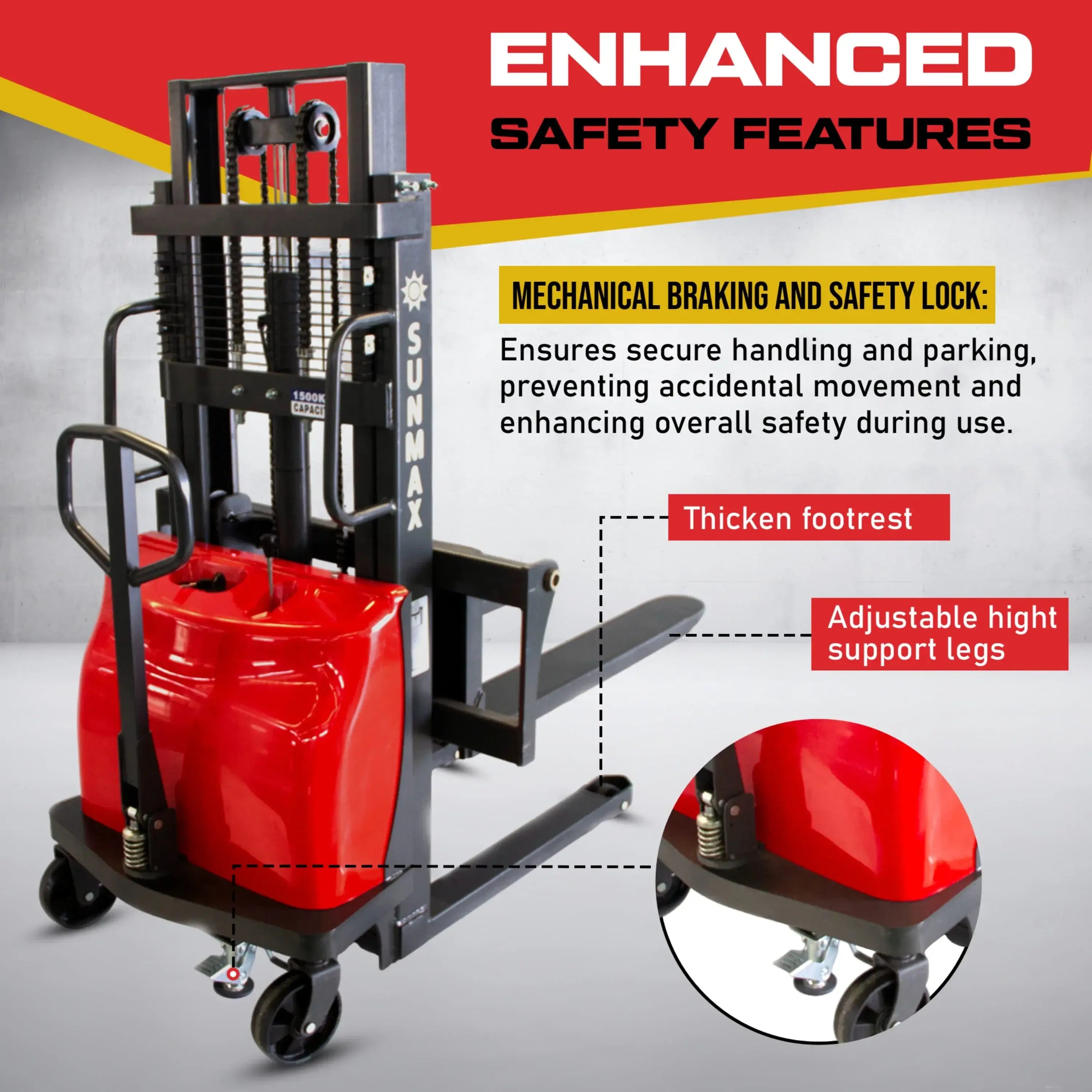

5. Enhanced Safety Features:
   • Mechanical Braking and Safety Lock: Ensures secure handling and parking, preventing accidental movement and enhancing overall safety during use.

Technical Specifications

• Fork Size: 2.4 x 6.7 x 42.1 inches (60 x 170 x 1070 mm)
• Driving Mode: Electric (Battery)

• Rated Load: 3300 lbs (1500 kg)

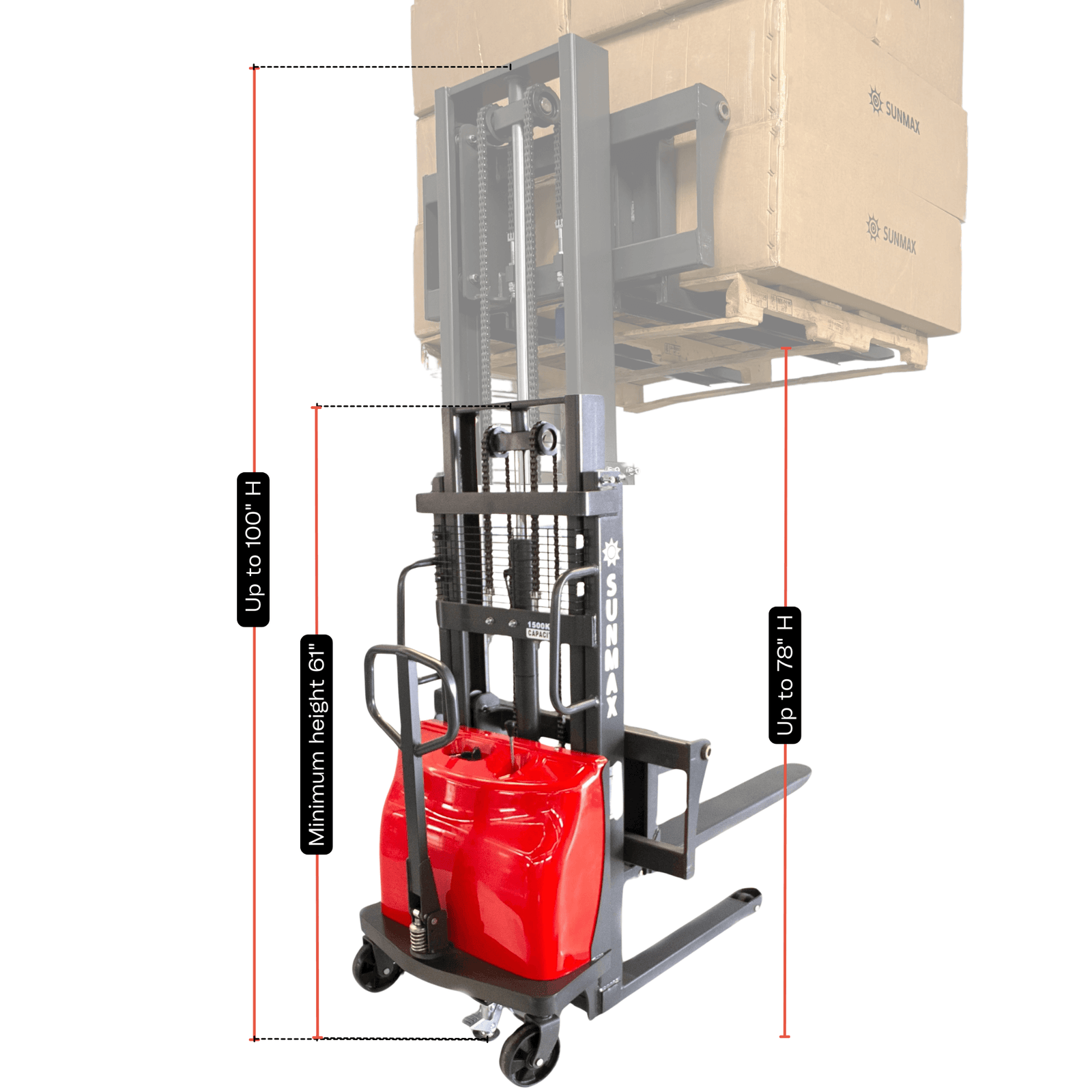

• Highest Forks Lifting Height: 78" (2000 mm)
• Lowest Fork Height: 3.15 inches (80 mm)
• Load Center Distance: 19.7 inches (500 mm)
• Ground Clearance: 1.18 inches (30 mm)

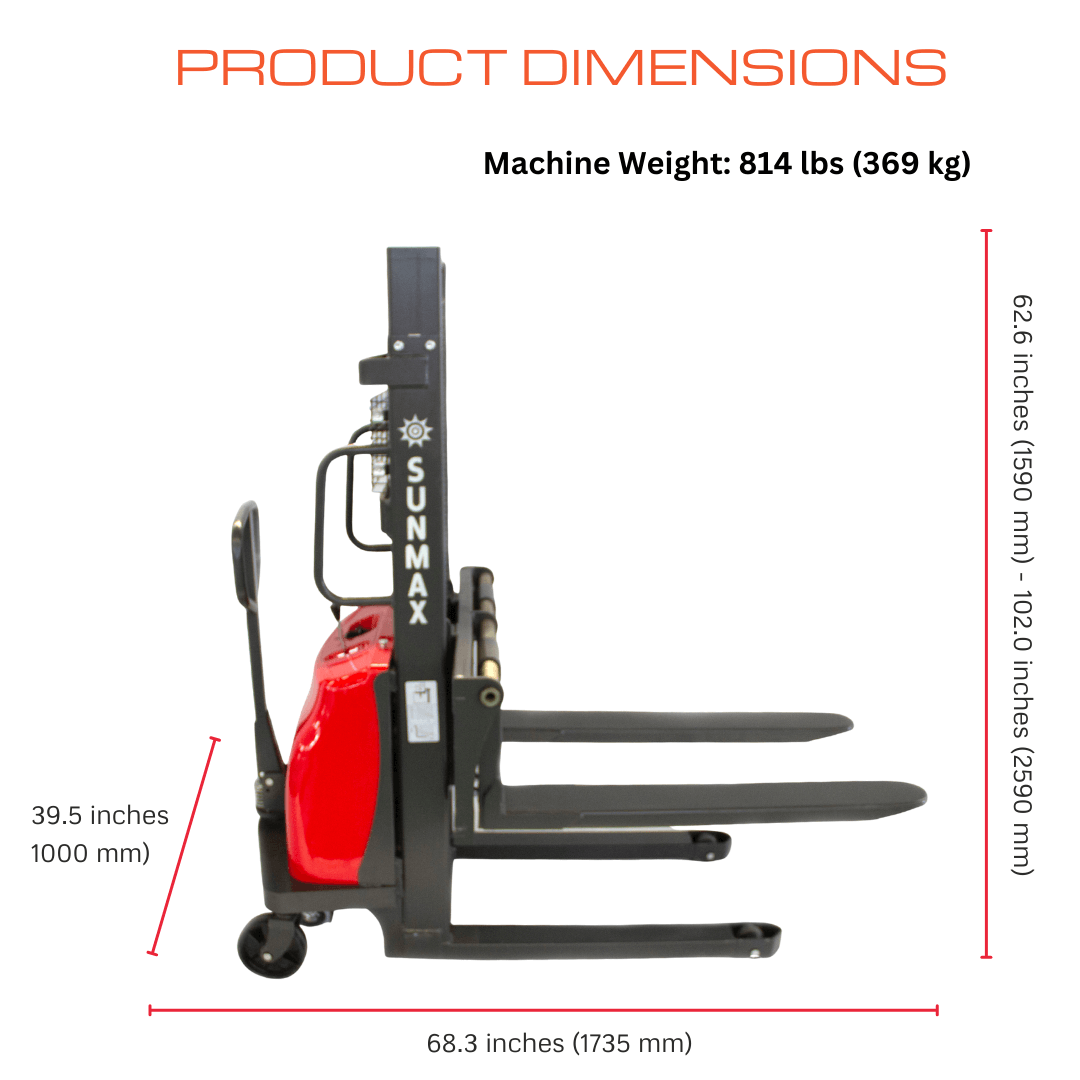

• Body Width: 39.5 inches (1000 mm)

• Turning Radius: 56.1 inches (1425 mm)
• Axle Load (full load, front/rear): 1347/2907 lbs (611/1319 kg)

• Axle Load (no load, front/rear): 717/231 lbs (325/105 kg)
• Lifting Speed (full/no load): 0.26/0.33 ft/s (0.08/0.1 m/s)

• Descending Speed (full/no load): 0.49/0.39 ft/s (0.15/0.12 m/s)

• Service Braking: Mechanical Braking

• Motor Power: 1.6 kW
• Battery Voltage/Capacity: 12V/100Ah
• Charger: 12V/10A
• Charging Time: 8-10 hours
• Continuous Running Time: 6-8 hours (Lifting-Only Run Time)

❗️Real-world factors that reduce runtime:

• Frequent lifting of heavy loads
• Rough floor surfaces
• Cold warehouse environments
• Poor battery maintenance

Attention: This is standard pallet stackers and should NOT be used on a sloped driveway; they are designed for flat, level surfaces and can be dangerous to use on inclines. Operating a pallet stacker on a slope risks tipping, loss of control, or damage due to insufficient braking, uneven surfaces, and improper load distribution. For sloped areas, specialized equipment like all-terrain pallet jacks or forklift with strong frames and large wheels are a safer option.
