Product information

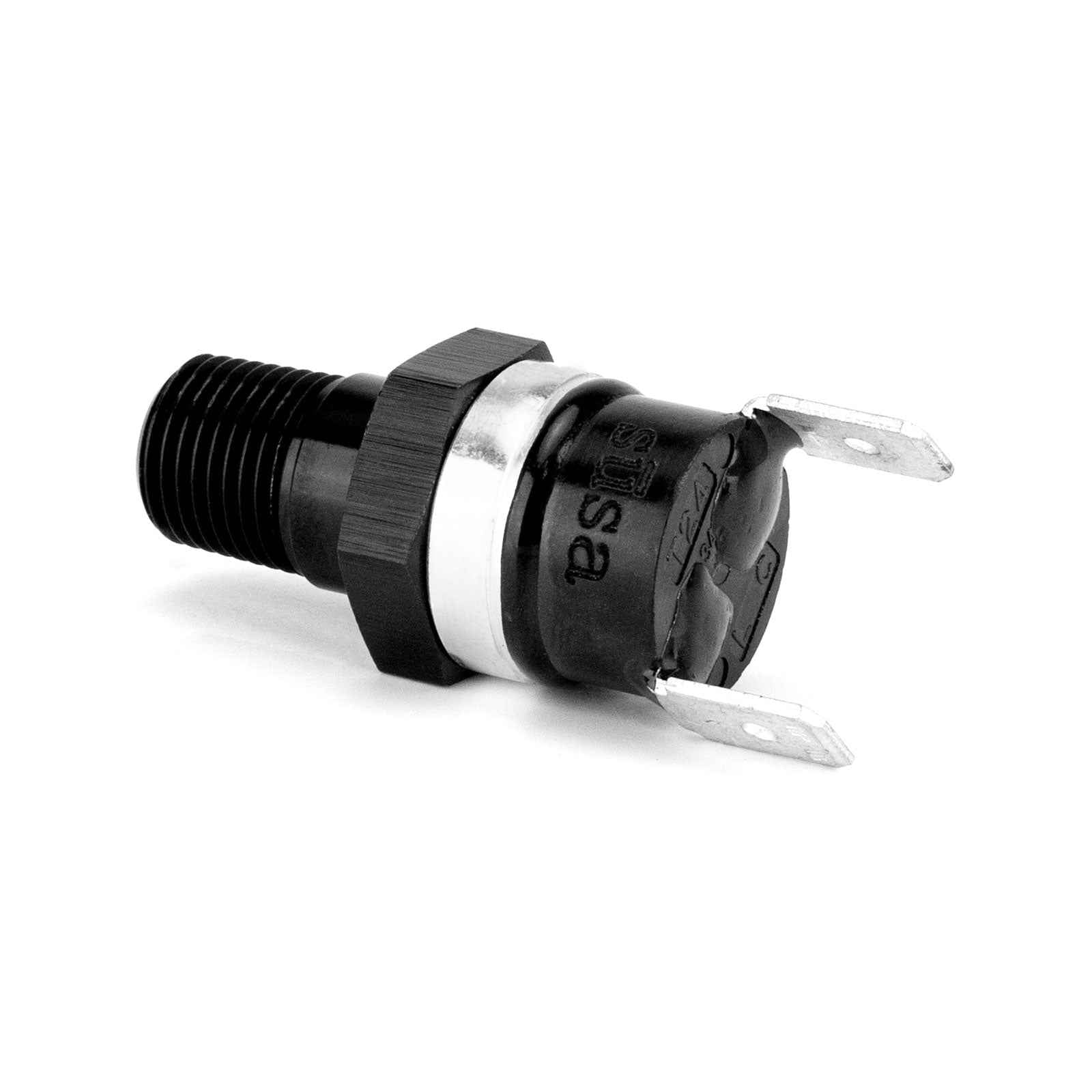

Designed for integration in any automotive oil or coolant system that features a 1/8" NPT threaded port (female), such as an inline port adapter or a threaded female port. This thermal switch activates a 12-volt accessory such as an oil pump, or cooling fan relay when the fluid reaches the prescribed temperature. Three temperature options are available: 82°C (180°F), 88°C (190°F) and 93°C (200°F), to suit all requirements and applications.
*Please note this thermal switch must not be wired directly to an electric fan, or oil pump and must only be used to trigger the relay as it is not rated for excessive current draw.
This product listing is for an individual thermal switch. If you require an inline port adapter, please see our alternative listing which offers the option to select from a range of inline port adapter thread sizes and configurations.
Switch Temperature Options
| SKU: | #TS180 | #TS190 | #TS200 |
| Activation Temperature (Preset) | 82°C (180°F) | 88°C (190°F) | 93°C (200°F) |
| Automatic Reset Temperature | 74°C (165°F) | 80°C (175°F) | 85°C (185°F) |
Specifications
| Component Type | Thermal Sensor/Switch |
| Contact Type | Normally Open |
| Thread Size | 1/8" NPT (Male) |
| Includes Inline Port Adapter? | No, see alternative listing if required |
| Activation & Reset Temp. Tolerance | +/- 2°C (+/- 3.6°F) |
| Terminal Size (2) | Amp #250 Tab (1/4") |
| Circuit Resistance | 50mΩ Maximum |
| Insulation Resistance | 100MΩ Minimum @ DC 500V |
| Dielectric Strength | AC 1250V (1 Minute) or AC 1800V (3 Seconds) |
| Electrical Rating | 16A 250VAC / 15A 125VAC / 10A 250VAC (Resistive Load) |
| Brand | Setrab USA |
What's Included
- 1x Thermal Switch Only
