DJI Matrice 400 Third Gimbal Connector

DJI Matrice 400 Third Gimbal Connector: Enterprise Payload Expansion

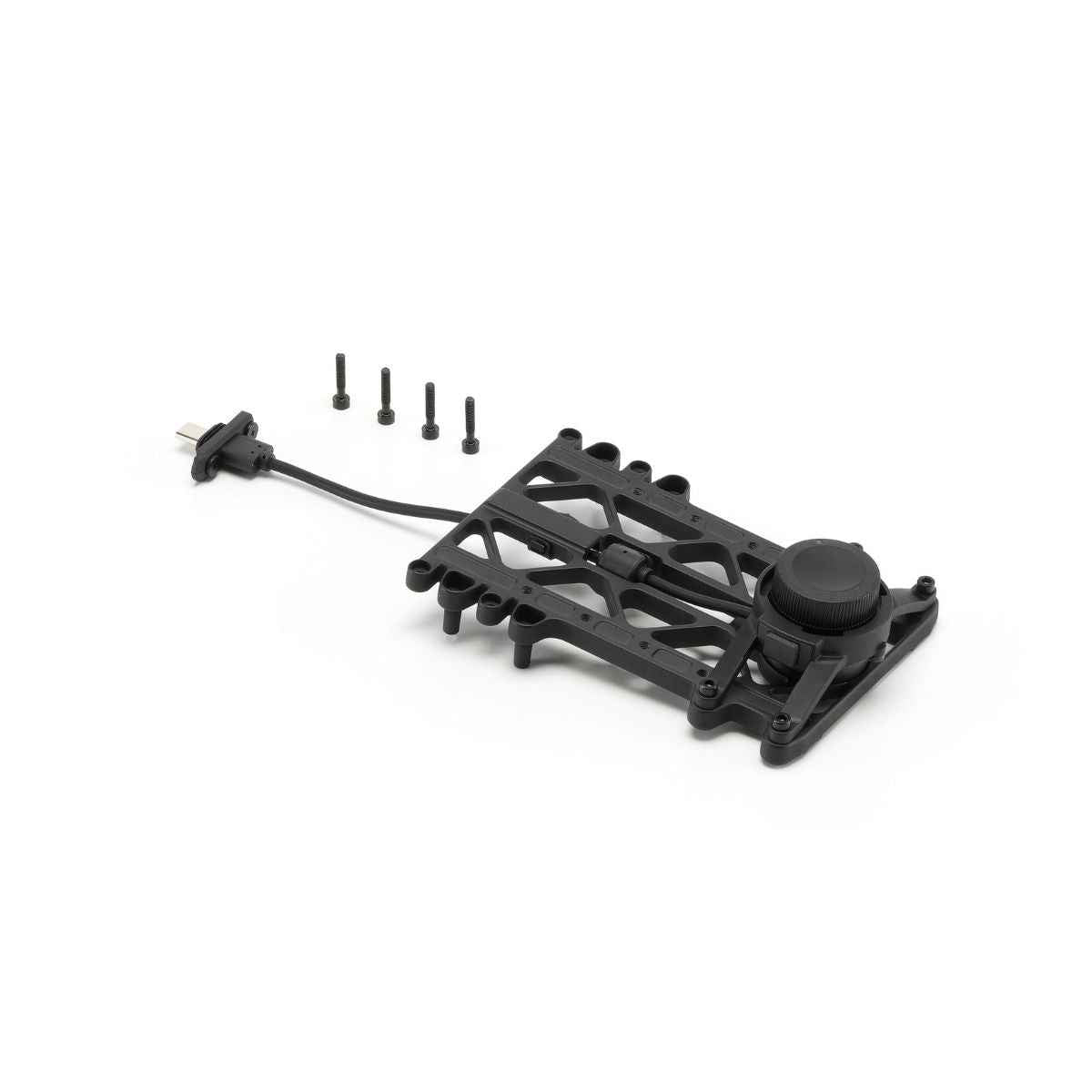

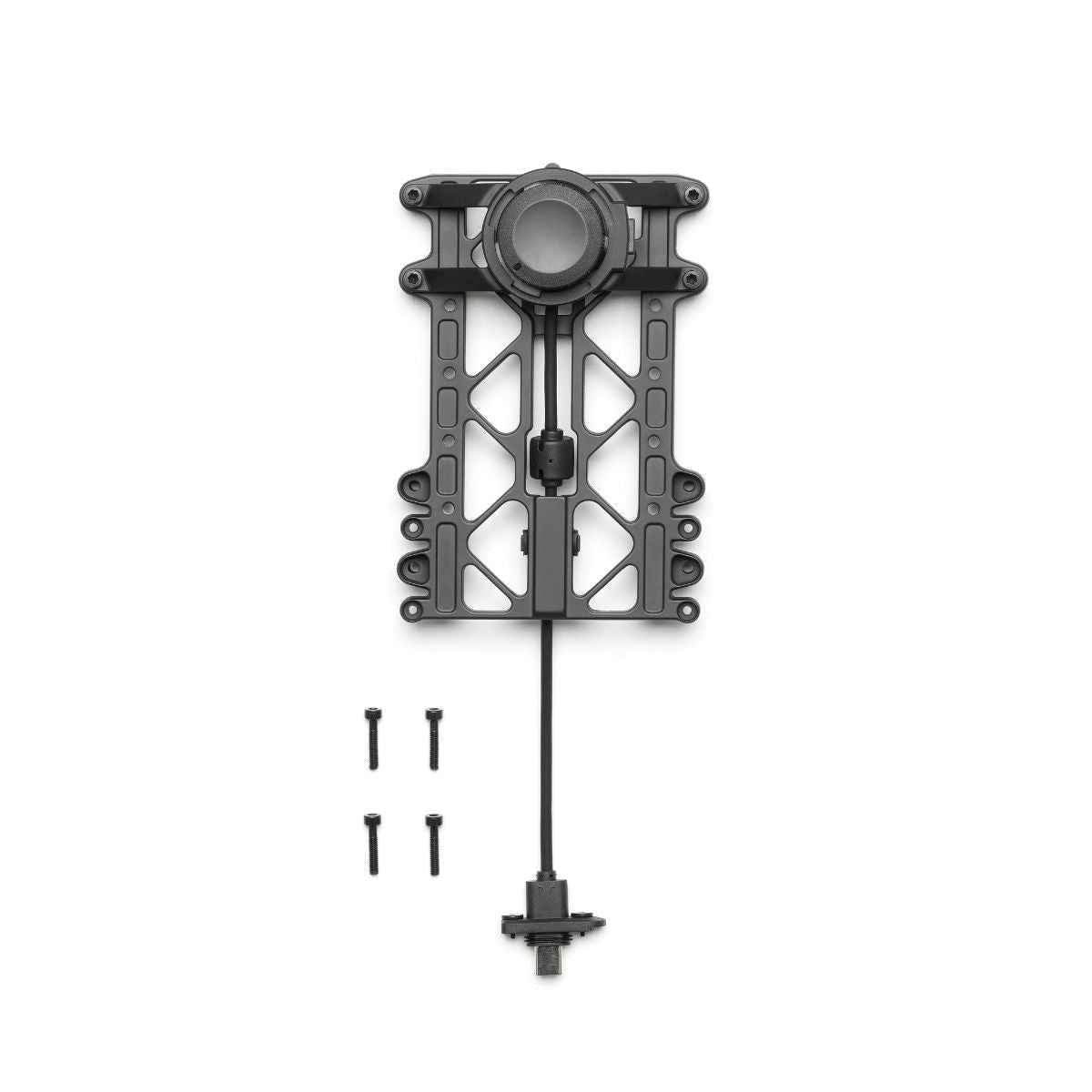

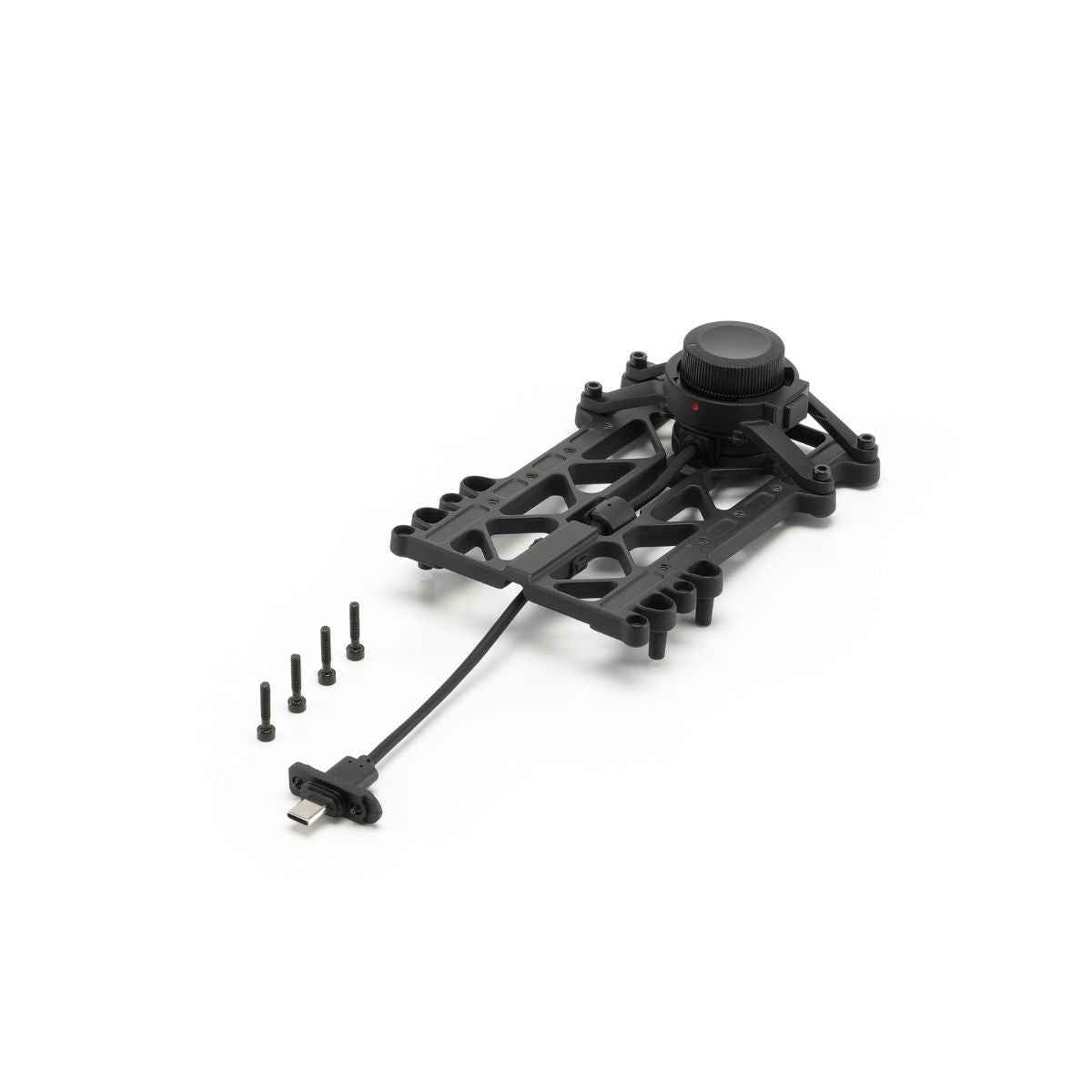

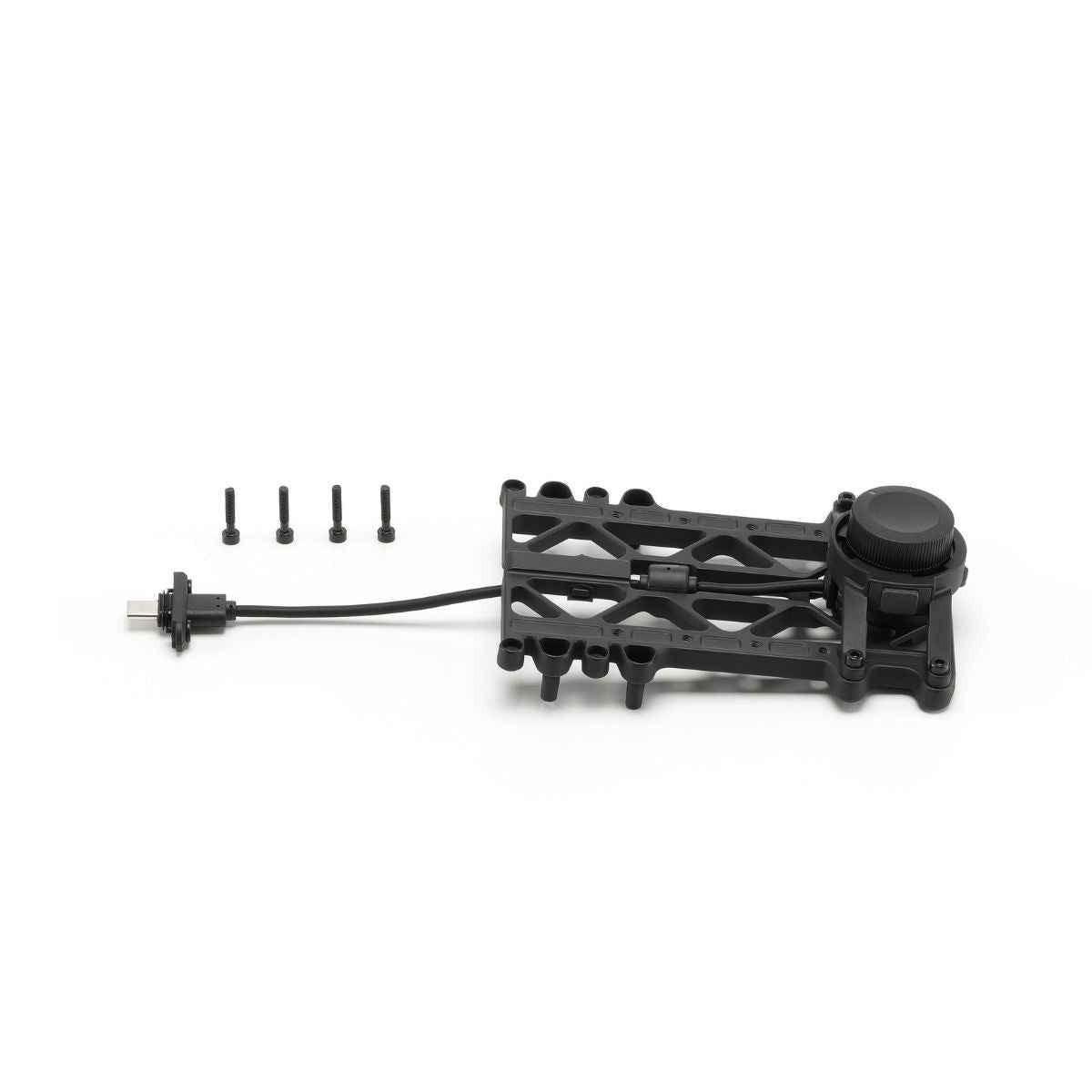

The DJI Matrice 400 Third Gimbal Connector is a heavy-duty integration component designed to maximize the multi-sensor capabilities of the M400 platform. By utilizing the E3 or E4 ports of the E-Port V2, this connector allows operators to mount an additional downward-facing payload to the underside of the aircraft. It provides the structural and electronic interface necessary for high-capacity sensors, featuring built-in gyroscopic stabilization to maintain data integrity. This expansion is essential for complex industrial missions requiring simultaneous data capture from multiple specialized sensors, such as combined LiDAR, thermal, and high-resolution RGB mapping.

DJI Matrice 400 Third Gimbal Connector core features and advantages

• Triple payload capacity: enables the simultaneous operation of three downward-facing stabilized sensors.
• High-weight support: accommodates quick-release payloads up to 6.6 lbs (3 kg) for rapid swaps.
• Secure fastening: supports heavy-duty payloads up to 13.2 lbs (6 kg) via screw-lock mounting.
• Advanced stabilization: integrated gyroscopic systems keep the third payload level during flight.
• Port integration: connects directly to the E3 or E4 ports of the E-Port V2 system.
• Industrial protection: maintains environmental sealing based on the IP rating of the attached payload.
• Precision hardware: includes four M3 screws for a rigid and vibration-resistant connection.
• Versatile applications: supports search and rescue, complex surveying, and multi-angle industrial inspections.
• Seamless ecosystem: designed for full electronic compatibility with DJI Enterprise flight control software.

The DJI Matrice 400 Third Gimbal Connector is the definitive solution for operators who require maximum sensor density in a single flight. It eliminates the need for multiple passes by allowing for a fully customized, three-sensor downward configuration. This component ensures that even the heaviest specialized sensors remain secure and stabilized throughout intensive field operations.

DSLRPros provides the technical expertise to help you configure your Matrice 400 for maximum operational efficiency. We ensure your payload lifecycle is supported with the correct hardware for complex, multi-sensor industrial missions. Expand your aerial data collection capabilities today by purchasing the DJI Matrice 400 Third Gimbal Connector from DSLRPros.
