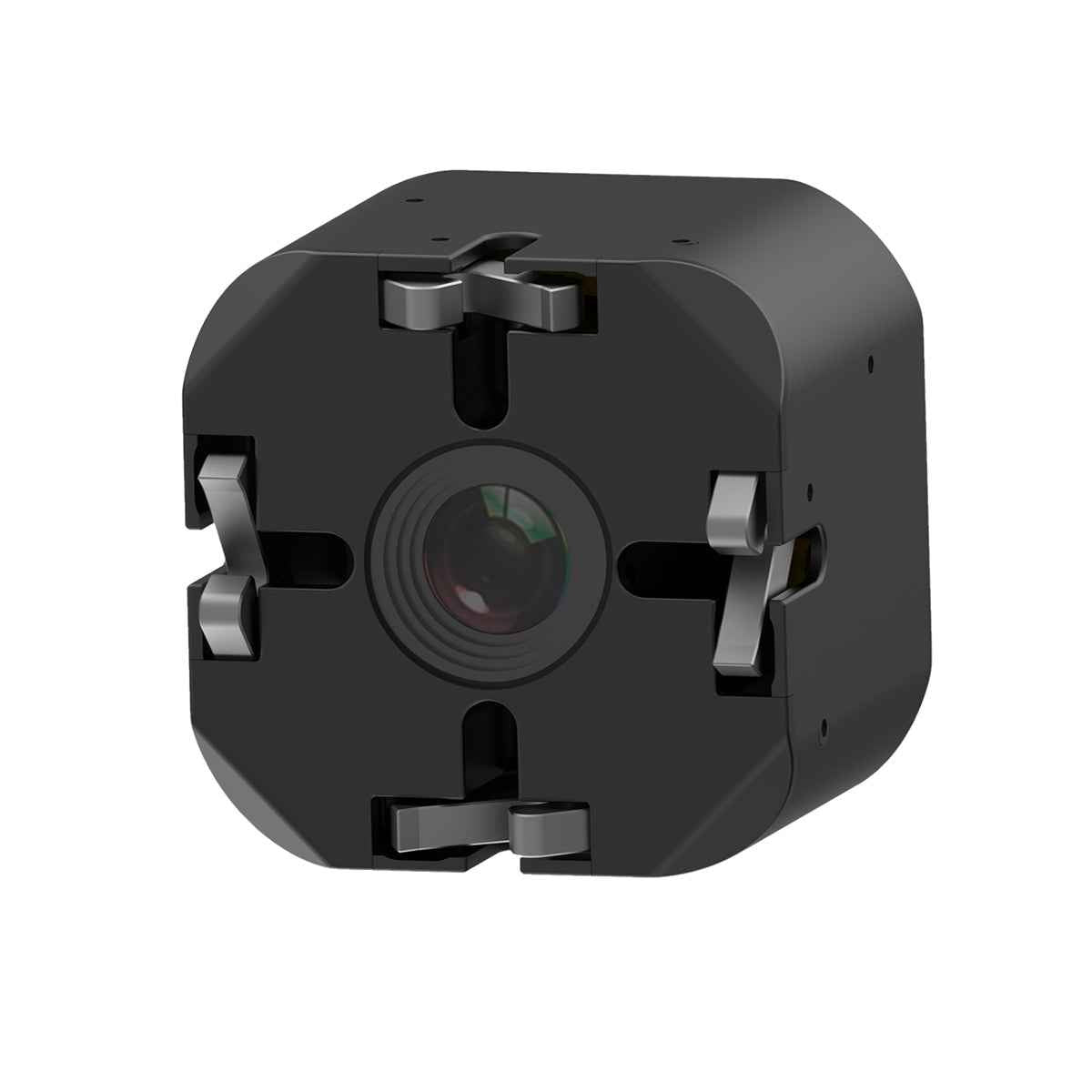

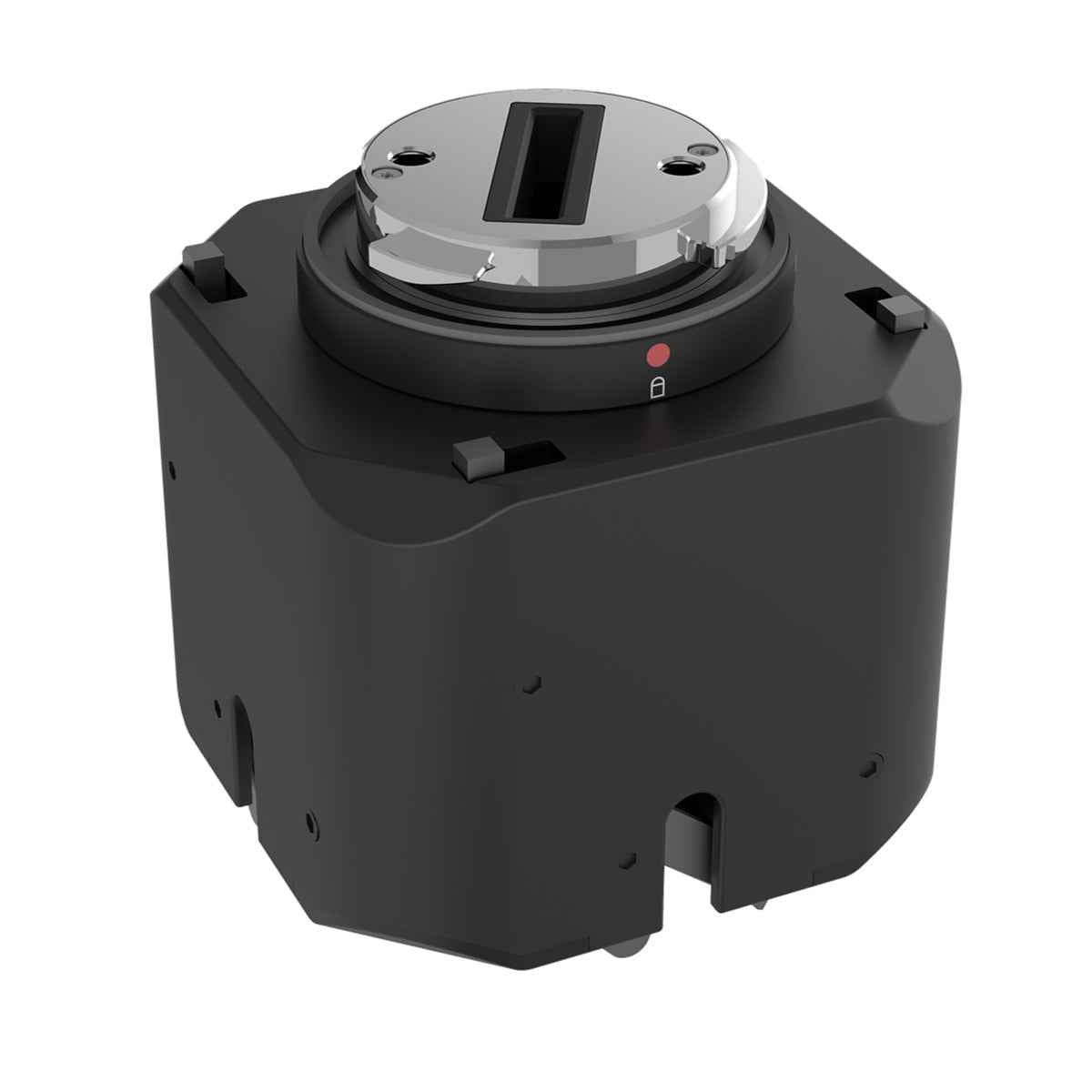

JZ Drones PTS4 Visual Drop Kit for M300/M350/M400

JZ Drones PTS4 Visual Drop Kit for Matrice Series: Multi-Hook Visual Payload Delivery System for Precision Airdrop Operations

The JZ Drones PTS4 Visual Drop Kit is a DJI PSDK-based aerial payload delivery system designed for controlled, repeatable deployment of mission-critical items using DJI Matrice platforms, including the Matrice 300 RTK, Matrice 350 RTK, and Matrice 400. It mounts through the DJI SkyPort V2 interface and integrates directly with the DJI Pilot 2 app, allowing operators to monitor payload status and control release in real time.

The system is used in search and rescue, emergency response, and industrial operations where accurate aerial delivery is required. With four independent hooks and an integrated 1080P camera, operators can visually confirm target locations and execute precise multi-point payload drops during a single flight, improving efficiency and operational control.

Key Features and Benefits

• Four-hook system: supports 4 independent mounts for multi-point payload deployment
• Integrated camera: delivers 1920×1080 HD video for real-time targeting confirmation
• Payload capacity: supports up to 5 kg (11.02 lbs) per mount
• Total capacity: carries up to 20 kg (44.09 lbs) combined payload weight
• SkyPort V2 interface: enables fast mounting with secure electrical connection
• Pilot 2 integration: displays real-time hook status and release controls
• One-key release: deploys all payloads simultaneously with single command input
• Lightweight design: weighs 135 g (4.76 oz) minimizing aircraft payload impact
• Alloy construction: full-metal structure improves durability and mounting stability

Applications and Use Cases

• Search and rescue: delivers medical supplies or flotation devices to stranded individuals
• Fire response: deploys fire suppression payloads into targeted hazard zones safely
• Emergency logistics: transports food and medicine to remote or inaccessible areas
• Utility operations: supports line deployment or placement of lightweight field equipment
• Disaster response: enables rapid distribution of aid across affected regions
• Industrial delivery: releases tools or materials during controlled onsite operations

The PTS4 provides a controlled and repeatable method for aerial payload deployment in high-risk or time-sensitive missions. Its multi-hook architecture, real-time visual feedback, and direct DJI integration support consistent execution across varied operational scenarios.

With DSLRPros, you gain access to field-proven UAV systems backed by deep enterprise experience and operational insight. Every solution is validated for real-world deployment—order the PTS4 from DSLRPros today.
