Product information
Summary

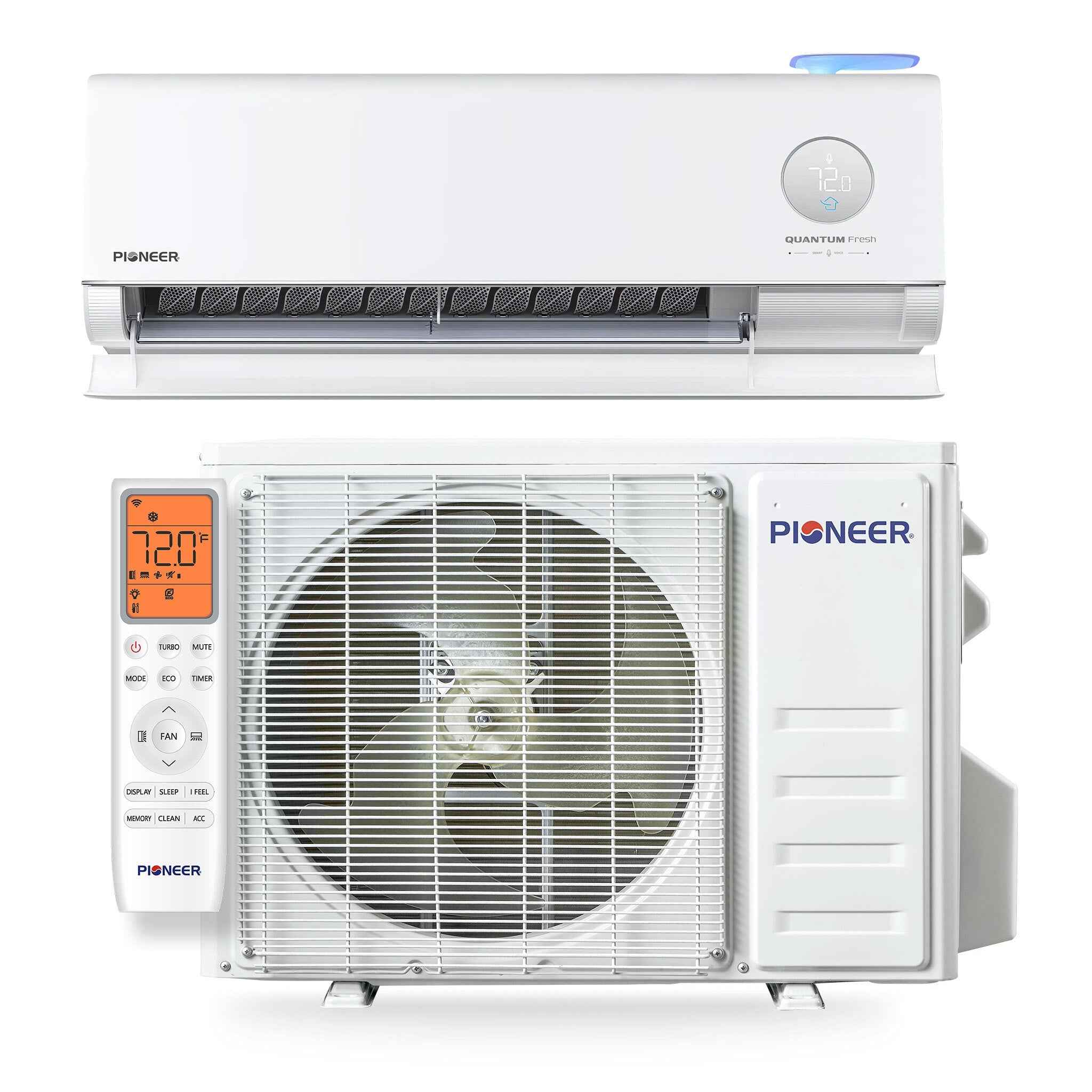

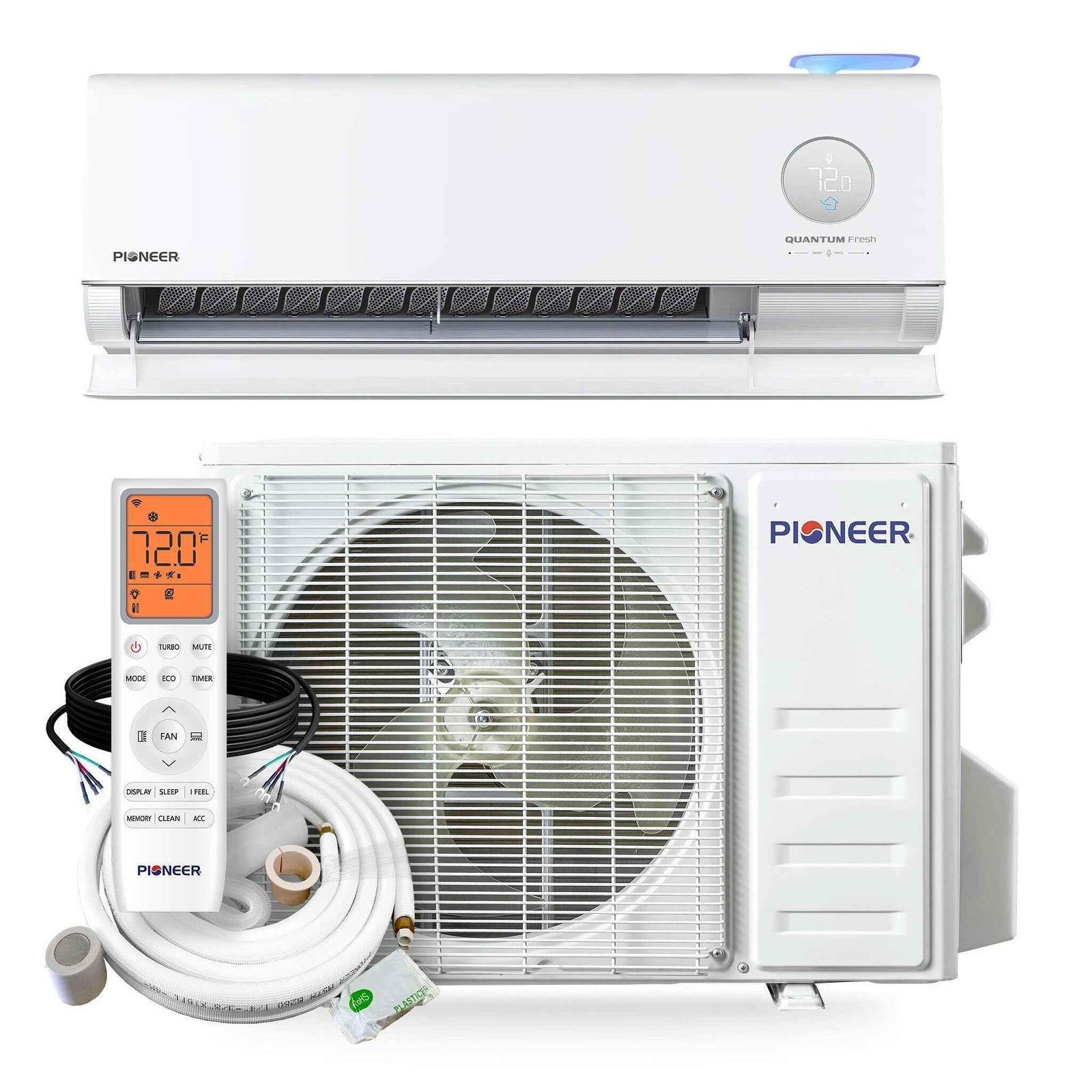

- High Efficiency Quantum Fresh Ductless Mini Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 24 SEER2 / 13 EER2 efficiency
- Heating capacity: 13,100 BTU/H with 9.5 HSPF2 / 4.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R32 Refrigerant
- Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Fresh Air Infusion System - Brings in, Filters, and Mixes Outdoor Air to Replenish Indoor Oxygen
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

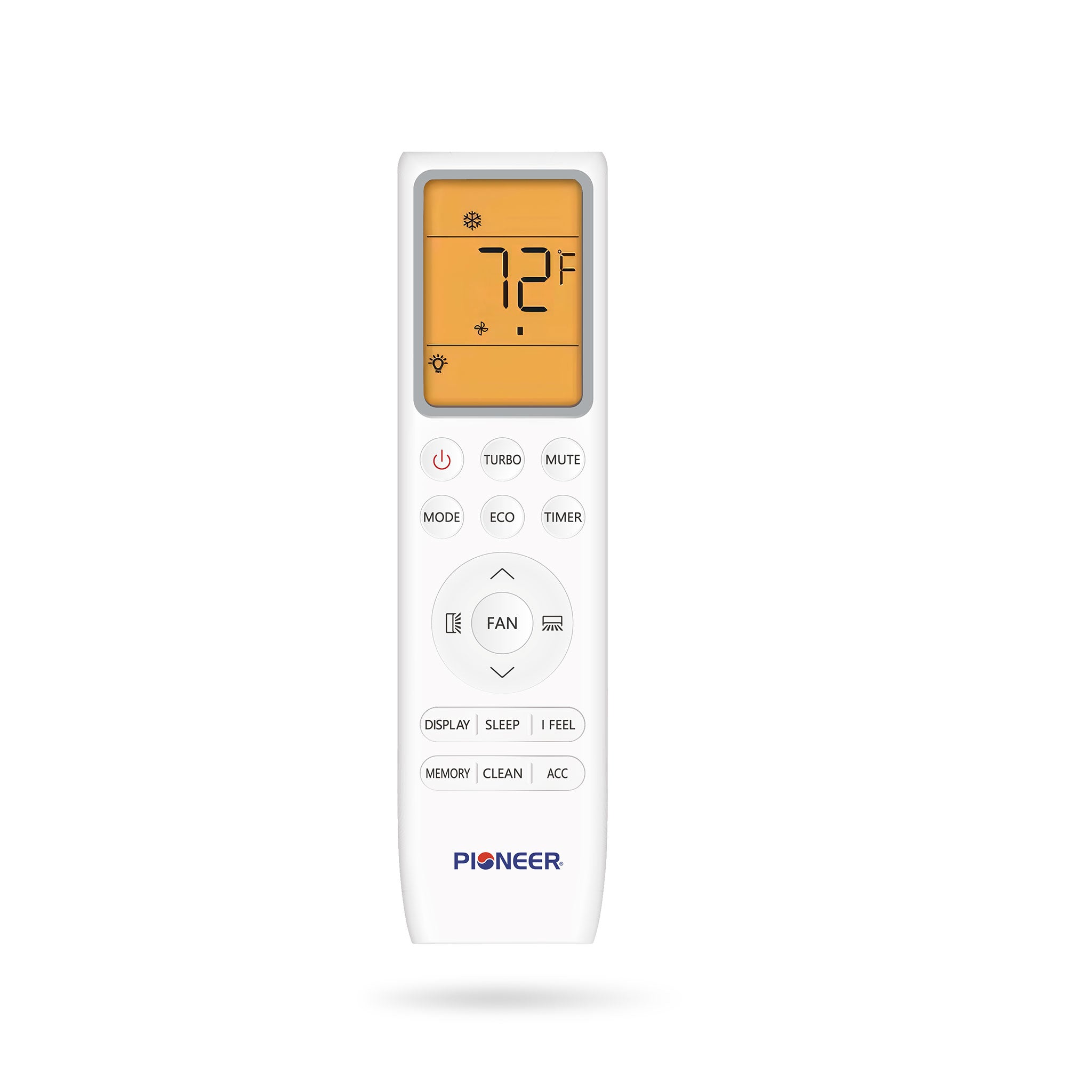

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

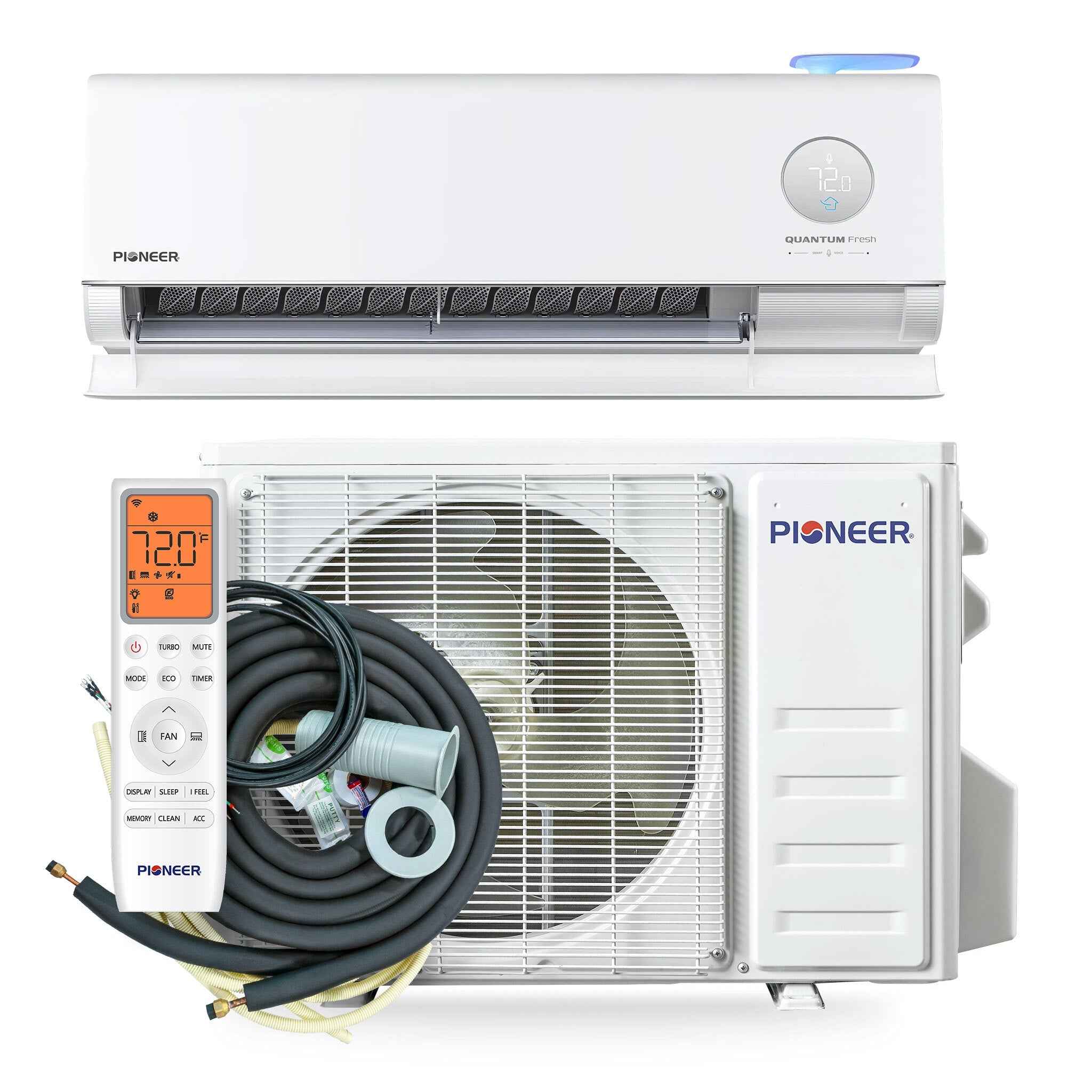

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 3,000~15,000 BTU/h
- Cooling SEER2: 24.0 BTU/W.h
- Cooling EER2: 13.0 BTU/W.h
- Heating Rated Capacity: 13,100 BTU/h
- Heating Capacity Range: 3,000~13,600 BTU/h
- Heating HSPF2 (Region IV): 9.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 4.2 / 2.0 W/W
- Refrigerant Type: R32
- Recommended Room Size: 350~500 sq ft
- Minimum Room Size: 25 sq ft

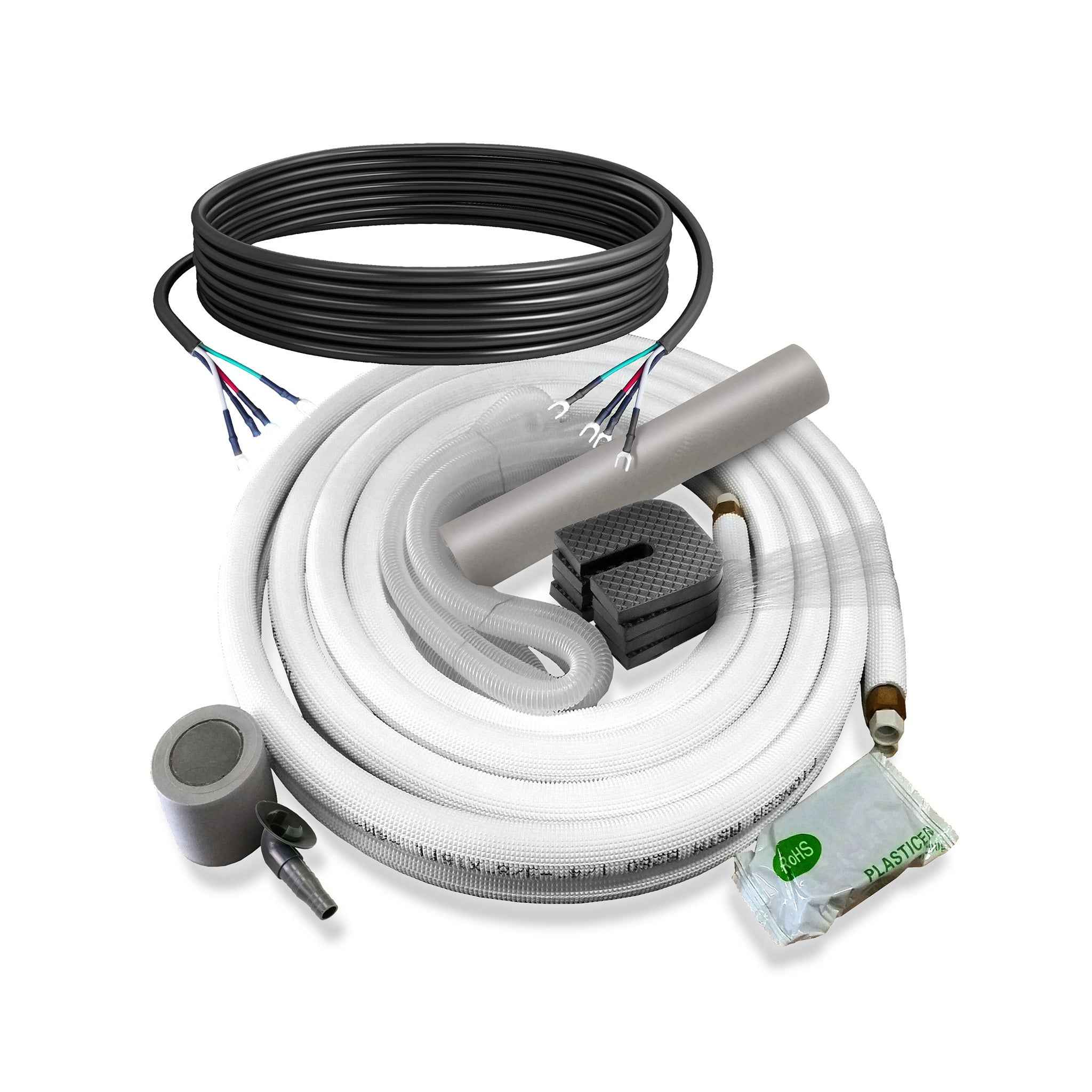

- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048739
-

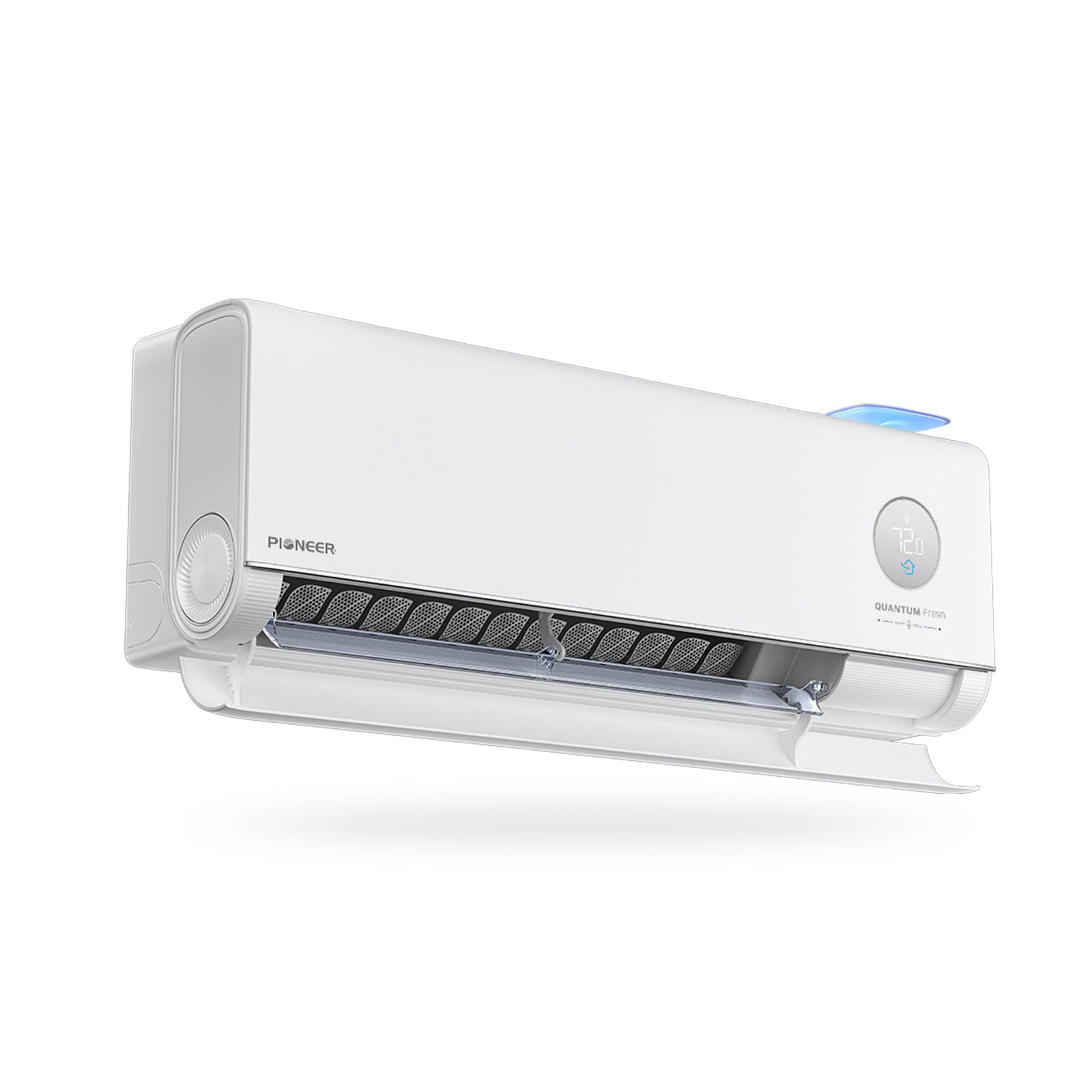

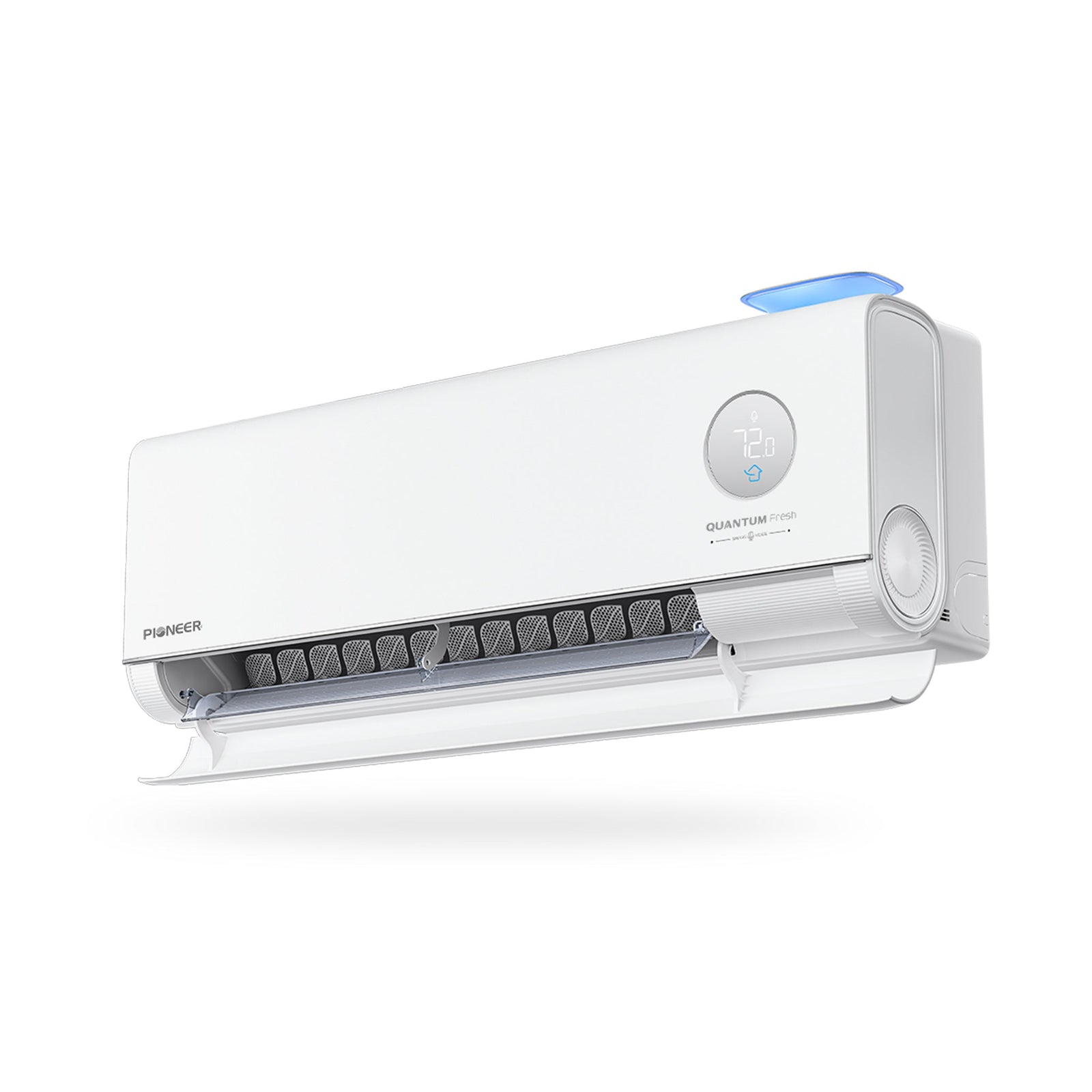

Indoor Unit
- Part Number: WT012GLUI25FVQ
- Air Flow (Turbo/Hi/Med/Lo/Mute): 440 / 410 / 380 / 230 / 150 CFM
- Fresh Air Volume: 18 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 44 / 43 / 37 / 32 / 30 dB(A)
- Product Dimensions (WDH): 36"-1/4 x 8"-1/8 x 12"-1/4 Inches
- Carton Dimensions (WDH): 39"-1/4 x 12"-1/4 x 15"-1/4 Inches
- Net / Gross Weight: 25.4 / 32.2 lbs
-

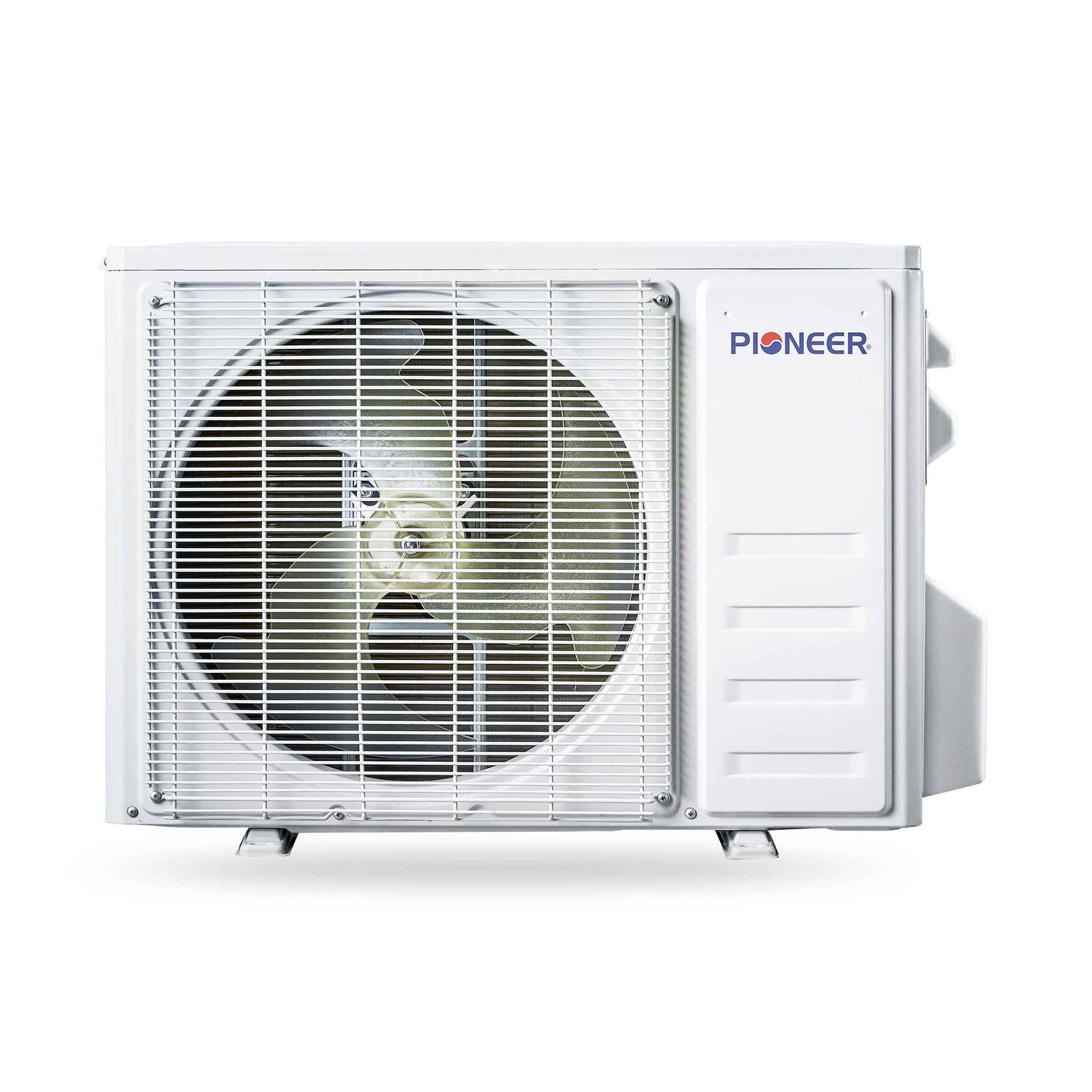

Outdoor Unit
-
Part Number: YN012GLUI25RPQ
- Breaker Needed: 15A (double-pole)
- Sound Level: 53 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 33"-1/2 x 14"-1/8 x 23"-5/8 Inches
- Net / Gross Weight: 55.1 / 61.7 lbs
-
Part Number: YN012GLUI25RPQ
Dimension Chart
