Product information
Summary

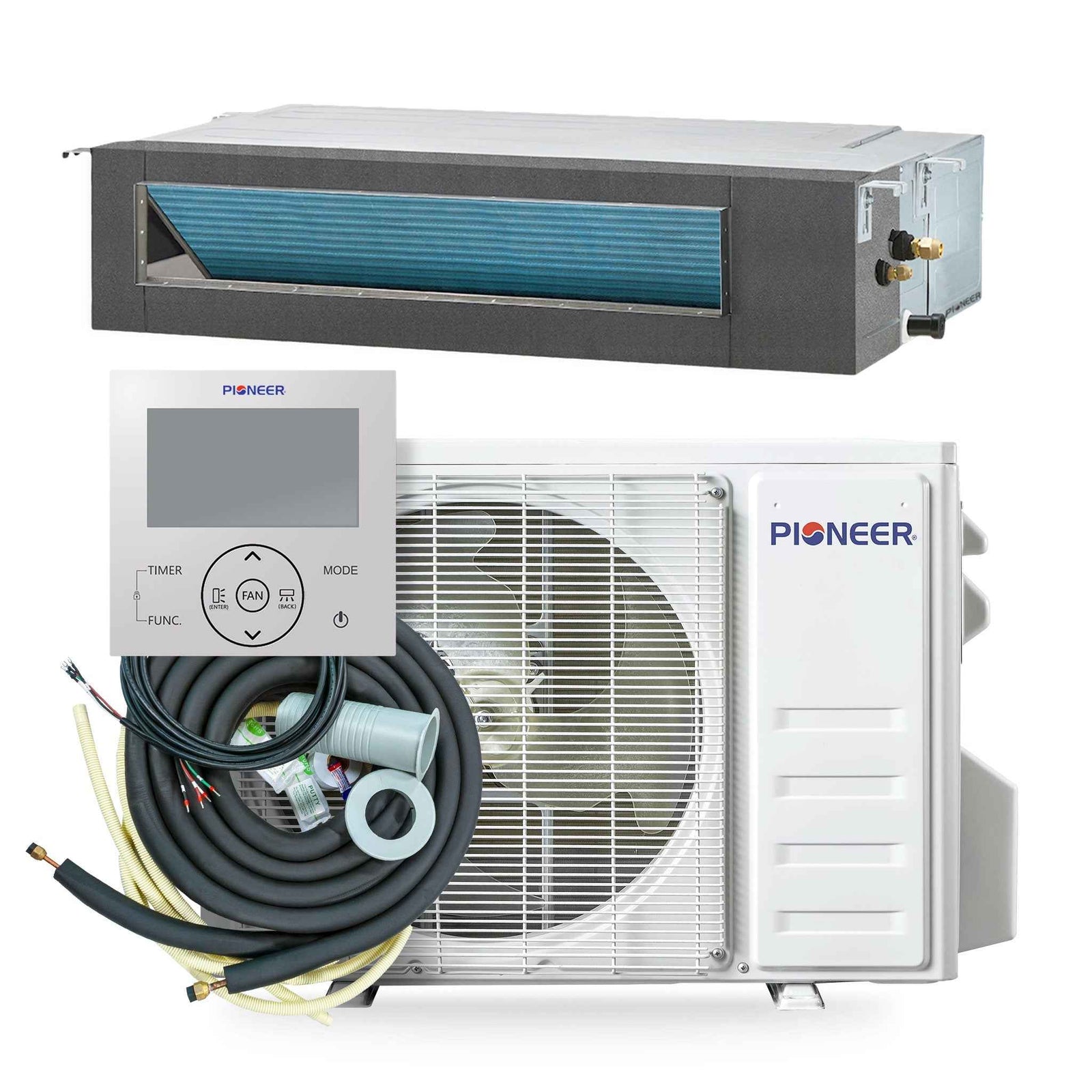

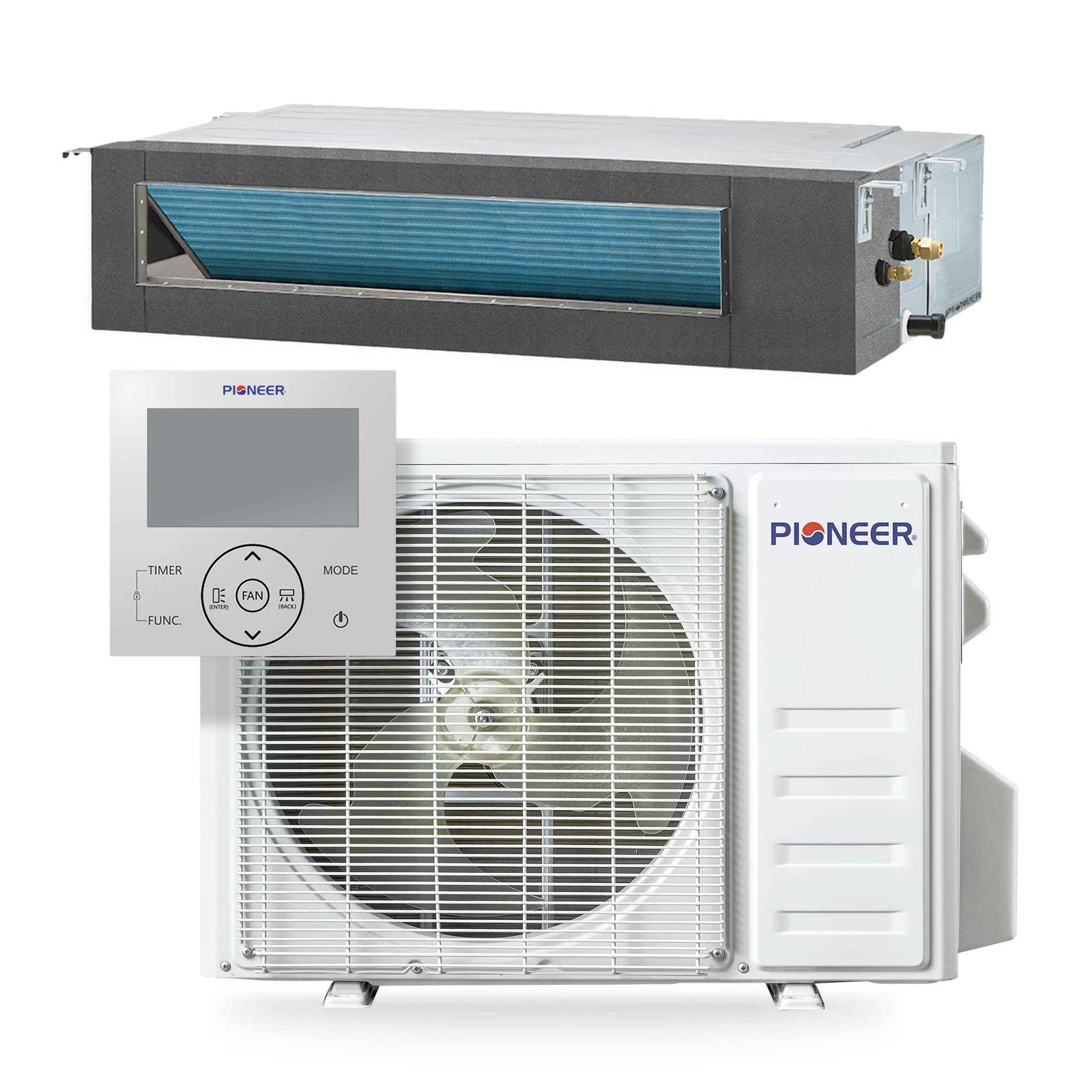

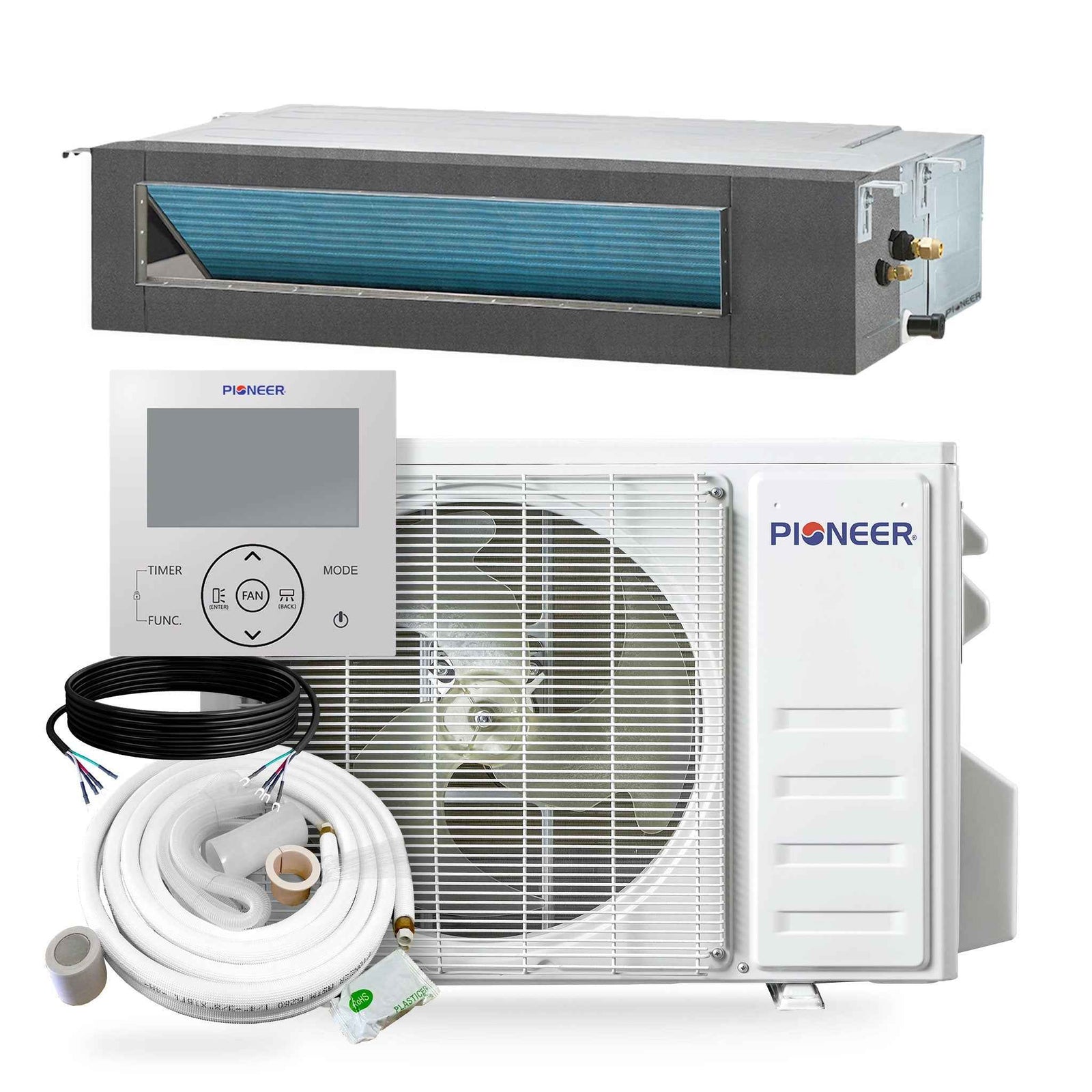

- High Efficiency Quantum Ultra Ceiling Concealed Ducted Split Heat Pump System
- Cooling capacity: 22,000 BTU/H with 19 SEER2 / 11 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 10 HSPF2 / 3.34 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Concealed Mounted Ducted Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

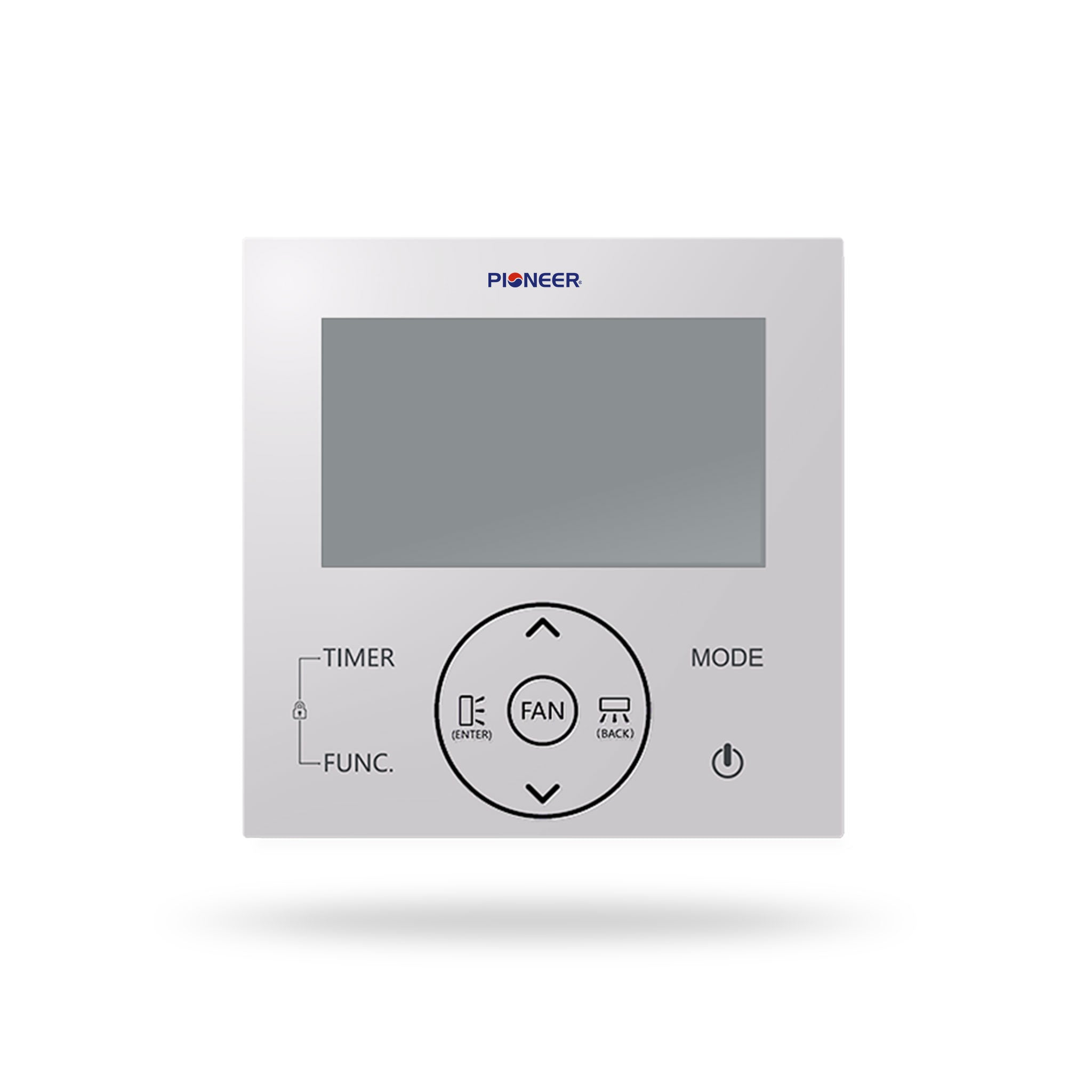

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 22,000 BTU/h
- Cooling Capacity Range: 7,550~24,600 BTU/h
- Cooling SEER2: 19.0 BTU/W.h
- Cooling EER2: 11.0 BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 8,700~28,500 BTU/h
- Heating HSPF2 (Region IV/V): 10.0 / 8.8 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.34 / 2.0 W/W
- Refrigerant Type: R454b
- Suitable Area: 750~1,000 sq ft
- AHRI Reference: 217048765
-
Indoor Unit
- Part Number: RT024GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 741 / 623 / 558 / 529 / 470 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 41 / 38 / 34 dB(A)
- Product Dimensions (WDH): 43"-1/4 x 17"-3/4 x 7"-7/8 Inches
- Carton Dimensions (WDH): 50"-3/4 x 22"-1/4 x 9"-7/8 Inches
- Net / Gross Weight: 50.7 / 58.4 lbs
-

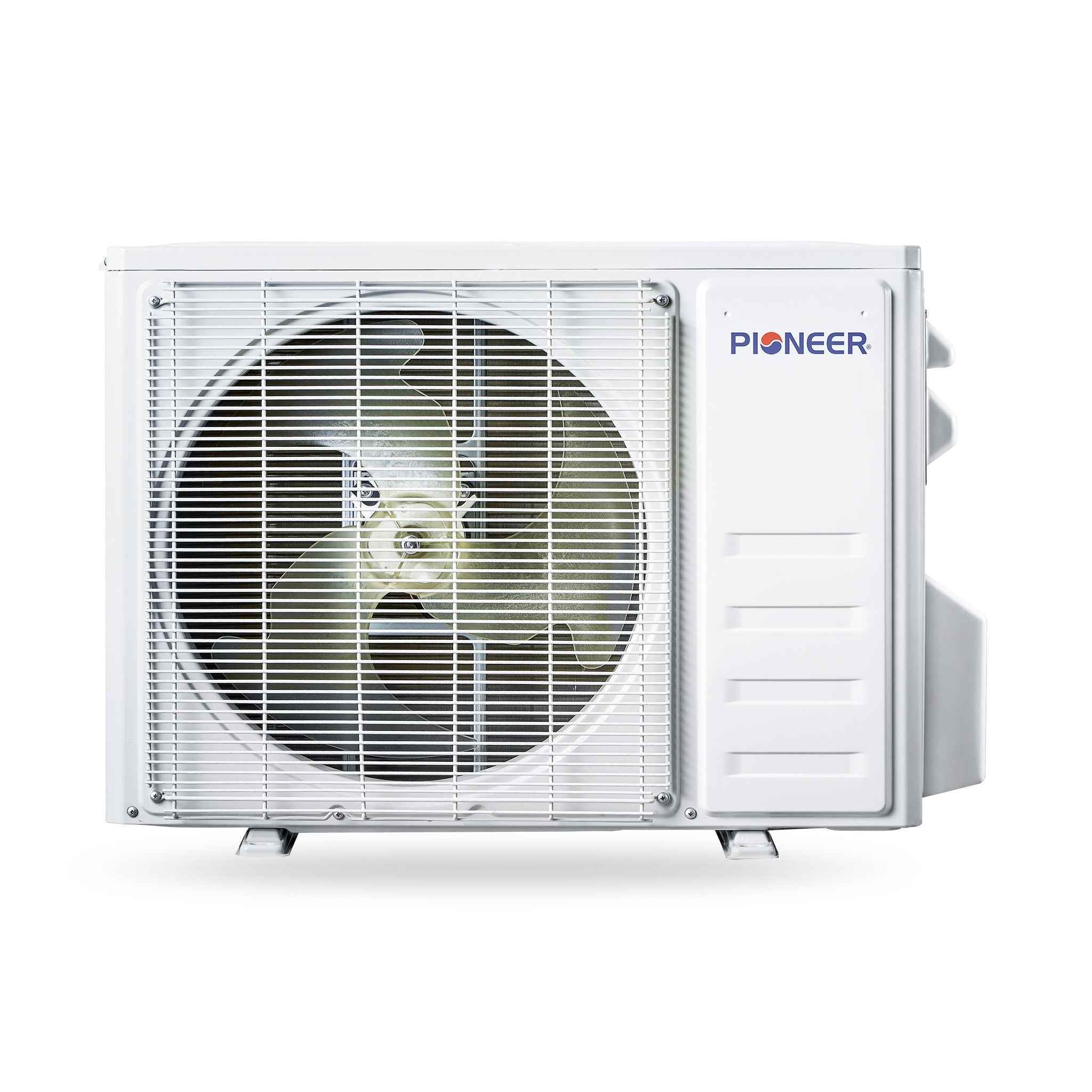

Outdoor Unit
- Part Number: YN024GLSI24RPG
- Breaker Needed: 25A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
- Net / Gross Weight: 104.7 / 119.0 lbs
Dimension Chart
