Product information
Summary
- High Efficiency Quantum Ultra Slim-Duct Ceiling Concealed Split Heat Pump System
- Cooling capacity: 48,000 BTU/H with 17.1 SEER2 / 10.0 EER2 efficiency
- Heating capacity: 50,000 BTU/H with 9.8 HSPF2 / 3.49 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph

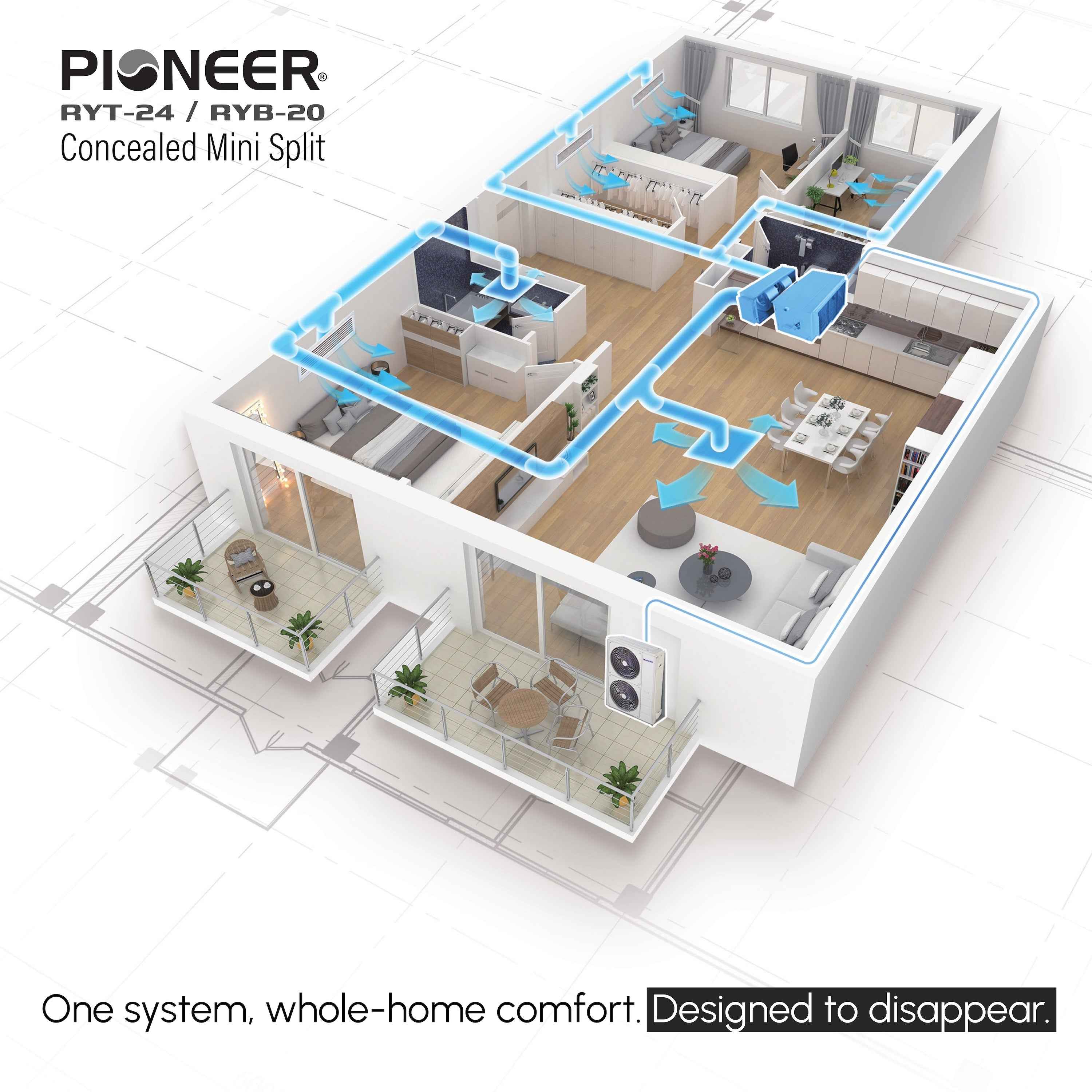

- Slim-Duct Ceiling Concealed Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Standard Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

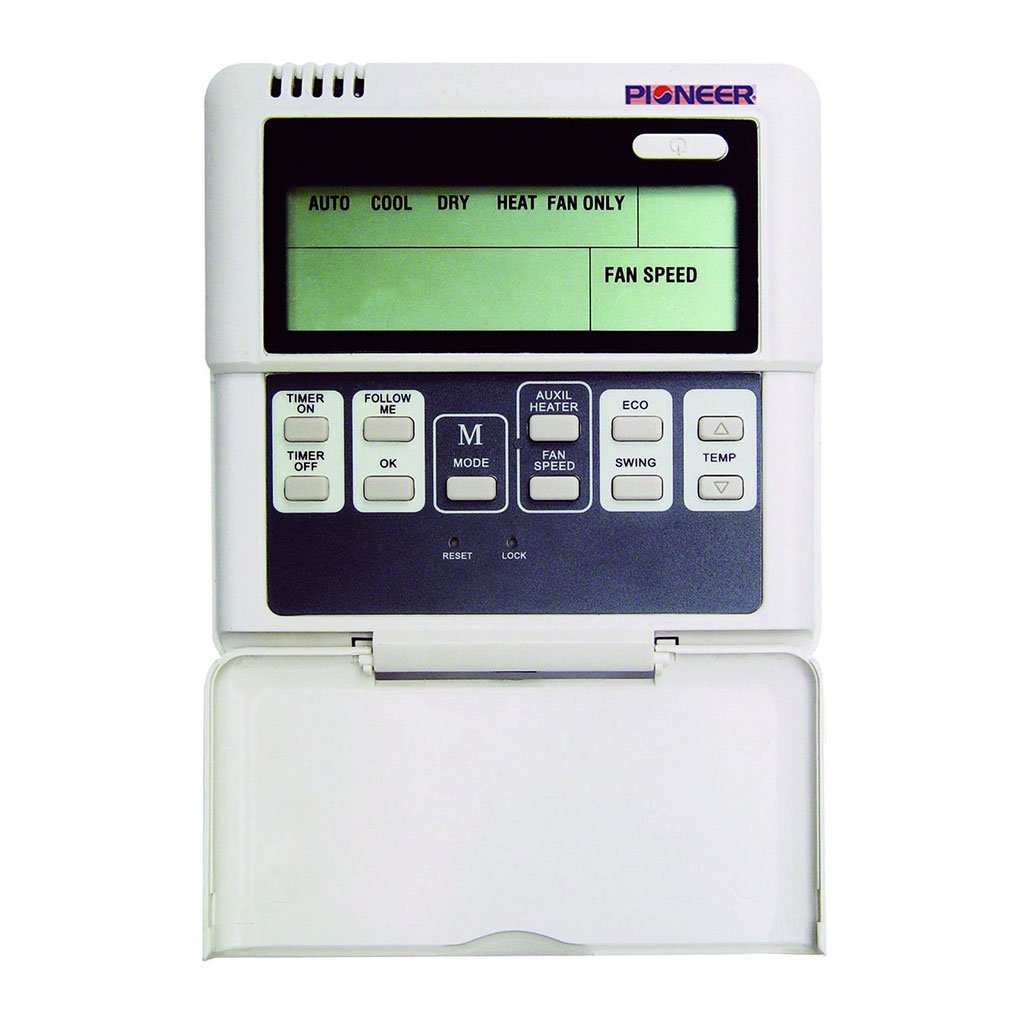

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- FOLLOW ME, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

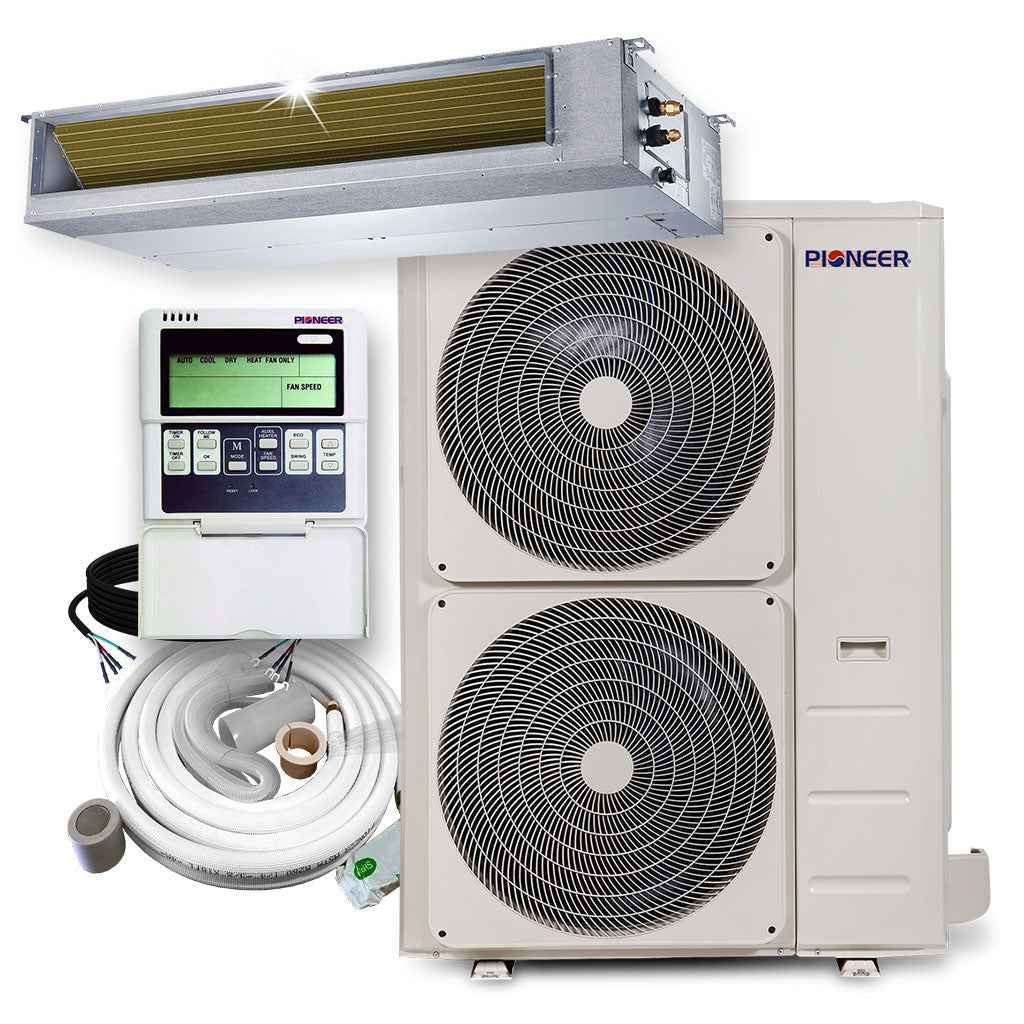

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 48,000 BTU/h
- Cooling Capacity Range: 11,000~56,500 BTU/h
- Cooling SEER2: 17.1 BTU/W.h
- Cooling EER2: 10.0 BTU/W.h
- Heating Rated Capacity: 50,000 BTU/h
- Heating Capacity Range: 11,200~60,500 BTU/h
- Heating HSPF2 (Region IV/V): 9.8 / 7.7 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.49 / 2.0 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 1,400~1,800 sq ft
- Minimum Room Size: 143 sq ft

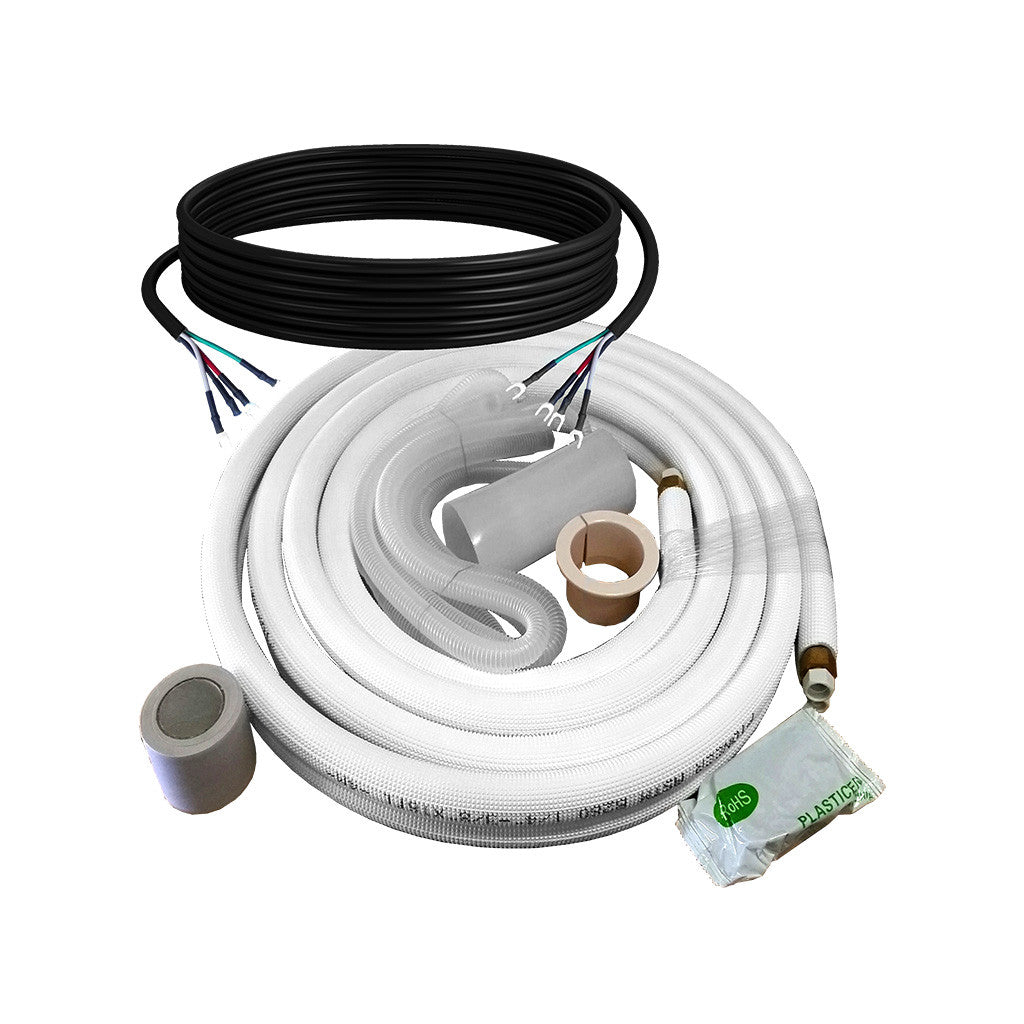

- Piping Diameter: 3/4" (Gas) / 3/8" (Liquid)
- AHRI Reference: 218010994
-

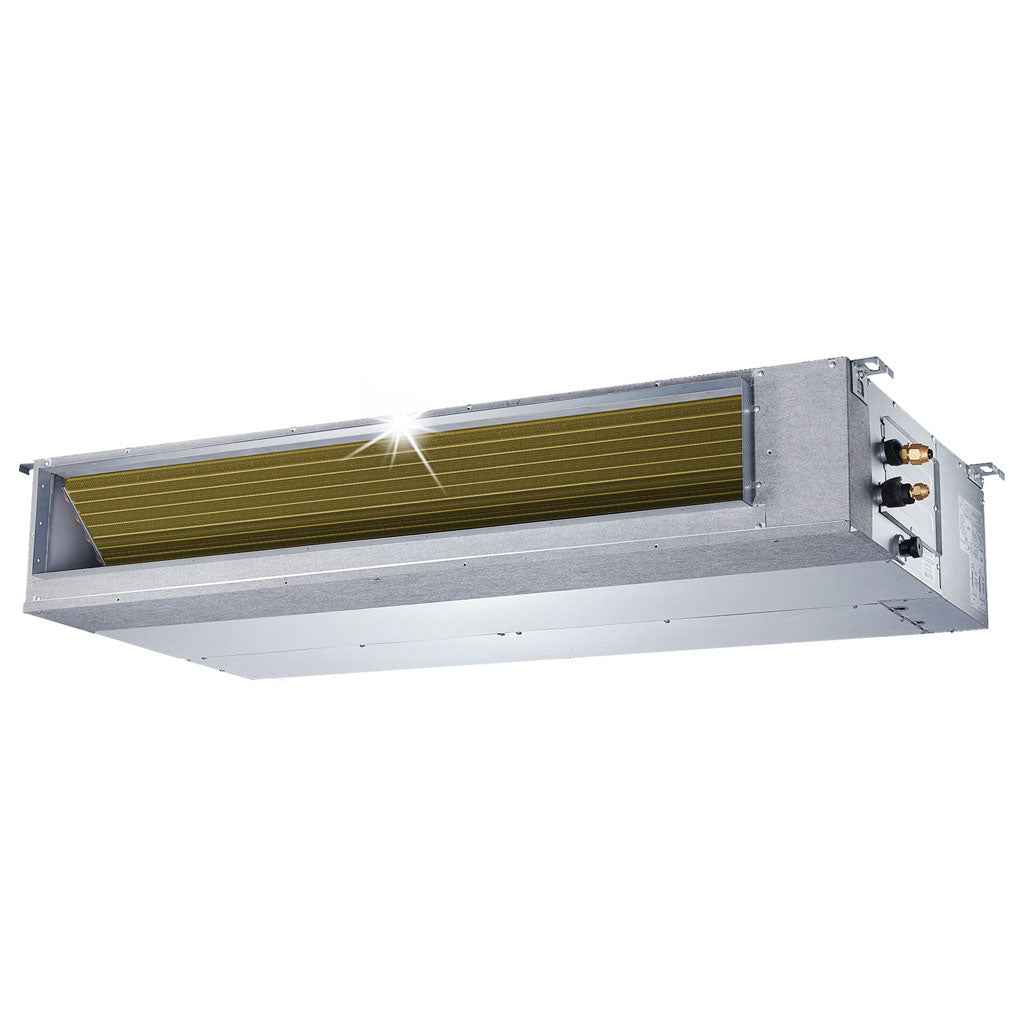

Indoor Unit
- Part Number: RB048GMSILDFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 1,467 / 1,471 / 1,294 / 1,059 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 51 / 46 / 42 / 40 dB(A)
- Product Dimensions (WDH): 47"-1/4 x 29"-1/2 x 11"-7/8 Inches
- Carton Dimensions (WDH): 56"-1/8 x 33"-7/8 x 14"-1/8 Inches
- Net / Gross Weight: 111.3 / 124.8 lbs
-

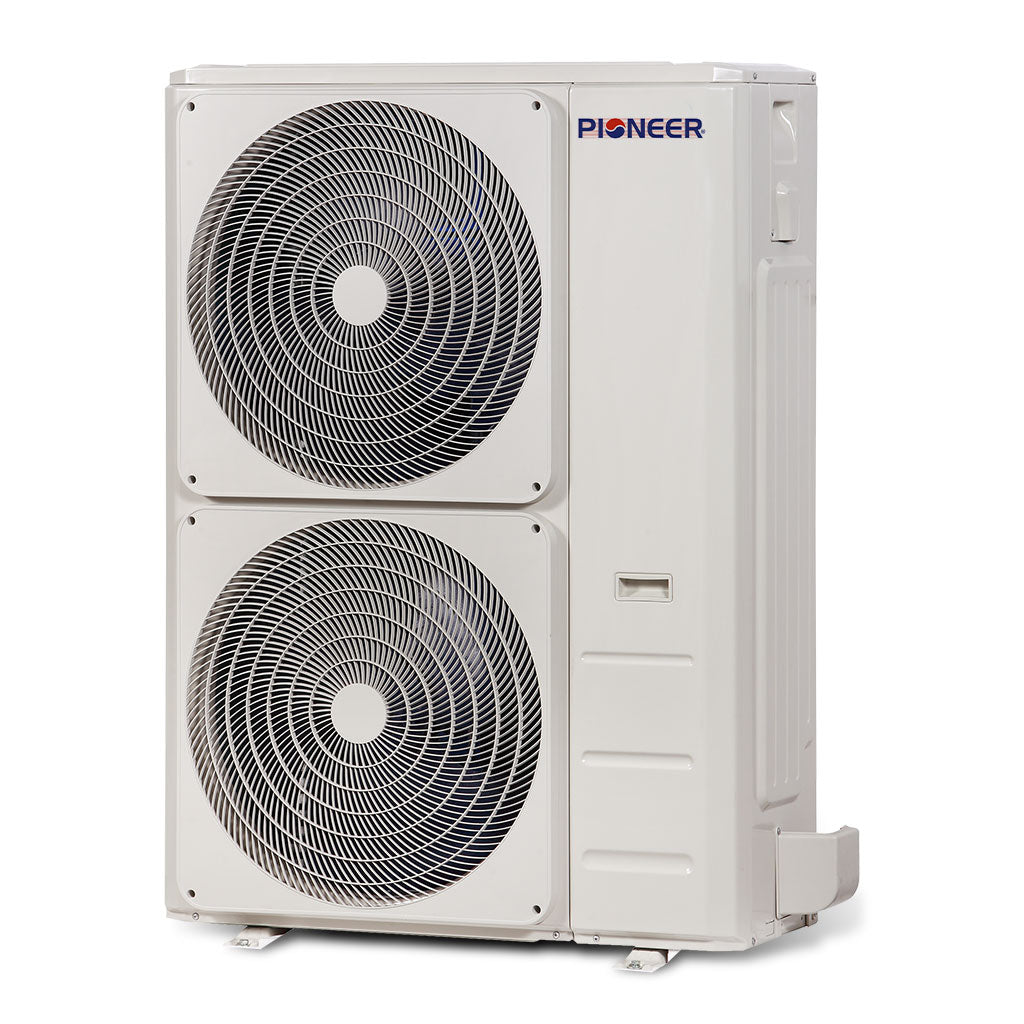

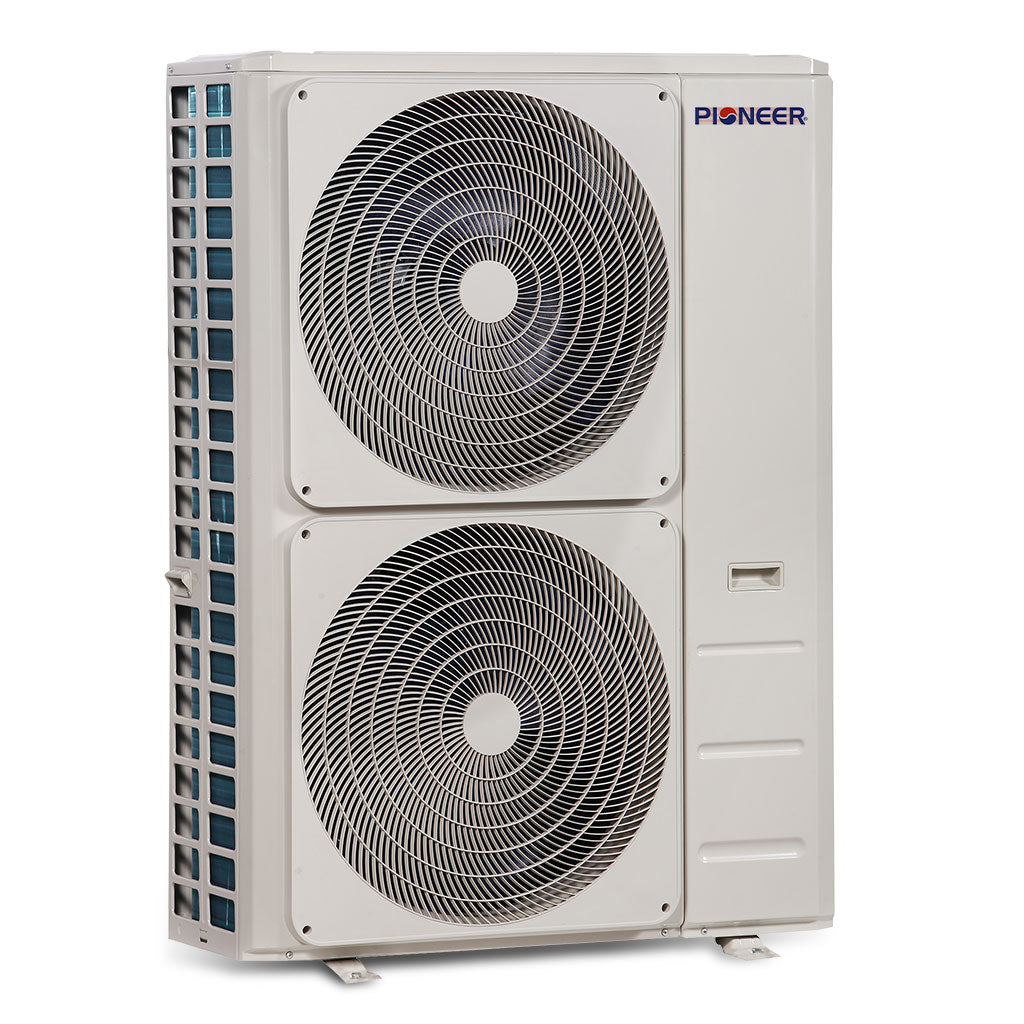

Outdoor Unit
- Part Number: YN048GMSI20RUG
- Breaker Needed: 45A (double-pole)
- Sound Level: 64 dB(A)
- Net Dimensions (WDH): 37"-1/2 x 16"-3/8 x 52"-1/2 Inches
- Carton Dimensions (WDH): 43"-1/8 x 19"-1/2 x 57"-1/2 Inches
- Net / Gross Weight: 208.8 / 237.5 lbs
Dimension Chart
