Product information
Summary

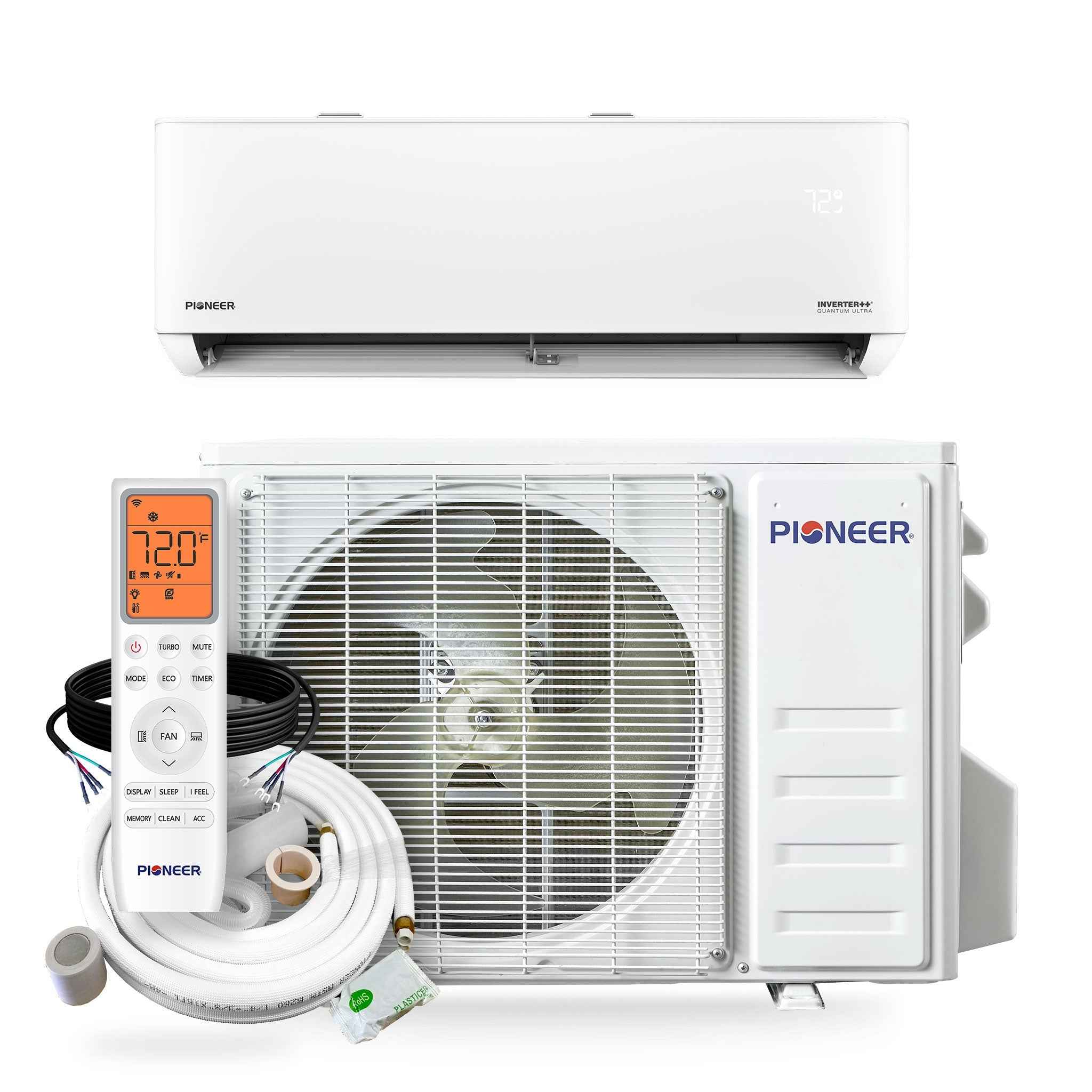

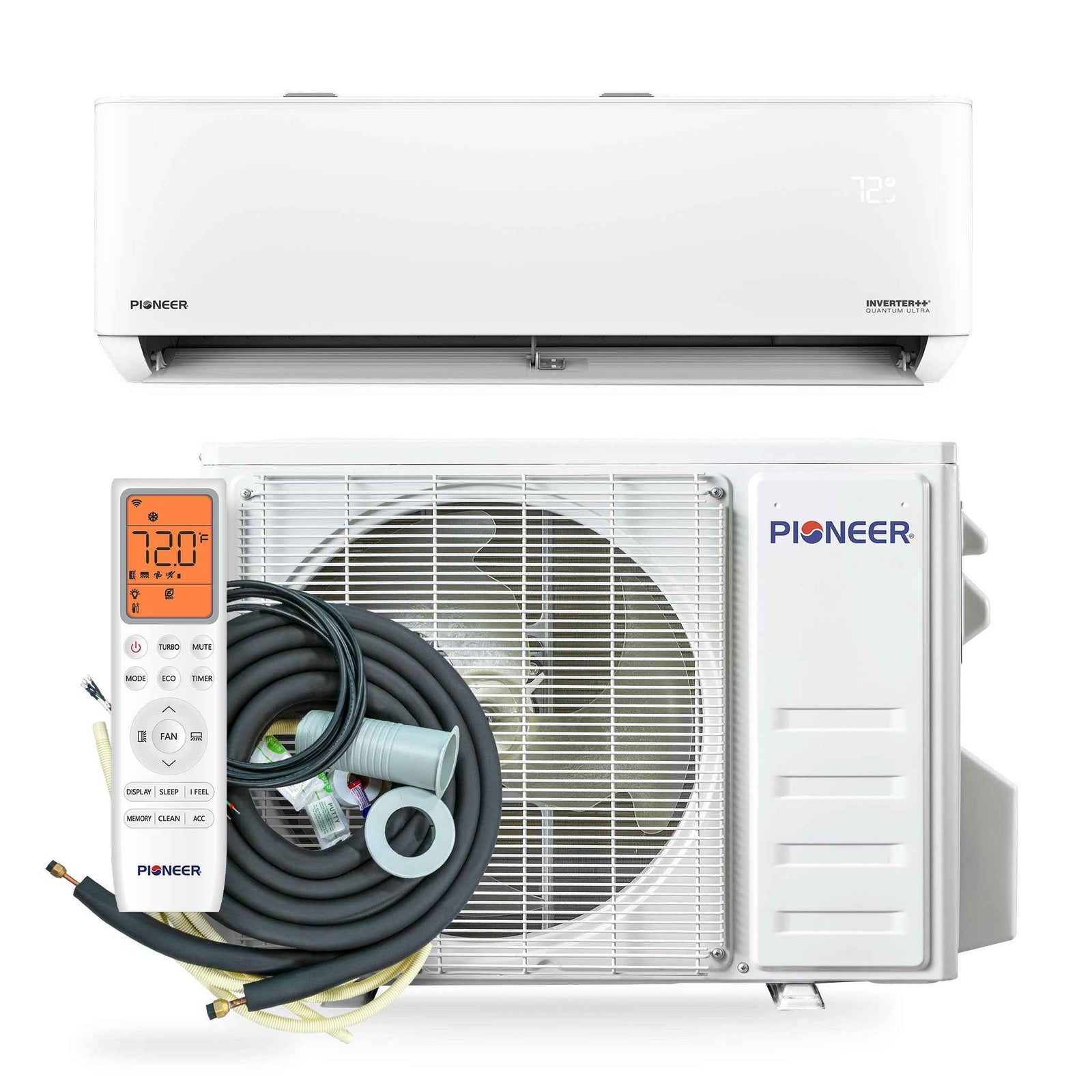

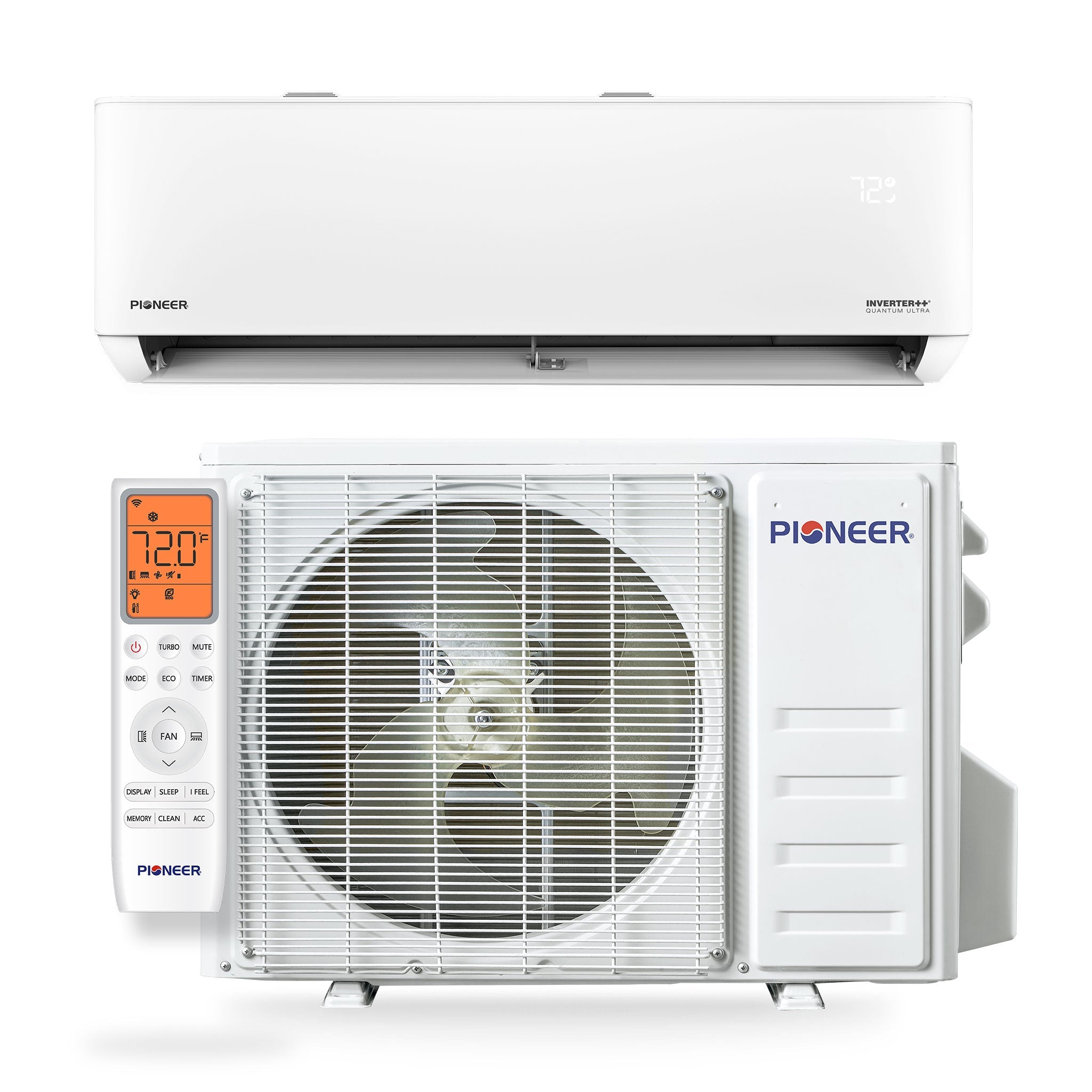

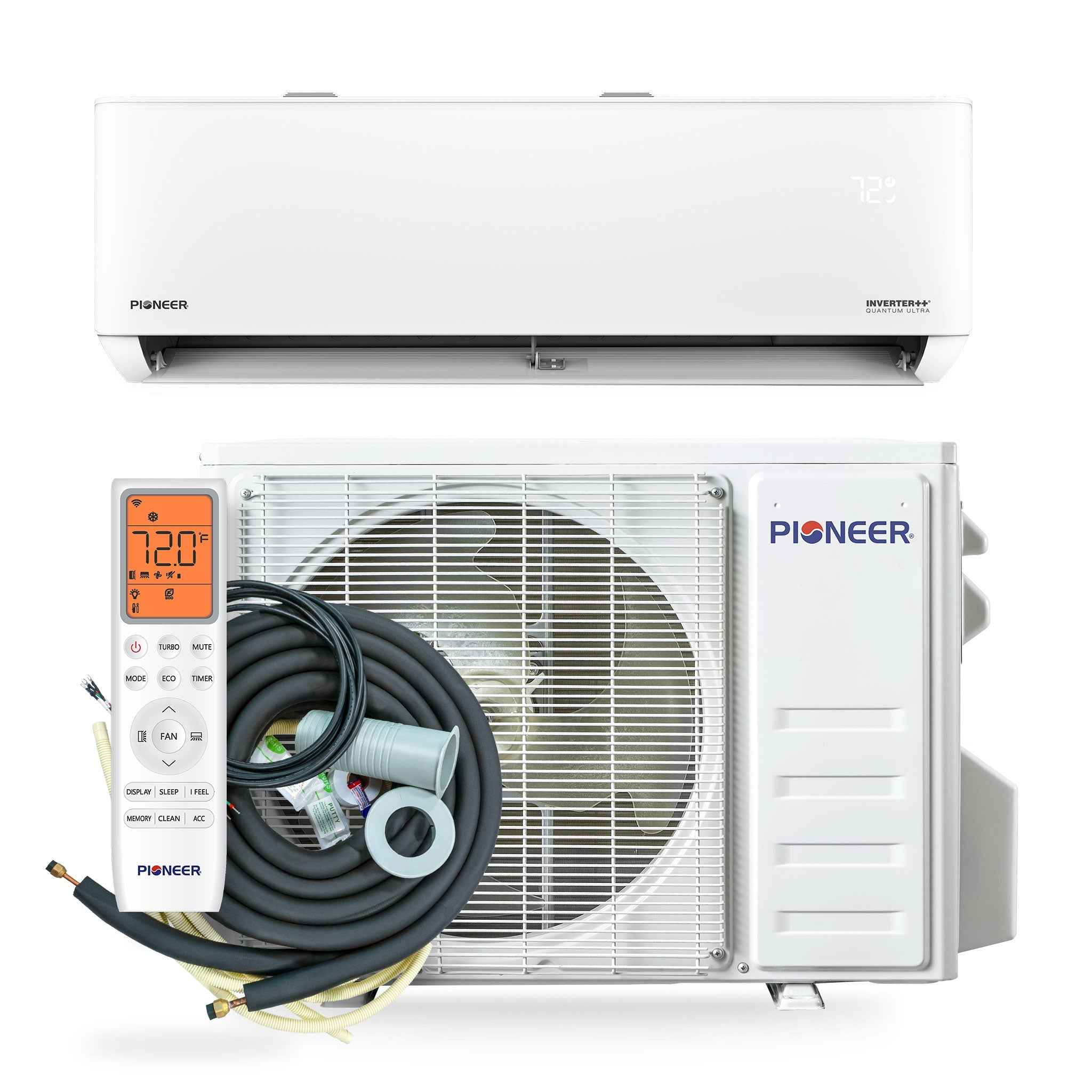

- Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 24.0 SEER2 / 13.0 EER2 efficiency
- Heating capacity: 10,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System

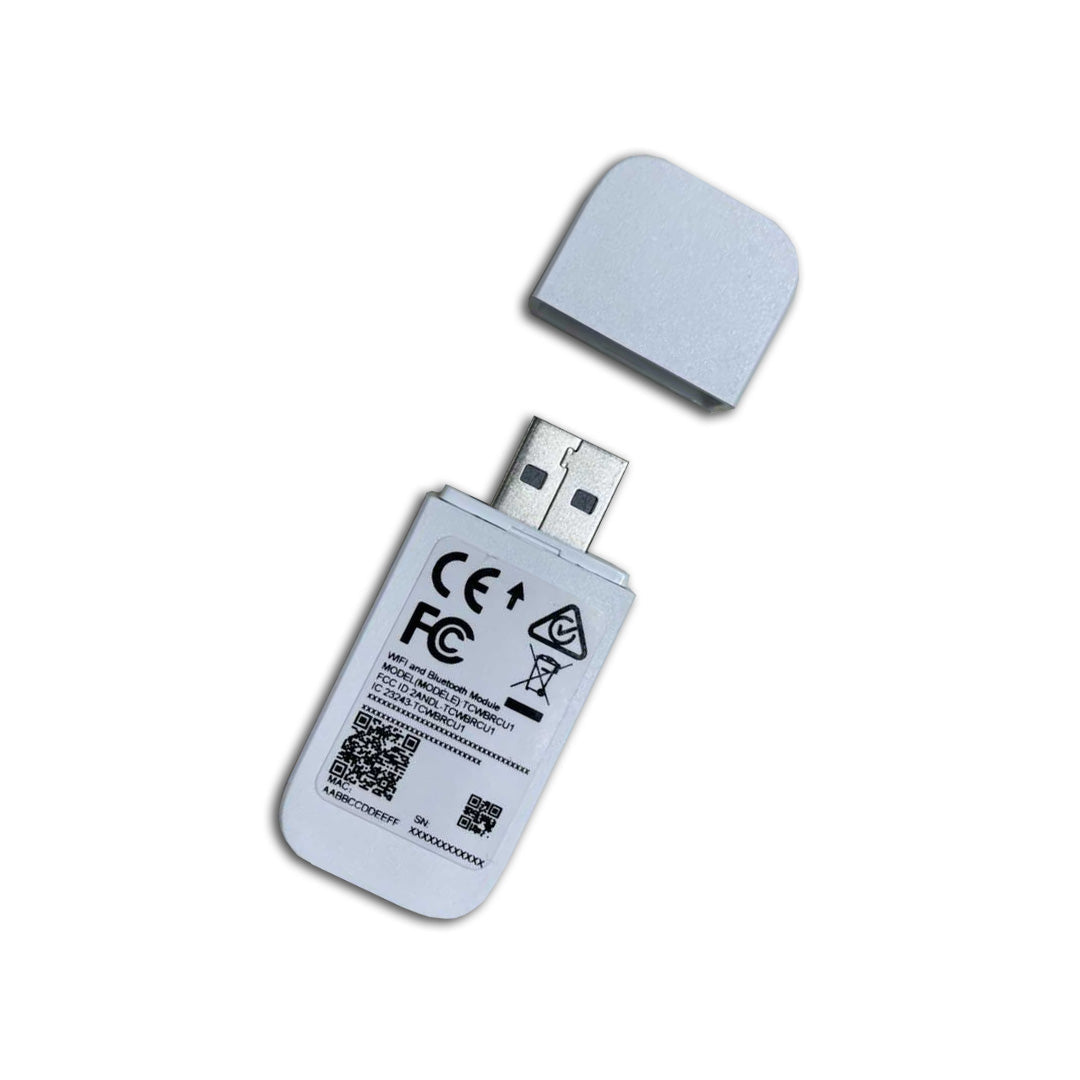

- Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant

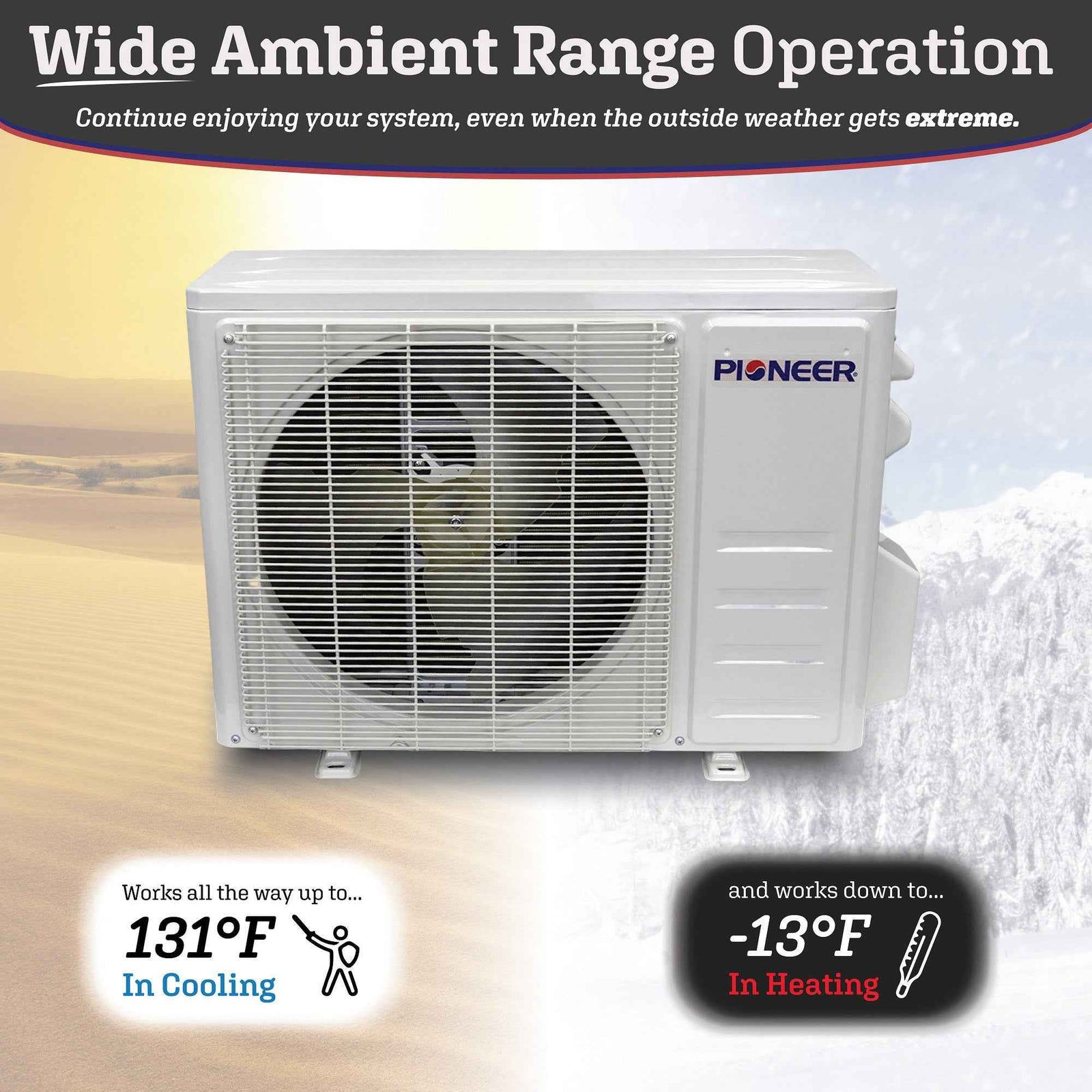

- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

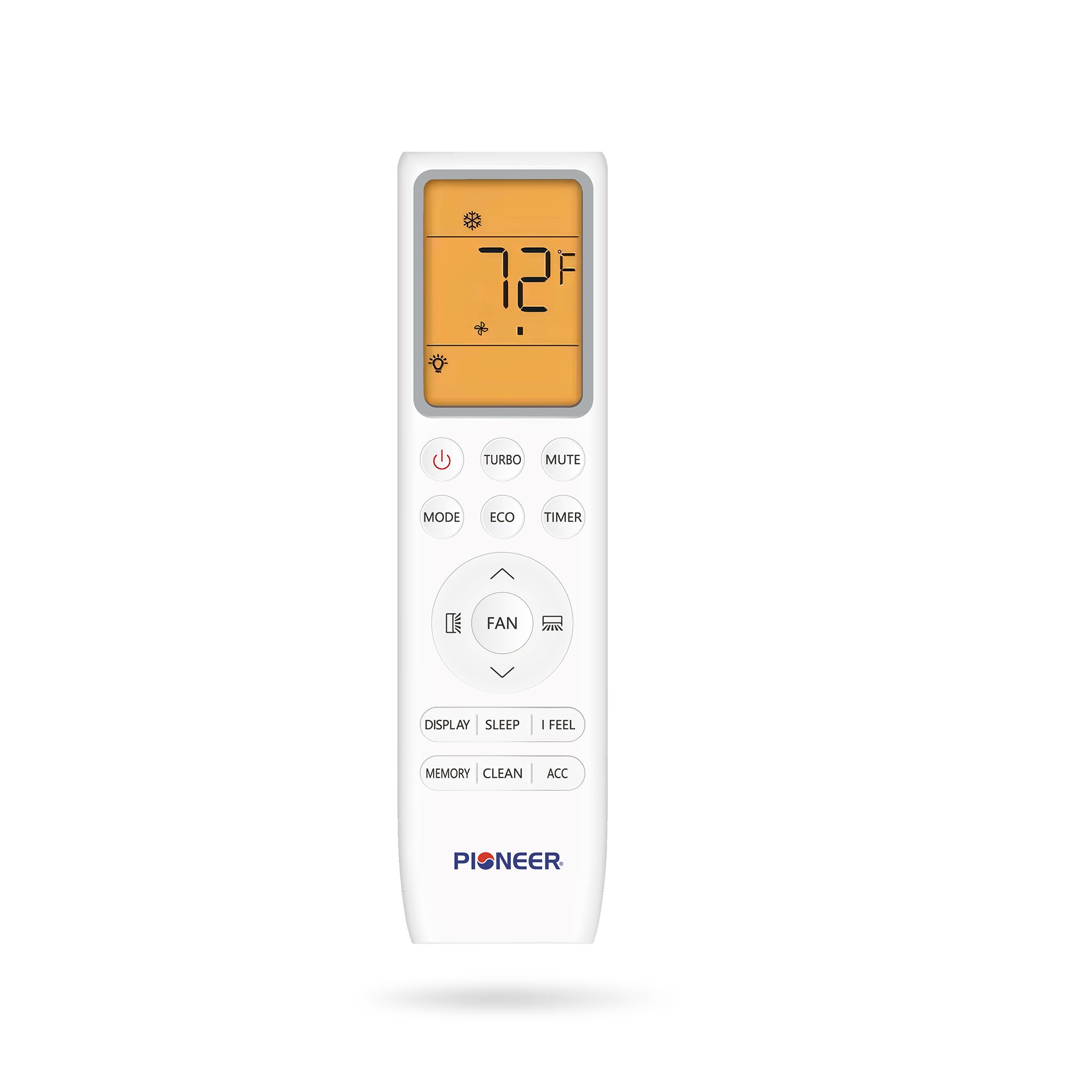

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h
- Cooling Capacity Range: 2,400~11,000 BTU/h
- Cooling SEER2: 24.0 BTU/W.h
- Cooling EER2: 13.0 BTU/W.h
- Heating Rated Capacity: 10,000 BTU/h
- Heating Capacity Range: 2,400~11,000 BTU/h
- Heating HSPF2 (Region IV/V): 9.5 / 8.1 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.81 / 1.9 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 250~350 sq ft
- Minimum Room Size: 28 sq ft

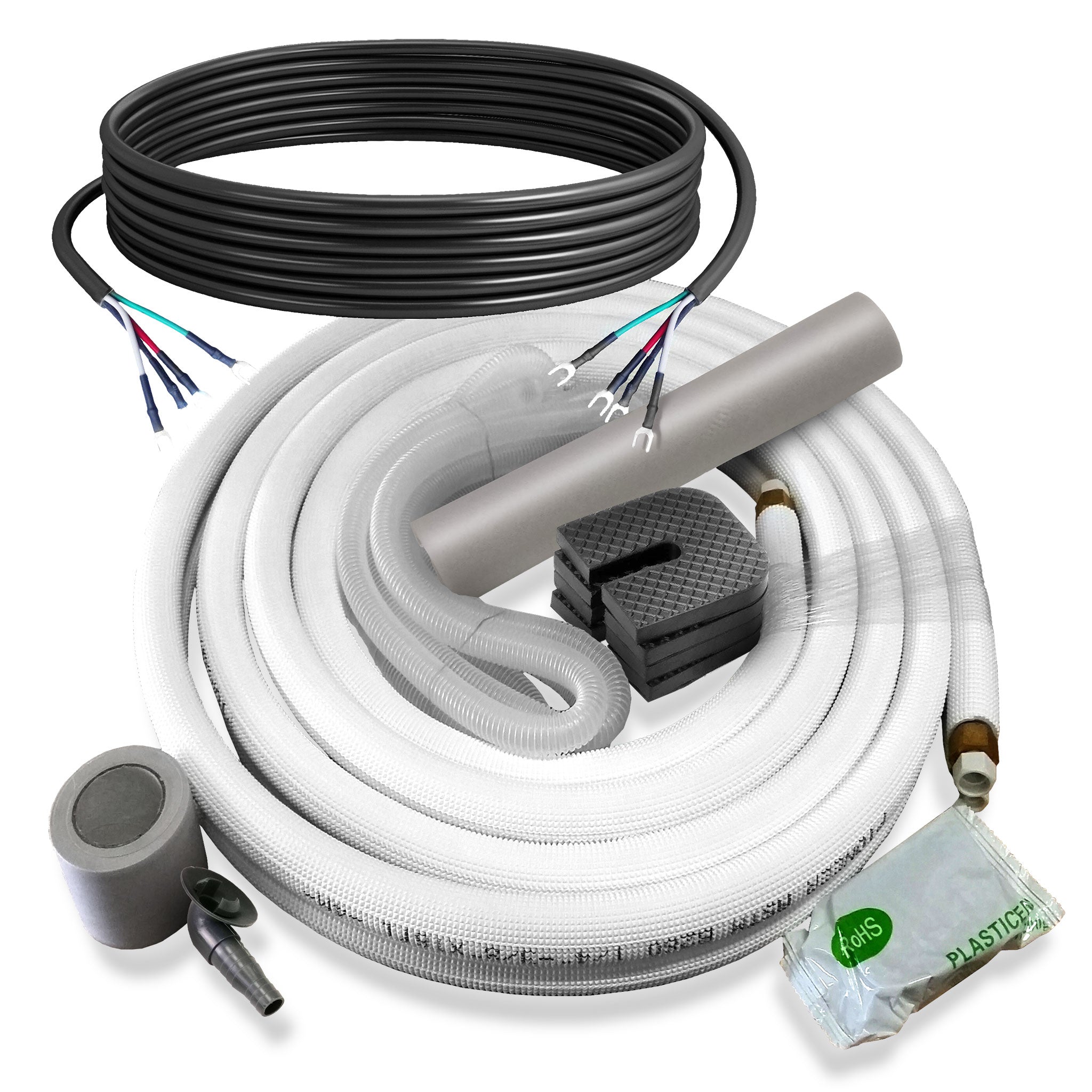

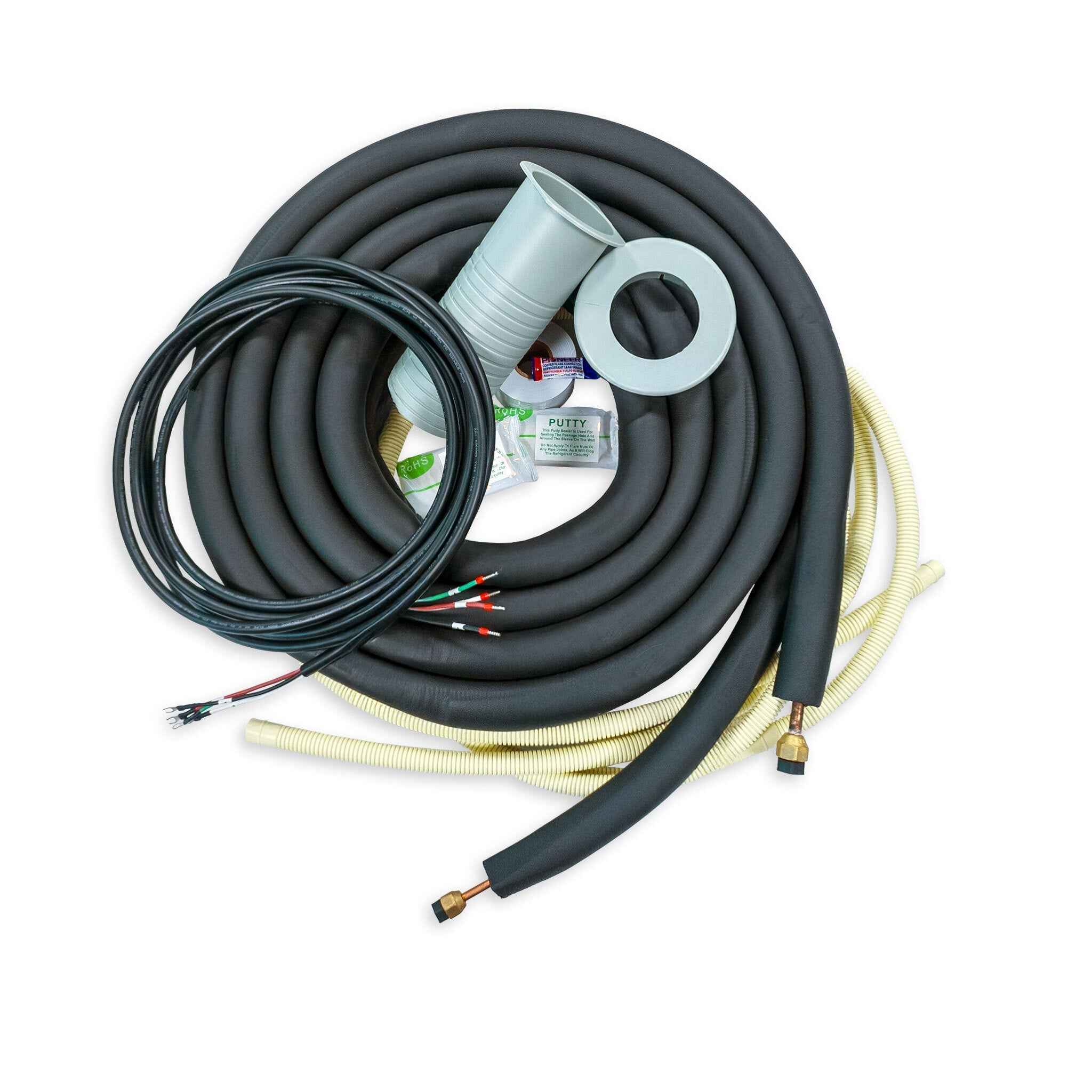

- Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
- AHRI Reference: 217048749
-

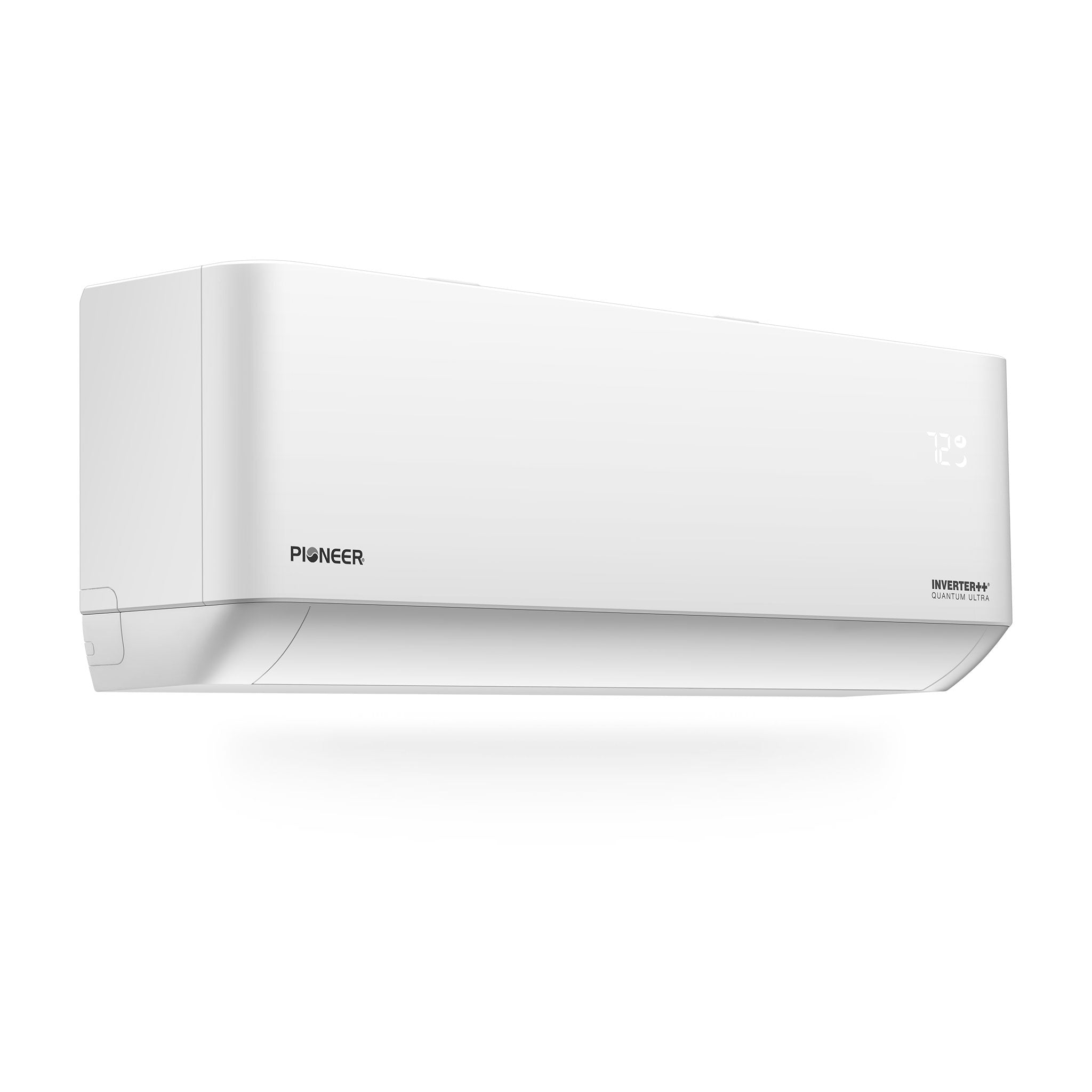

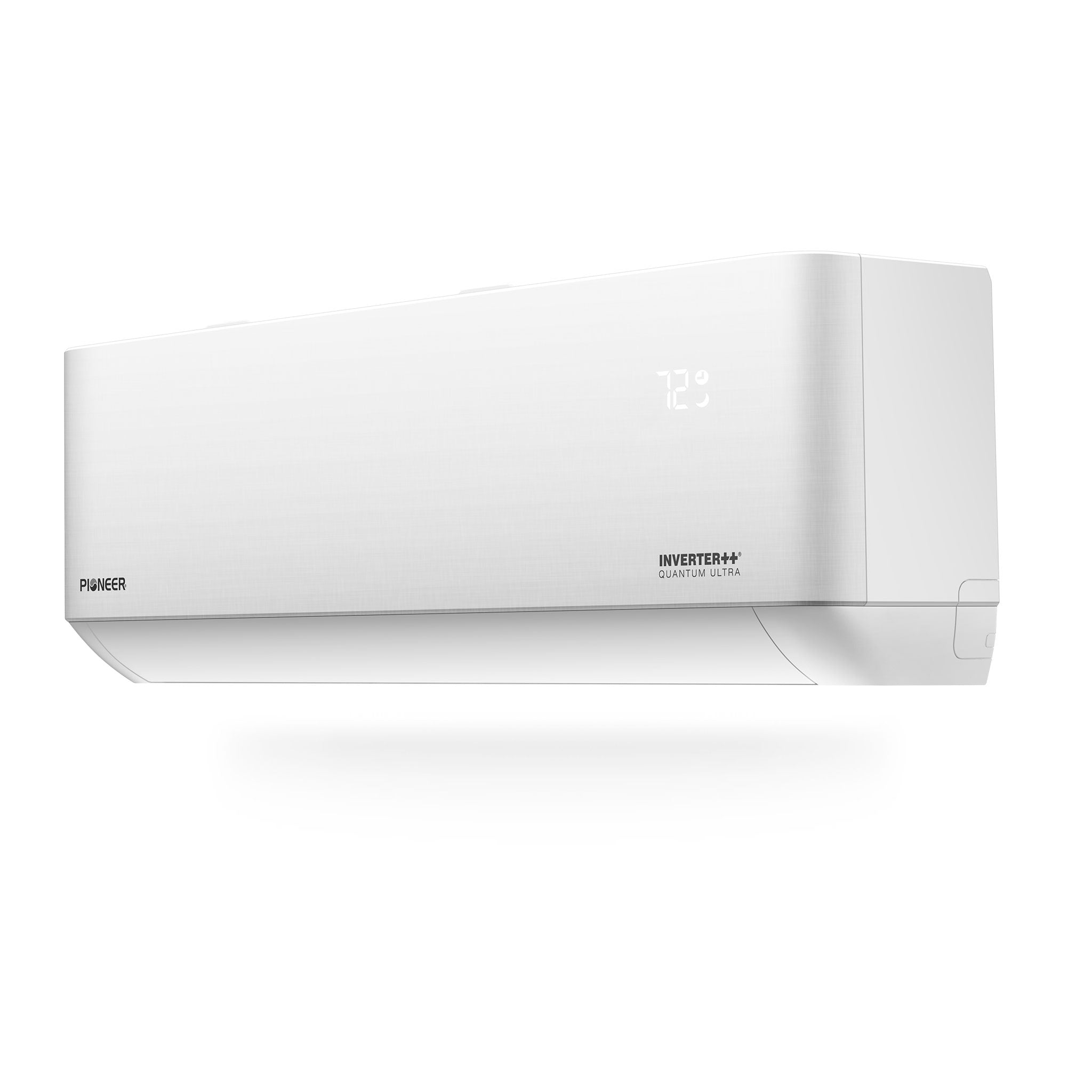

Indoor Unit
- Part Number: WT009GLSI24HLG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 326 / 282.5 / 235 / 188 / 153 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 43 / 40 / 33 / 31 / 30 dB(A)
- Product Dimensions (WDH): 32"-1/4 x 7"-5/8 x 12" Inches
- Carton Dimensions (WDH): 35" x 10"-1/2 x 15" Inches
- Net / Gross Weight: 20.7 / 25.1 lbs
-

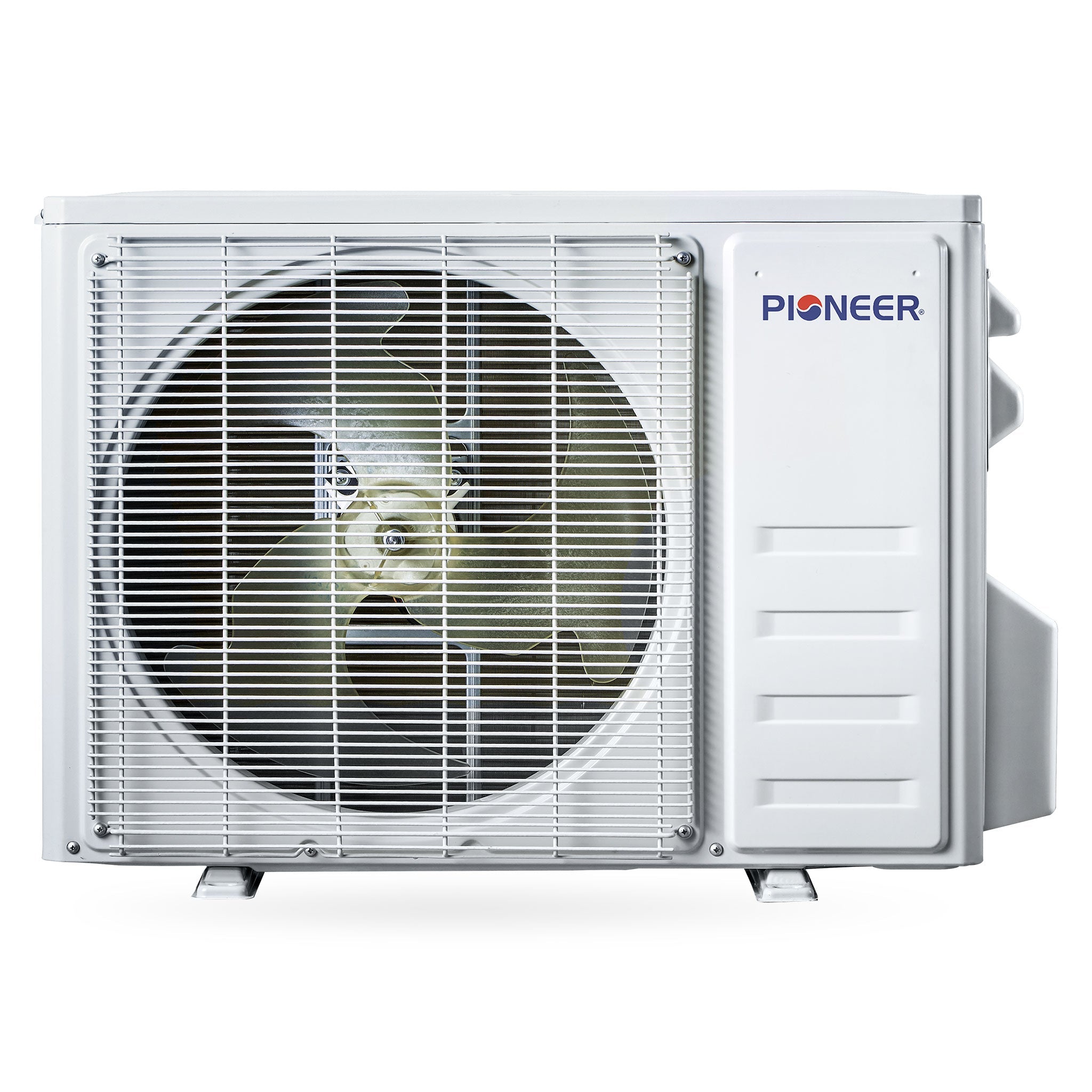

Outdoor Unit
- Part Number: YN009GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 52.7 / 59.3 lbs
Dimension Chart
