Product information
Summary

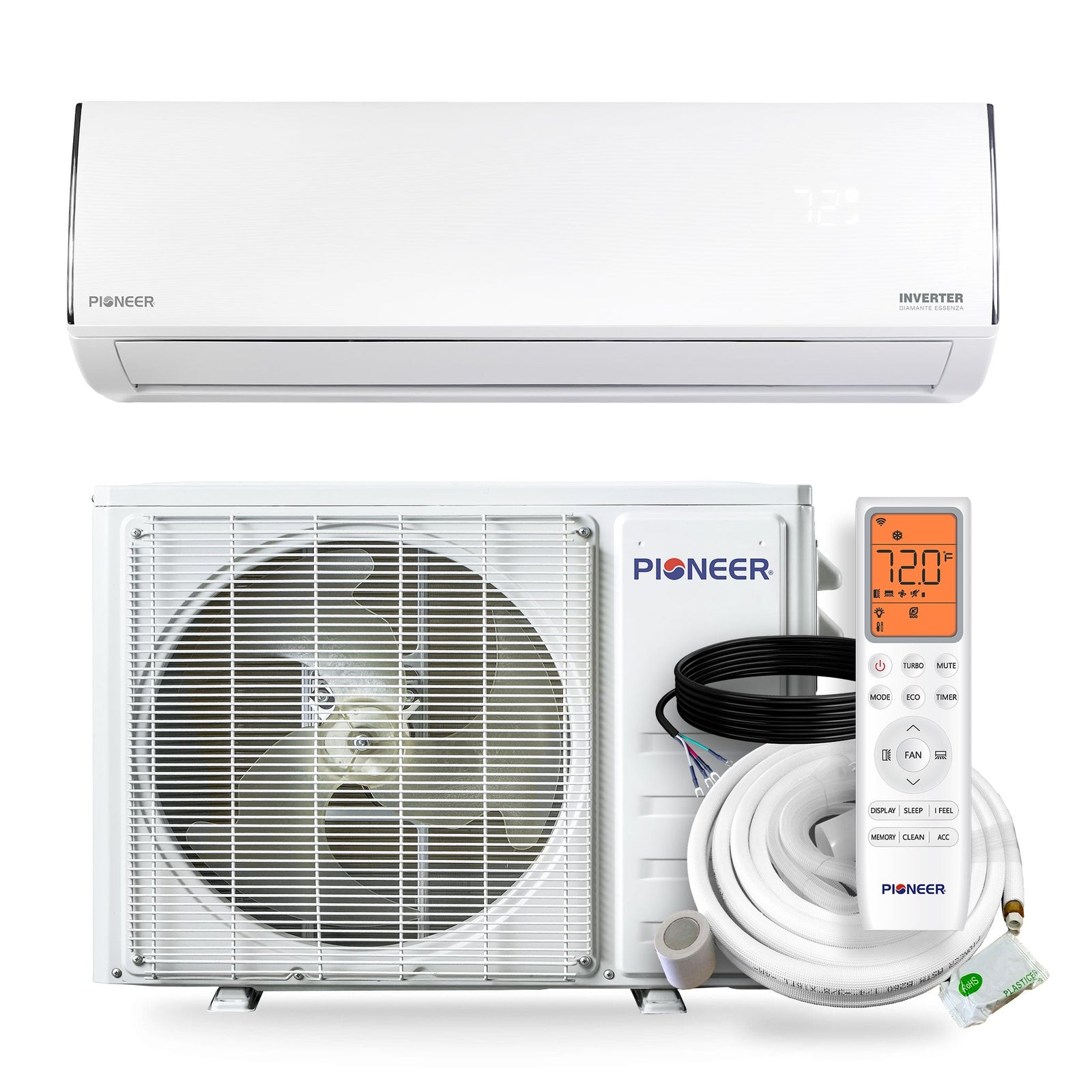

- Standard Efficiency Diamante Essenza Ductless Mini Split Heat Pump System
- Cooling capacity: 17,000 BTU/H with 17 SEER2 / 9.5 EER2 efficiency
- Heating capacity: 16,500 BTU/H with 8.5 HSPF2 / 3.2 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R-32 Refrigerant
- Standard Ambient Range Operation (As low as 5°F in Heating / As high as 122°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)
- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 17,000 BTU/h
- Cooling Capacity Range: 4,095~17,700 BTU/h
- Cooling SEER2: 17.0 BTU/W.h
- Cooling EER2: 9.5 BTU/W.h
- Heating Rated Capacity: 16,500 BTU/h
- Heating Capacity Range: 4,095~17,700 BTU/h
- Heating HSPF2 (Region IV): 8.5 / 7.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.2 / 1.8 W/W
- Refrigerant Type: R-32
- Recommended Room Size: 400~650 sq ft
- Minimum Room Size: 27 sq ft
- Minimum Installation Height: 6 ft
- Piping Diameter: 1/4-3/8"
- AHRI Reference: 217048736
-
Indoor Unit
- Part Number: WT018GLUI17HLD
- Air Flow (Turbo/Hi/Med/Lo/Mute): 412 / 364 / 294 / 235 / 208 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 45 / 40 / 34 / 32 dB(A)
- Product Dimensions (WDH): 35-3/4 x 8-1/8 x 11-1/2 Inches
- Carton Dimensions (WDH): 38-1/8 x 10-7/8 x 14-5/8 Inches
- Net / Gross Weight: 20.9 / 27.6 lbs
-
Outdoor Unit
- Part Number: YN018GLUI17RPD
- Breaker Needed: 20A (double-pole)
- Sound Level: 57 dB(A)
- Net Dimensions (WDH): 31-7/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/4 x 25-1/8 Inches
- Net / Gross Weight: 57.3 / 68.8 lbs
Dimension Chart
