Product information
Summary
- Ultra High Efficiency Quantum Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 23,000 BTU/H with 23 SEER2 / 12 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall-Mounted Ductless Air Conditioning & Heating System

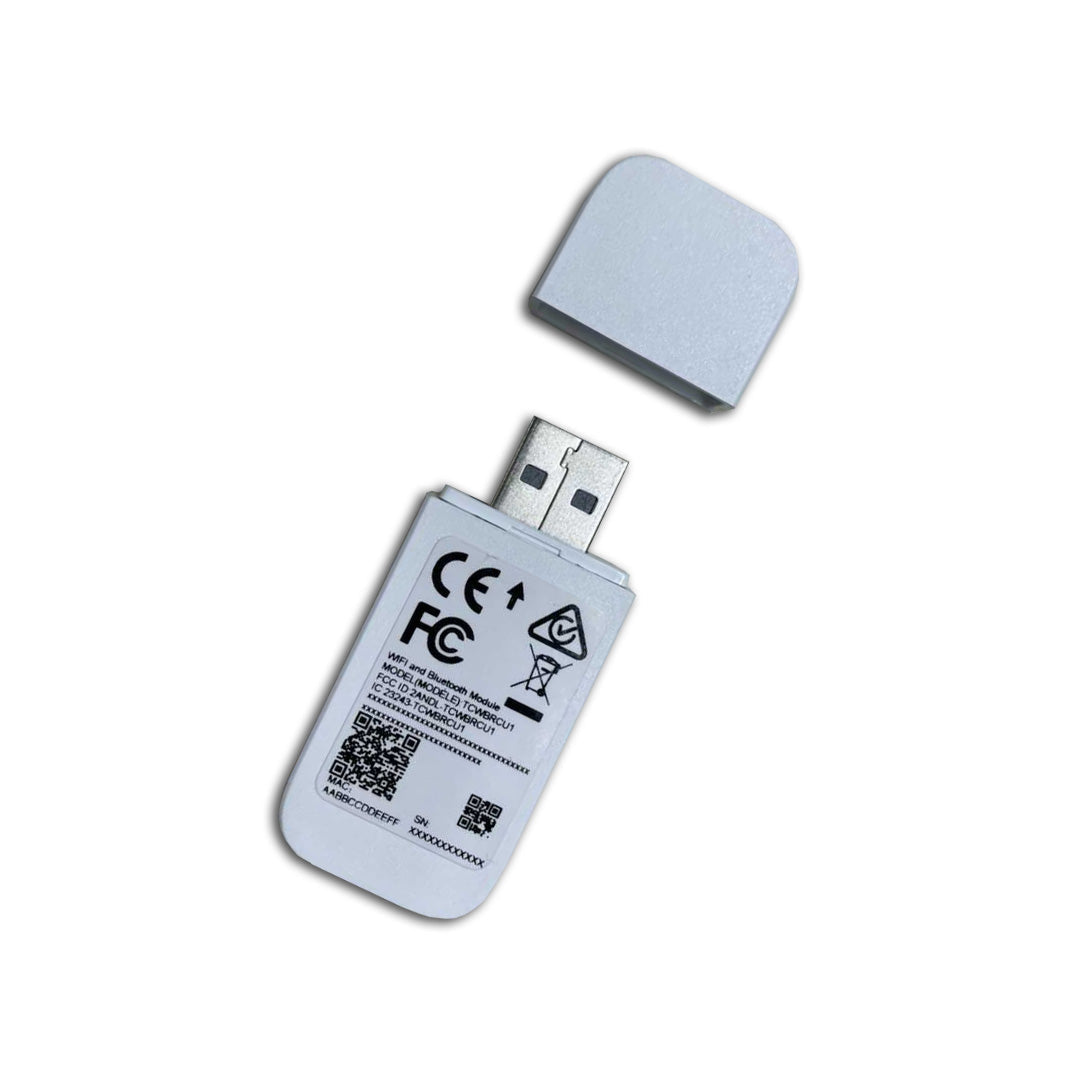

- Wi-Fi Enabled and Controllable By Smartphone via the Free Pioneer Airlink App
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

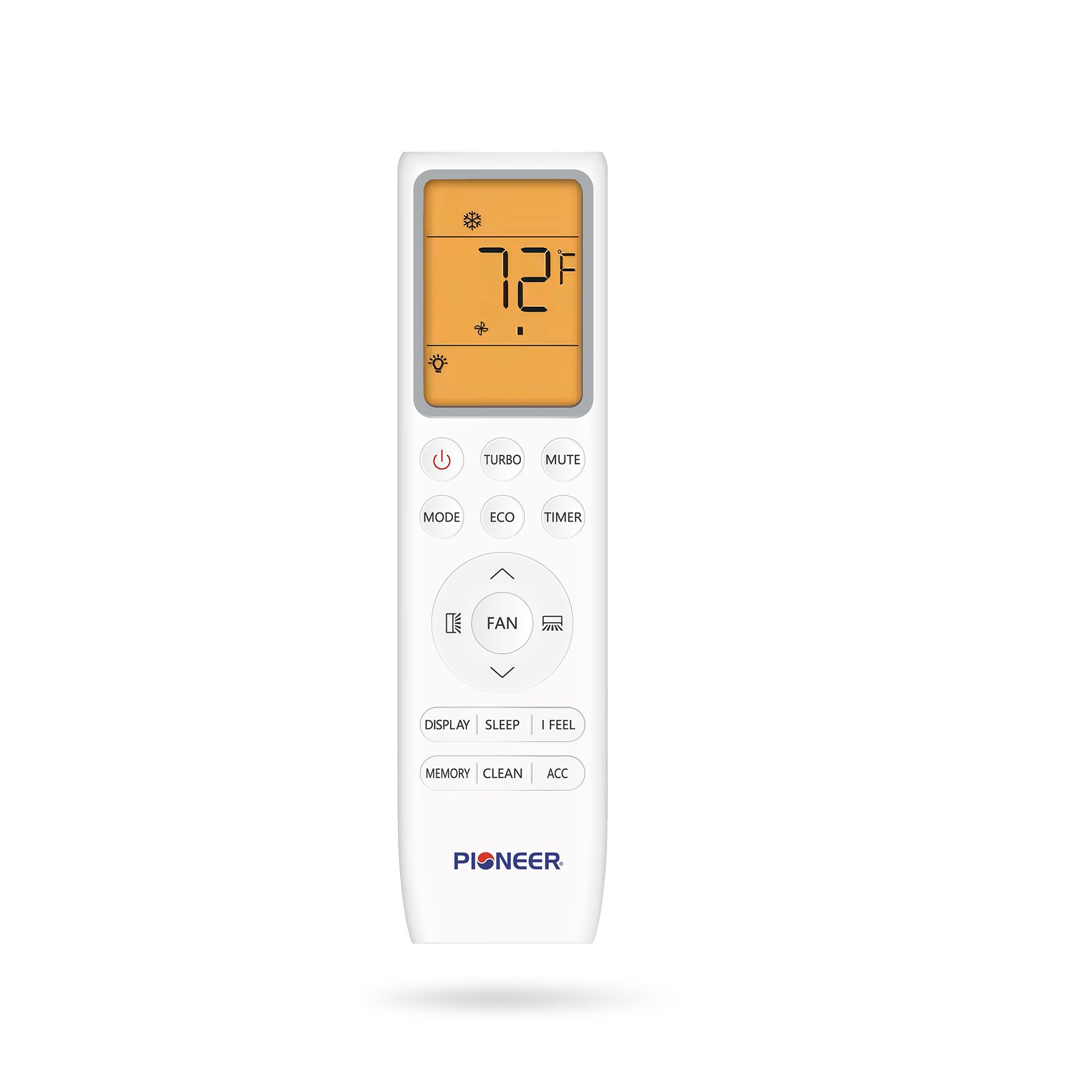

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
-

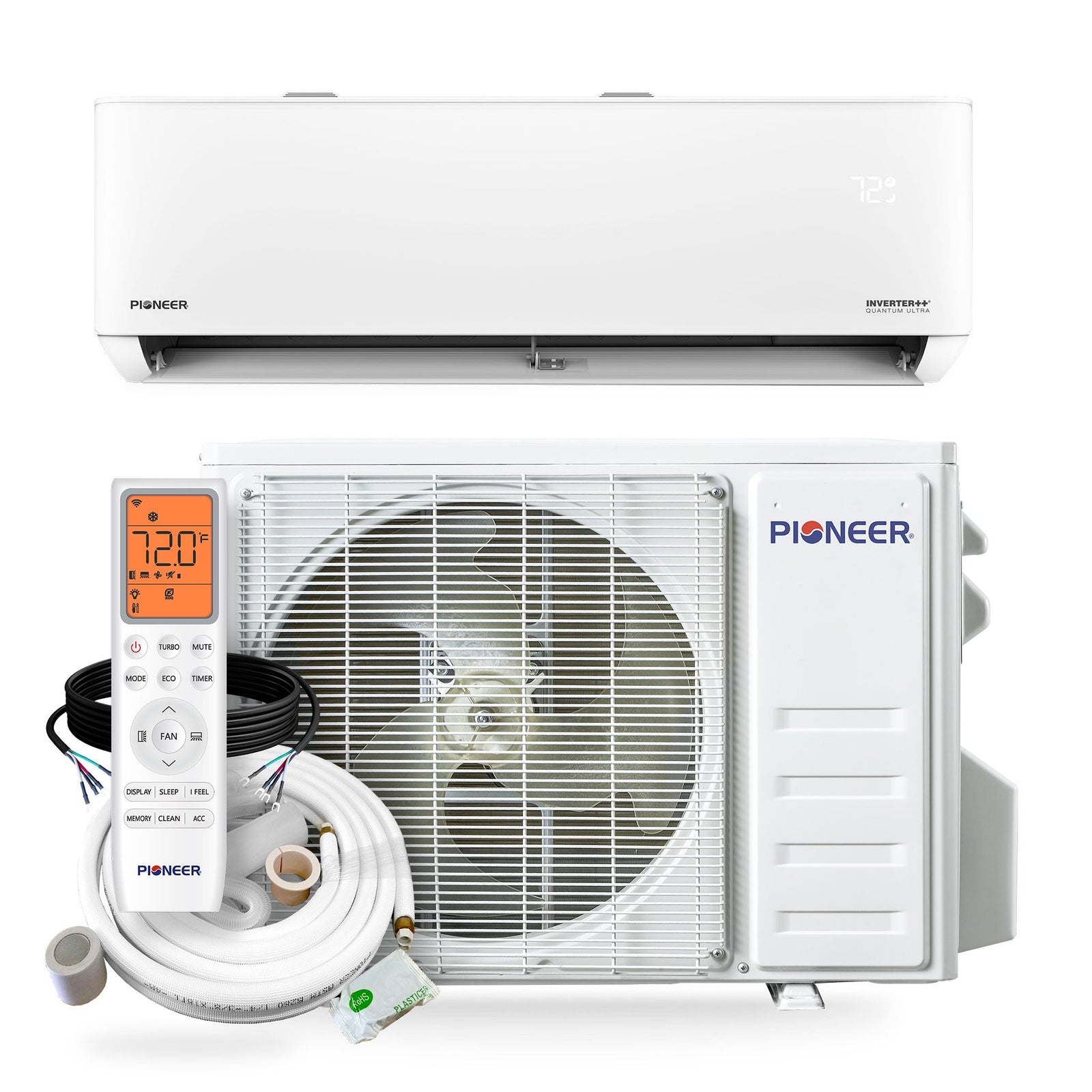

System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 23,000 BTU/h
- Cooling Capacity Range: 4,700~25,000 BTU/h
- Cooling SEER2: 23.0 BTU/W.h
- Cooling EER2: 12.0 BTU/W.h
- Heating Rated Capacity: 25,000 BTU/h
- Heating Capacity Range: 4,700~26,500 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.2 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
- Refrigerant Type: R454b
- Recommended Room Size: 750~1,000 Sq.F
- Minimum Room Size: 62 sq ft
- Minimum Installation Height: 6 ft

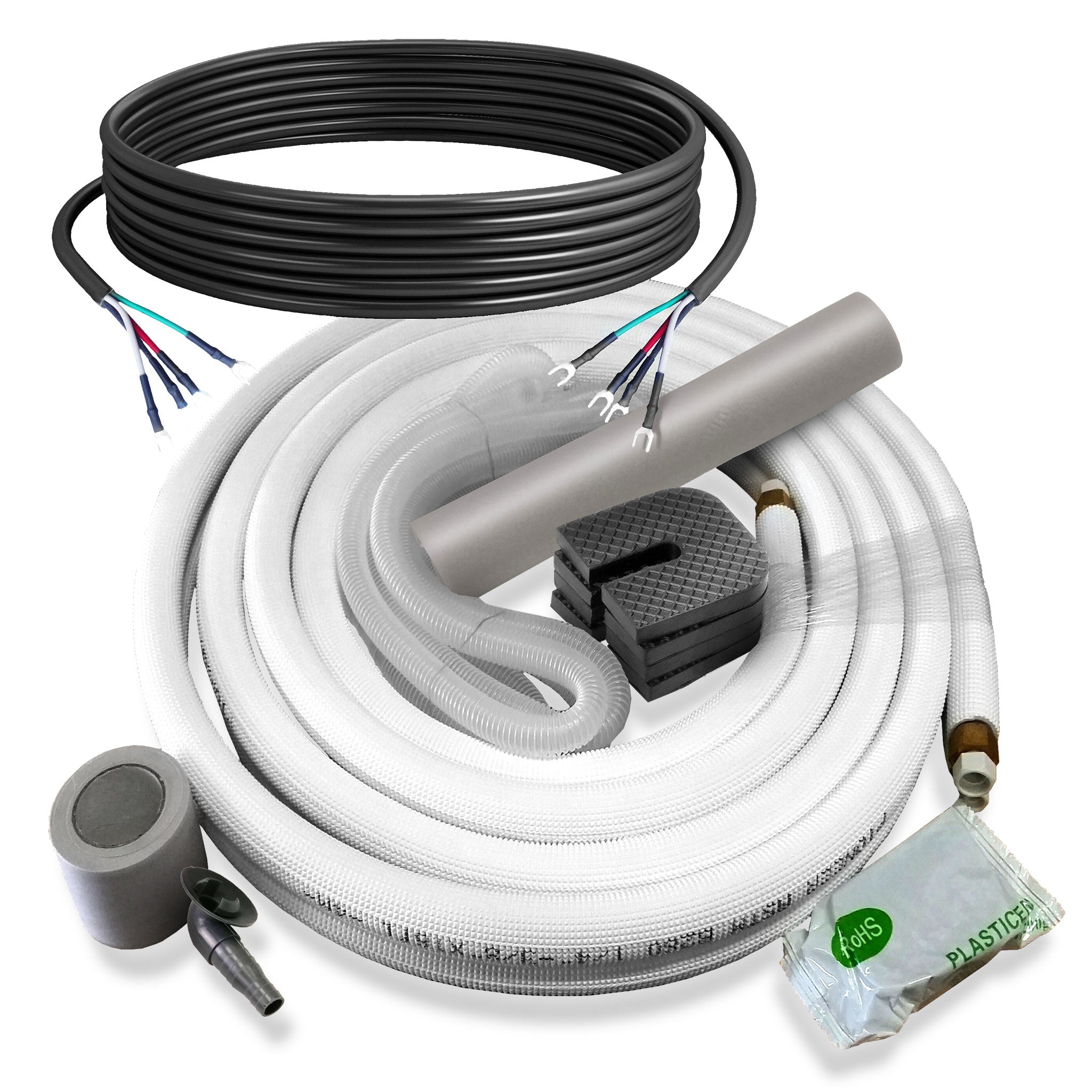

- Piping Diameter: 1/4 x 5/8"
- AHRI Reference: 217048753
-

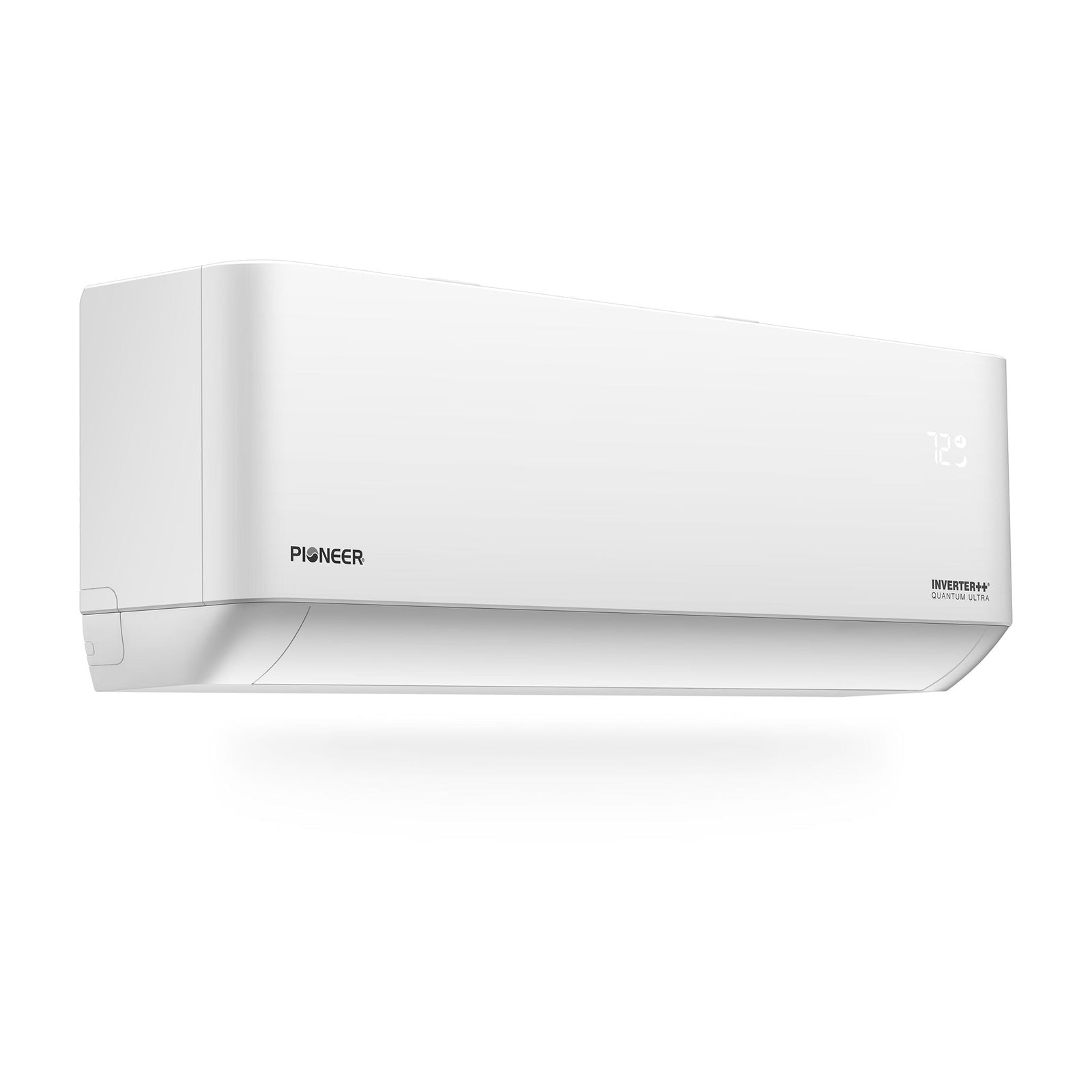

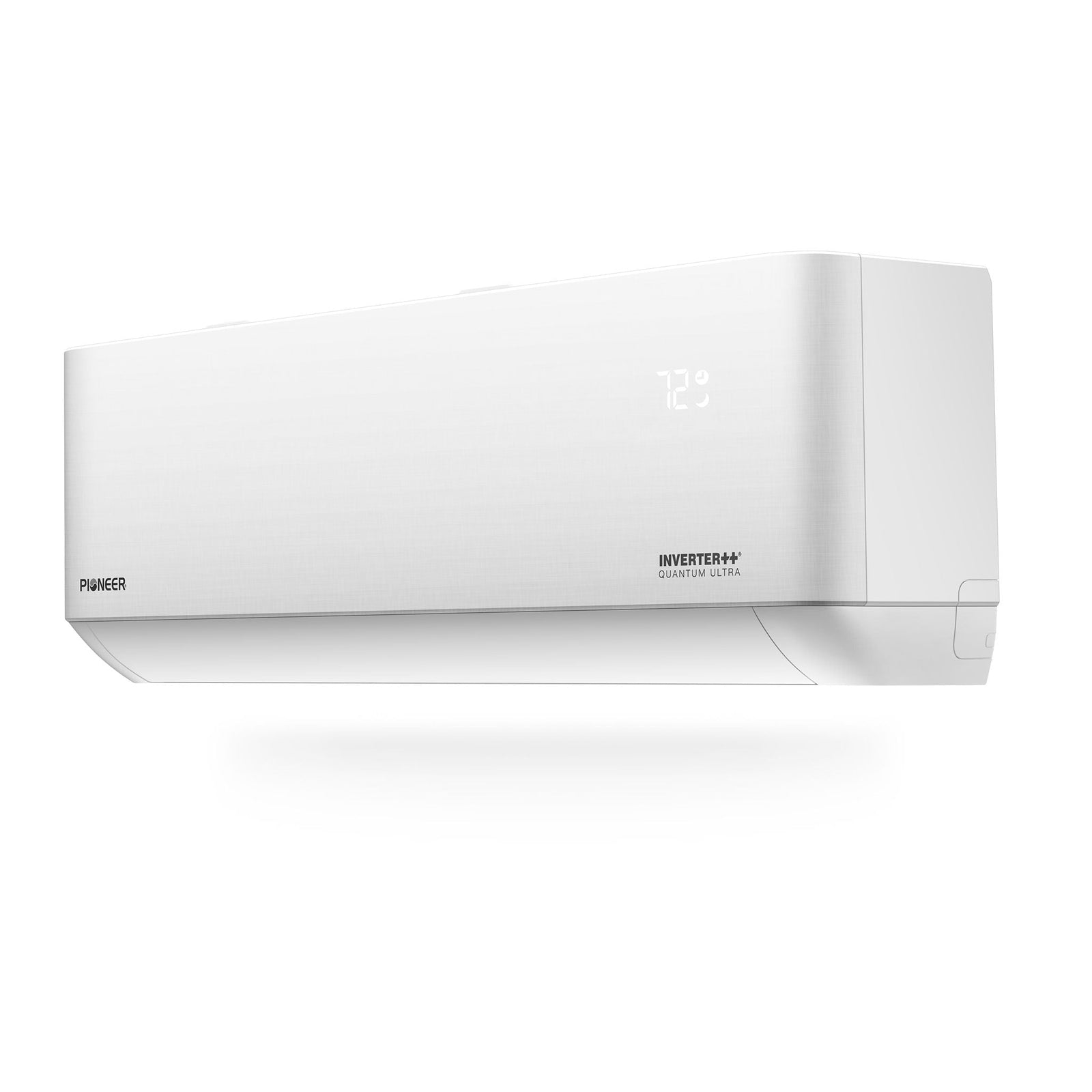

Indoor Unit
- Part Number: WT024GLSI24HLG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
- Product Dimensions (WDH): 43"-1/8 x 8"-3/4 x 13"-1/8 Inches
- Carton Dimensions (WDH): 45"-7/8 x 11"-5/8 x 16" Inches
- Net / Gross Weight: 30.9 / 35.3 lbs.
-

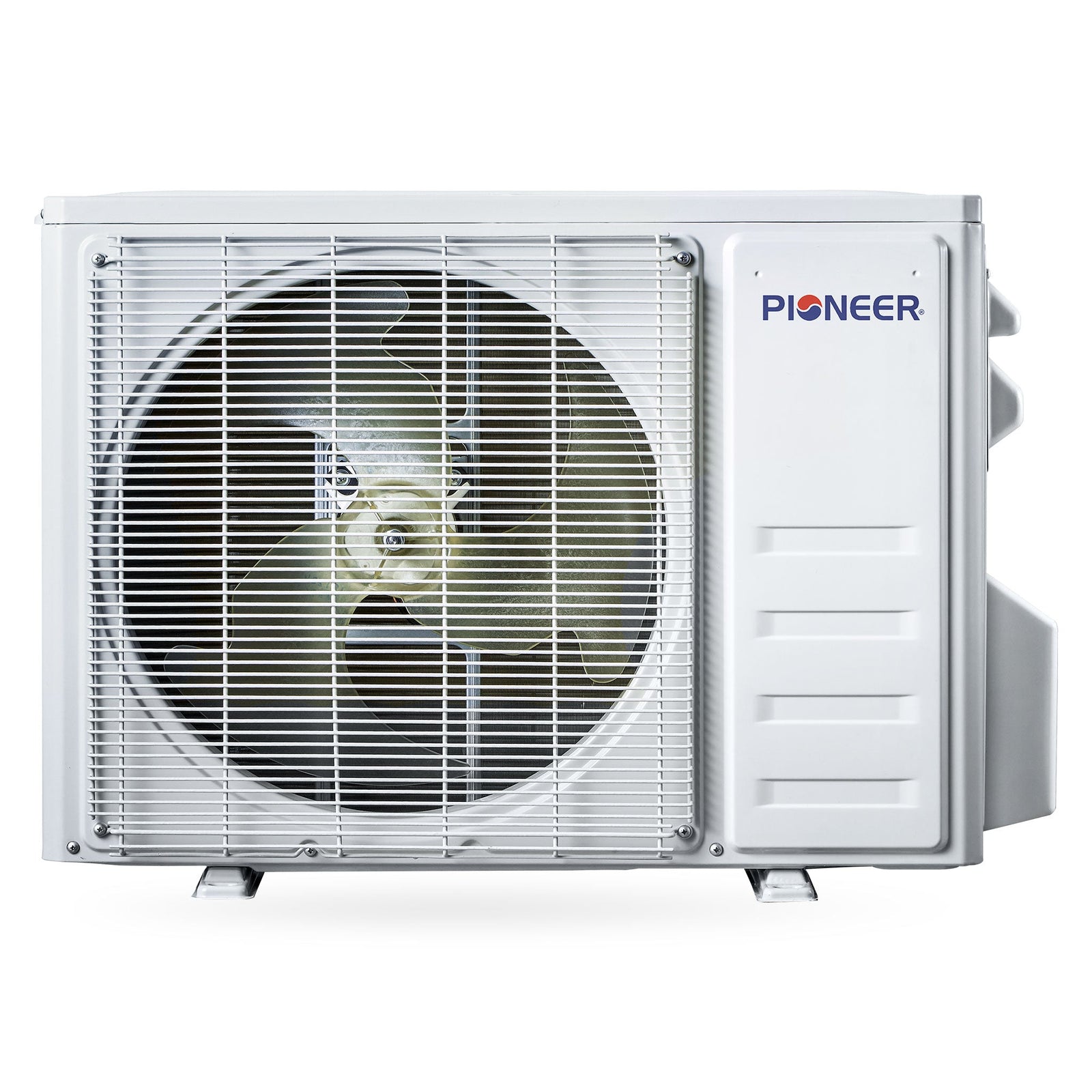

Outdoor Unit
- Part Number: YN024GLSI24RPG
- Breaker Needed: 20A (double-pole)
- Sound Level: 54 dB(A)
- Net Dimensions (WDH): 38"-1/2 x 16"-5/8 x 31"-5/8 Inches
- Carton Dimensions (WDH): 40"-1/4 x 18"-7/8 x 31"-7/8 Inches
- Net / Gross Weight: 104.7 / 113.5 lbs.
Dimension Chart
