Product information

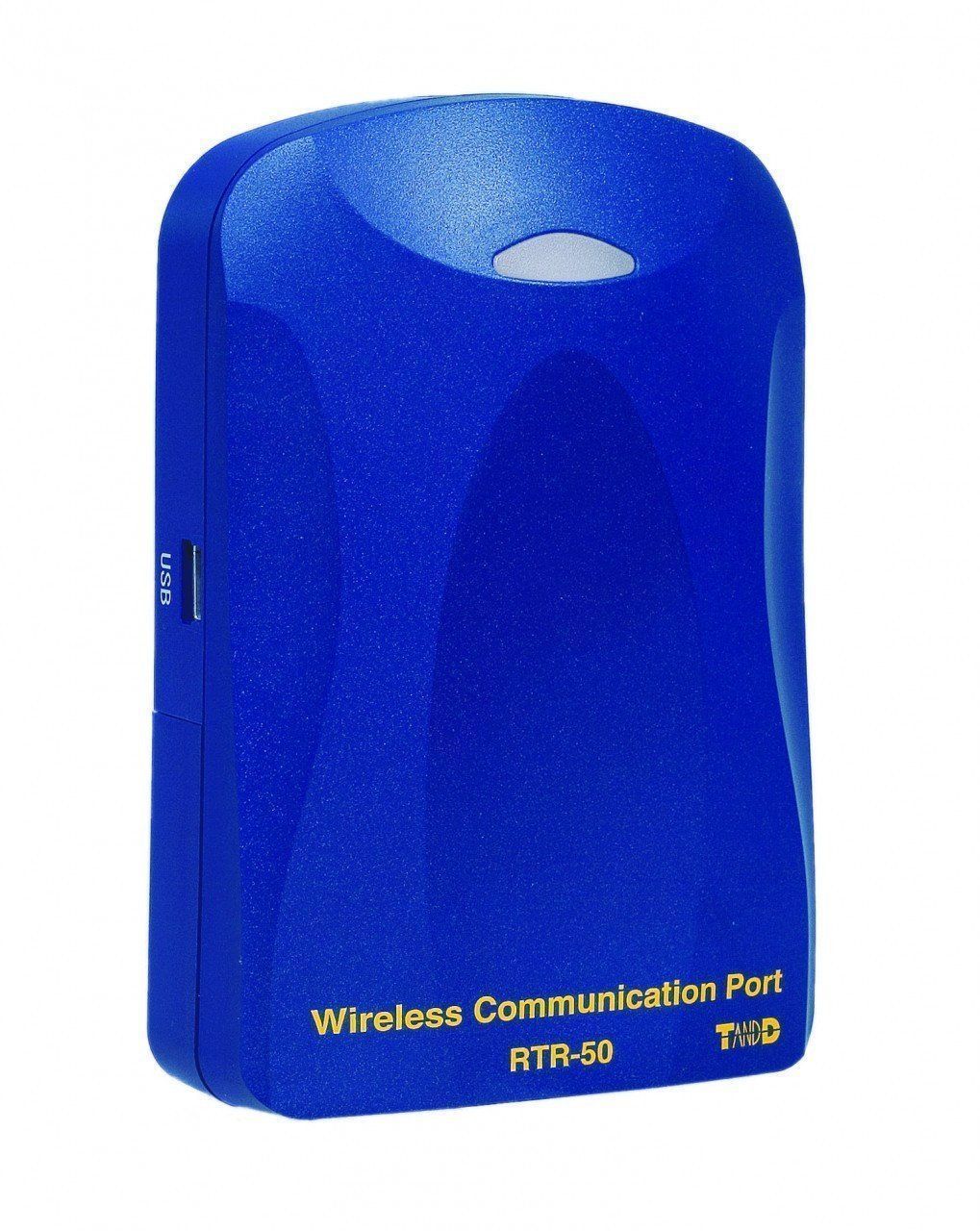

RTR-50
Base Station and Repeater
Closeout. All sales are final. Brand new and unused.
The Wireless Communication Port RTR-50 serves as a base unit for wireless communication with the T&D compact waterproof Wireless Data Loggers RTR-5x Series. Additionally, by positioning an RTR-50 between the designated Base Unit RTR-50 and the RTR-5 Series Remote Data Logger unit, any RTR-50 can function as a Repeater to significantly increase the effective range of your logging system.
Specifications
| RTR-50 | |
|---|---|
| Compatible Devices | RTR-51(L)/51A(L)/52(L)/52A(L)/52Pt(L)/53(L)/53/53A(L)/RVR-52A(L) |
| Functions | Wireless Communication: Download Data, Monitoring / Warning Monitoring, Start / Stop Recording, Wireless Repeater Function Optical Communication: Download Data / Start / Stop Recording |
| Wireless Specifications | ETSI EN 300-220 [ Frequency Range: 433.050 to 434.79MHz ], FCC Part15 Section249 / IC RSS-210 [ Frequency Range: 902 to 928MHz ] |
| Power | Base Unit : USB bus power, AC Adaptor(AD-0604 or AD-0638(*1) ) Repeater : 2 AA batteries, AC Adaptor(AD-0604 or AD-0638(*1) ) |
| Battery Life | 6 Months of continued use on 2 AA alkaline batteries when used as Repeater for five minutes a day. |
| Communication Time | Wireless Communication: 1 unit of full data takes about 420 seconds (when Repeater not used) When communicating via Repeaters, the approximate time for that communication is calculated as follows: "420 seconds + (Number of Repeaters x 420 seconds)". Optical Communication: 1 unit of full data takes about 160 seconds |
| LED | Green LED (Blinks during Wireless Communication and PC Communication) |
| Interface | USB miniB Connector / Serial [Mini serial] (19200bps) |
| Operating Environment | Temperature: -10 to 60 °C (-30 to 60 °C when external power connected) Humidity: 20 to 80%RH (No condensation) |
| Dimensions | H 96 - W 66 - D 25mm |
| Weight | Approx. 60g (Batteries not included) |
| Standard Kit | USB Communication Cable - 1, RTR-50 for Windows Software CD-ROM - 1, Users Manual - 1 |
| Compatible OS | Microsoft Windows 7 32/64bit English Microsoft Windows Vista 32bit English Microsoft Windows XP 32bit(SP2 or above) English |
|
Note: If you wish to use RTR-52Pt as a Remote Unit with RTR-50, it is necessary to download and use "RTR-50 for Windows" Version 1.10 or later.
