Product information

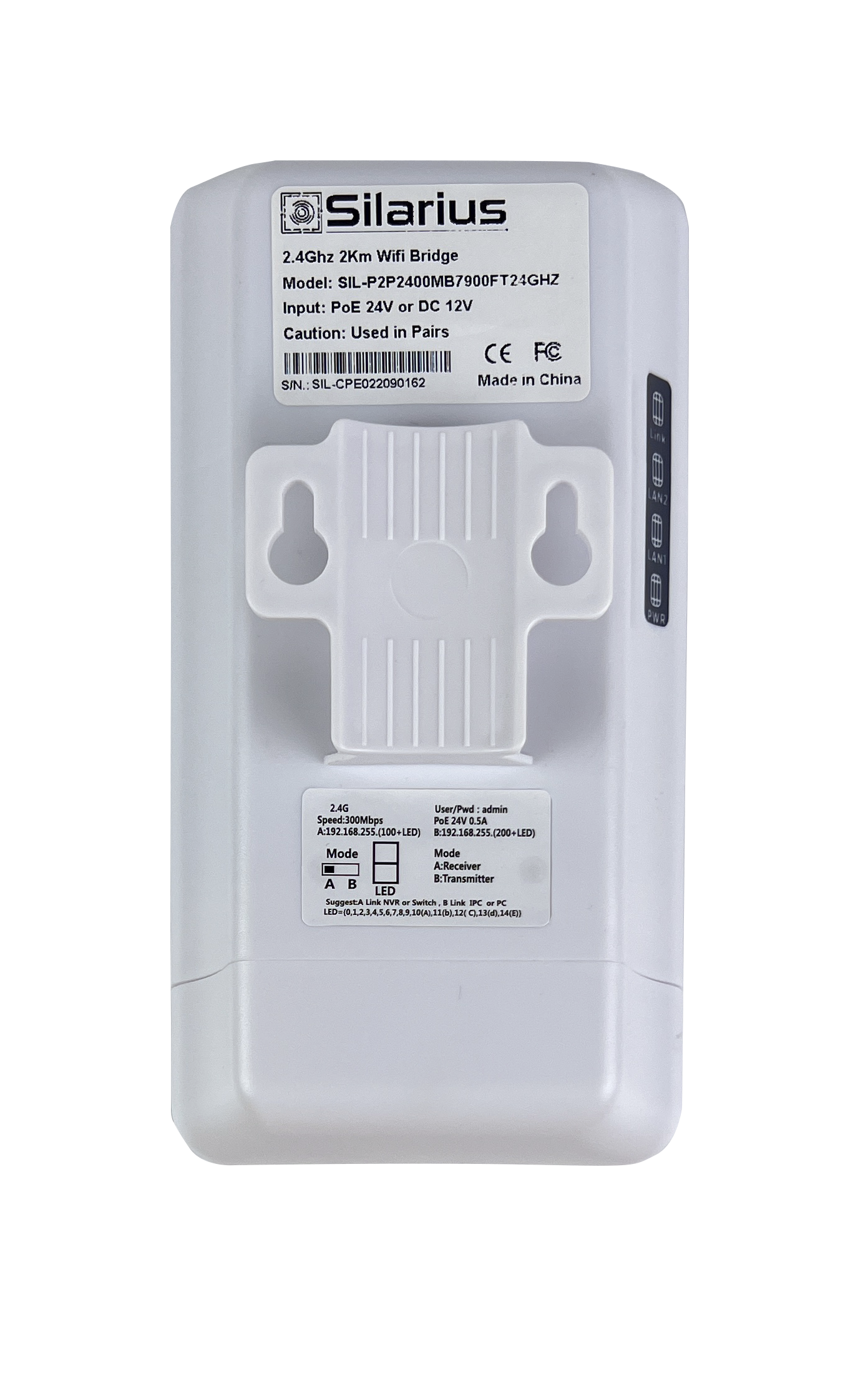

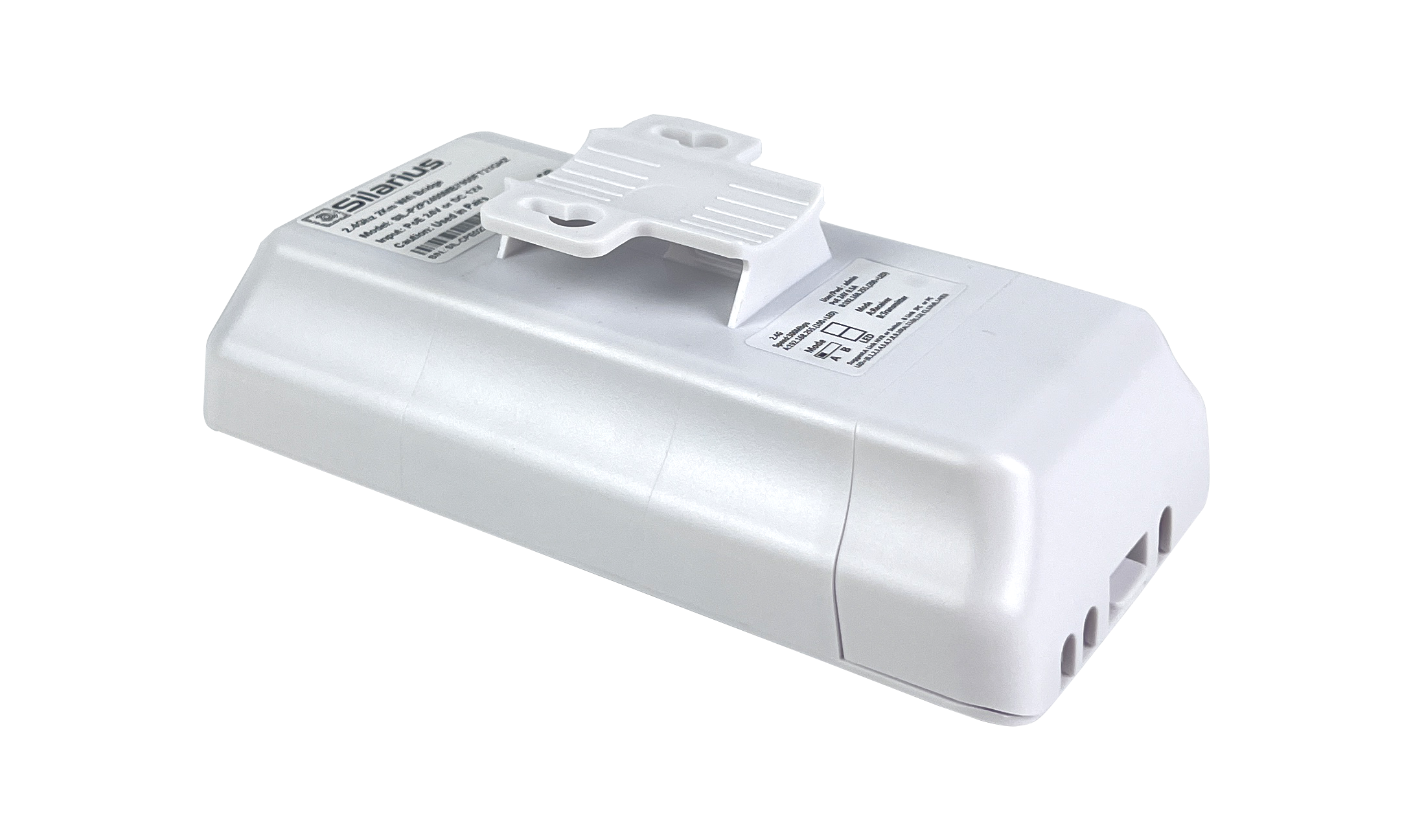

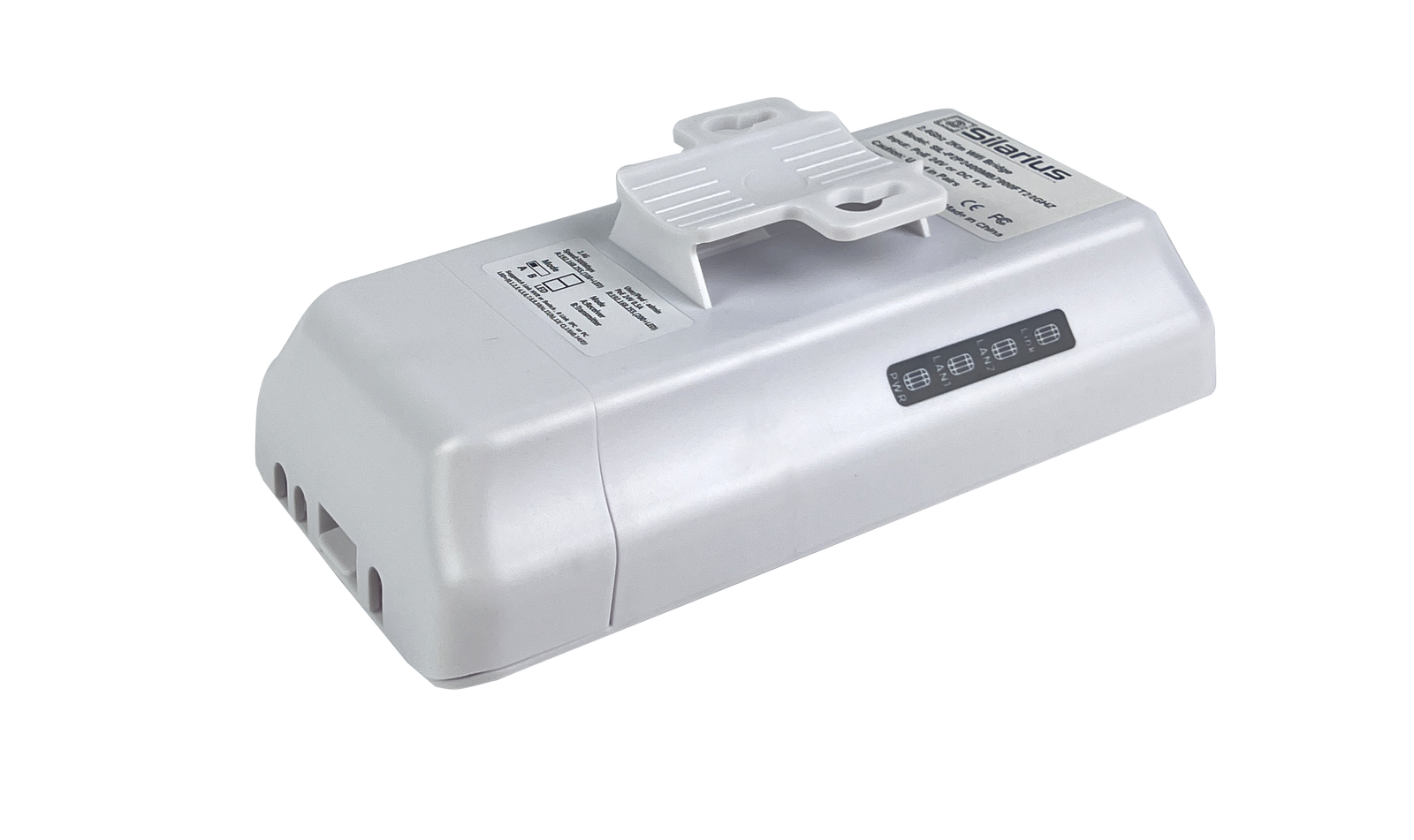

SIL-P2P2400MB7900FT24GHZ is an economic outdoor CPE/AP with 300Mbps Data rate. Comply with IEEE 802.11b/g/n standard, build in 10dBi panel antenna, the transmit/receive wireless distance more than 1000 meters.
It supports Router, Universal Repeater, WISP, AP and Repeater Mode, effective solution for PTP, PTMP application and outdoor long range WIFI coverage application.
SIL-P2P2400MB7900FT24GHZ with ABS waterproof, dust-proof and sunscreen shell, temperature adaptive and board protective, Meantime, it supports 24V passive POE, easy in setup even no power socket nearby, ideal for outdoor use;

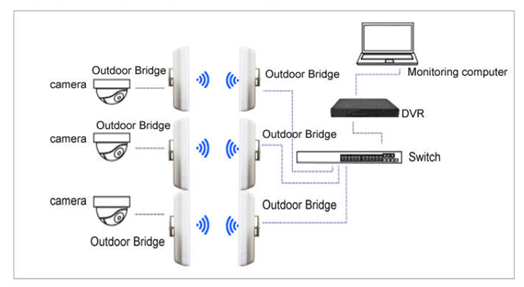

Besides that, SIL-P2P2400MB7900FT24GHZ with digital display, easy to be pairing, simple configuration, make this device is widely used in CCTV, Village long range data transmit, Park, Squares...
Product Features：
※ Very cost-effective hardware configuration
Industrial grade circuit design, 8MB Flash/64MB SDRAM, support IEEE802.11b/g/n protocol, can provide 300Mbps wireless access speed, excellent anti-high and low temperature design, enhance the user experience in extreme environment.
※ 10dBi High Gain Antenna, Long Range Wi-Fi Device in market
SIL-P2P2400MB7900FT24GHZ with 10dBi high gain antenna, the Wi-Fi range is more than 1000 meters, it is the device with very stable performance in long range, but competitive in price.
※ Support Power over Ethernet, Cost Save
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.

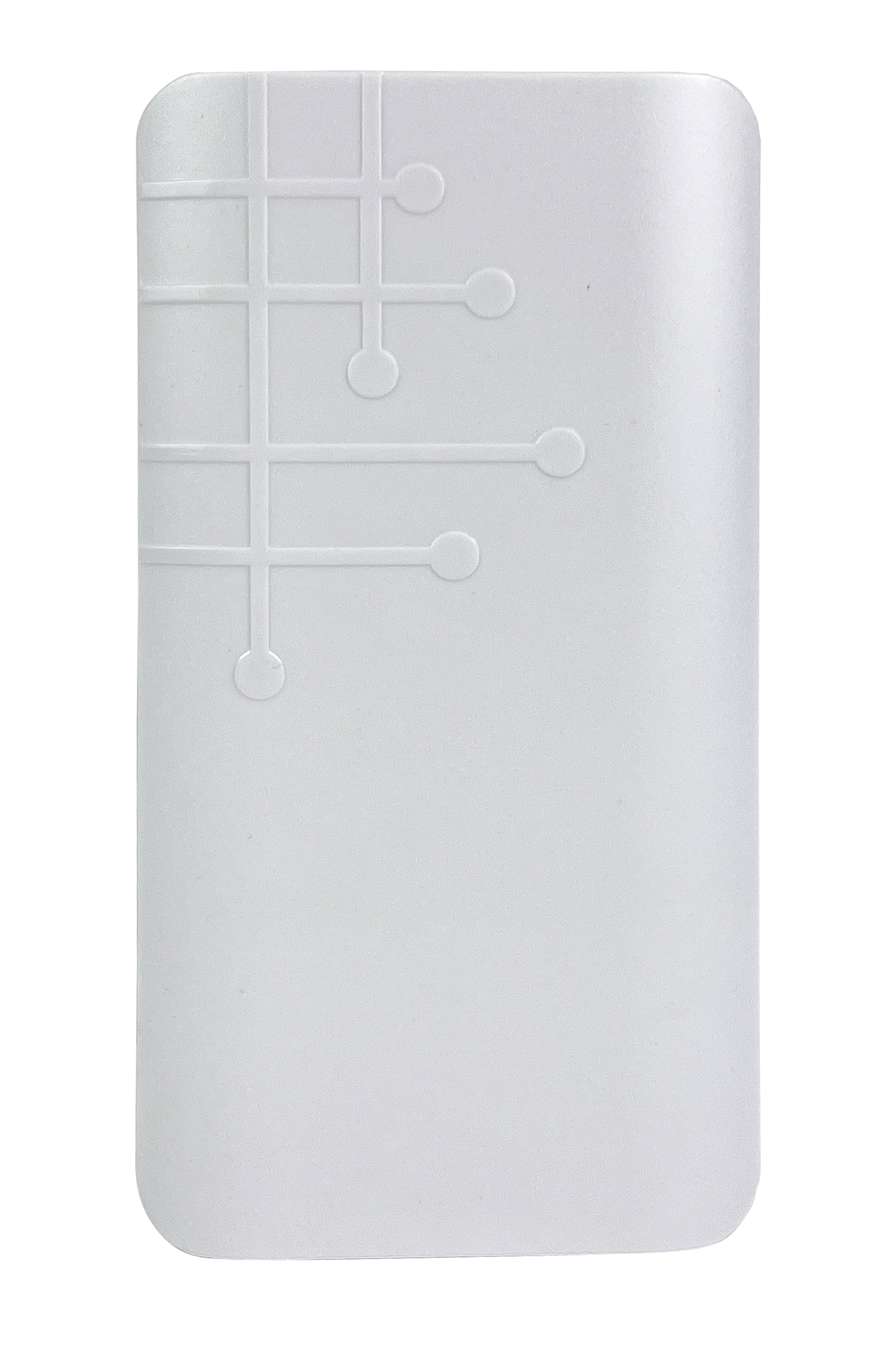

※ Stylish compact, simple and flexible installation

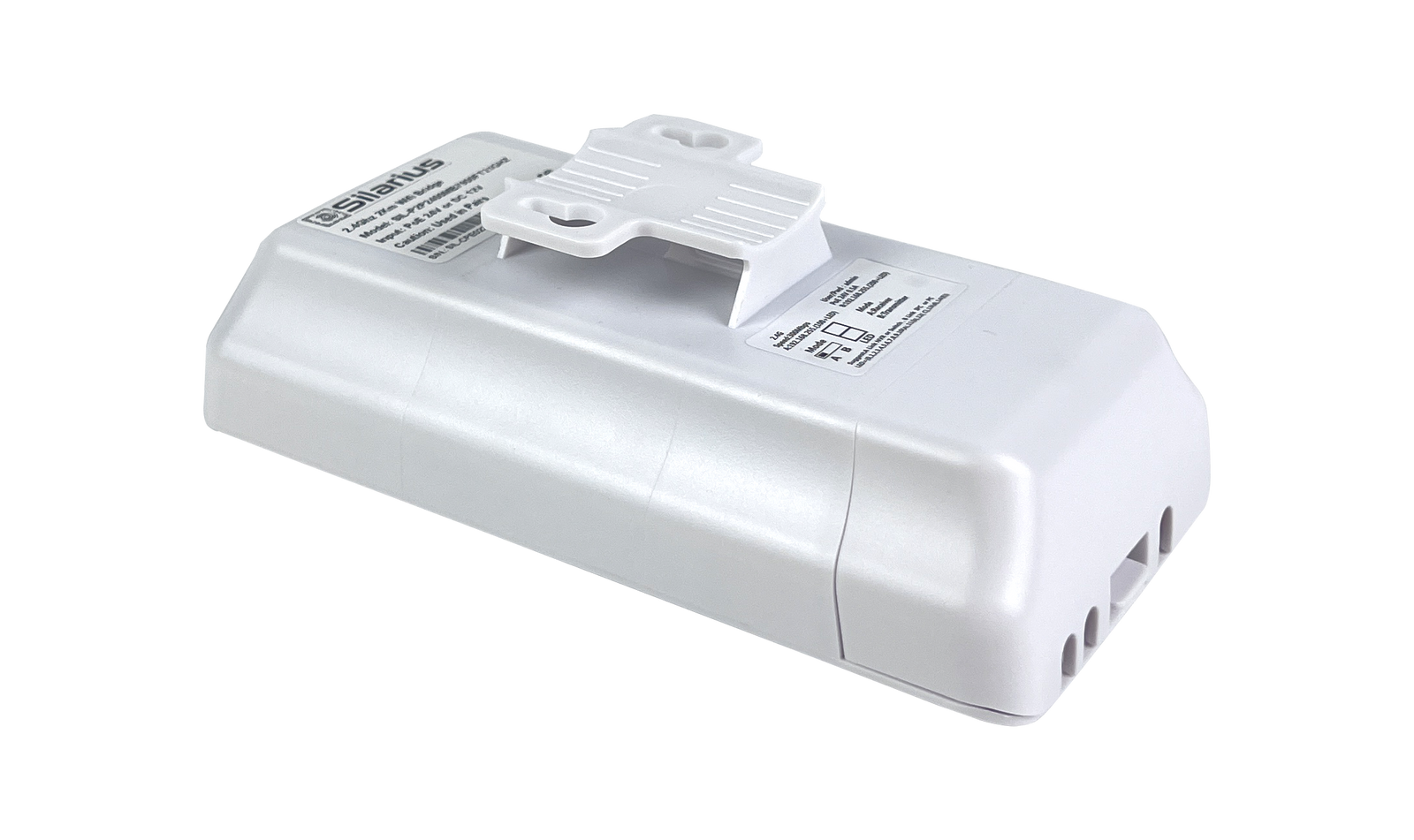

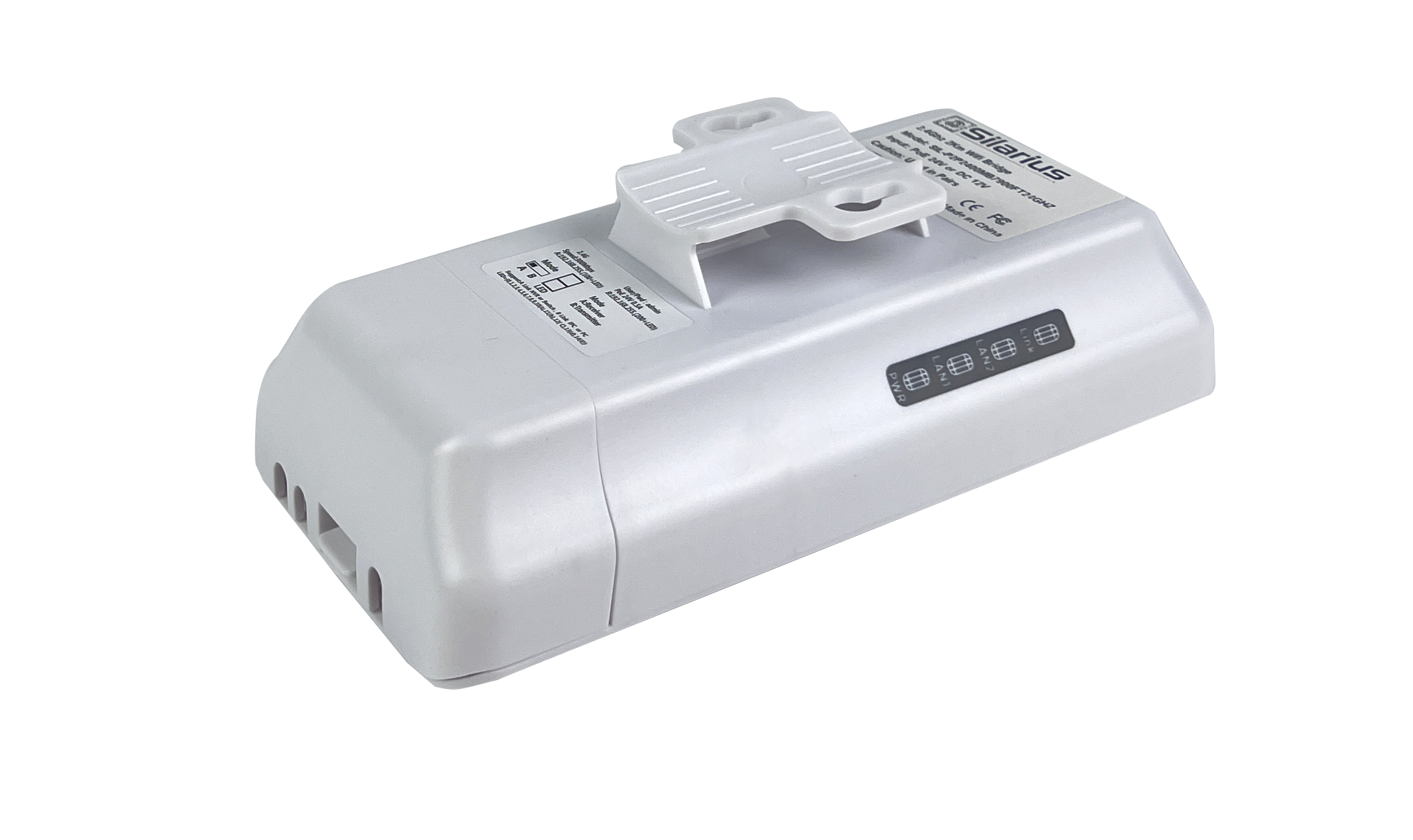

Stylish appearance, supports the wall/pole fixed installation mode, flexible installation, greatly reduces the construction difficulty and improves the construction efficiency without affecting the original design.
※ IP66 dust-proof and waterproof, suitable for a variety of harsh environments
The enclosure is IP66 rated for outdoor dust, water and sun protection. It can work normally in extreme environments as low as -30 ℃ up to 65 ℃. It can easily adapt to the harsh outdoor environment and ensure stable operation of the network for 24 hours.
|
Model |
SIL-P2P2400MB7900FT24GHZ |
|
|
Hardware Specifications |
||
|

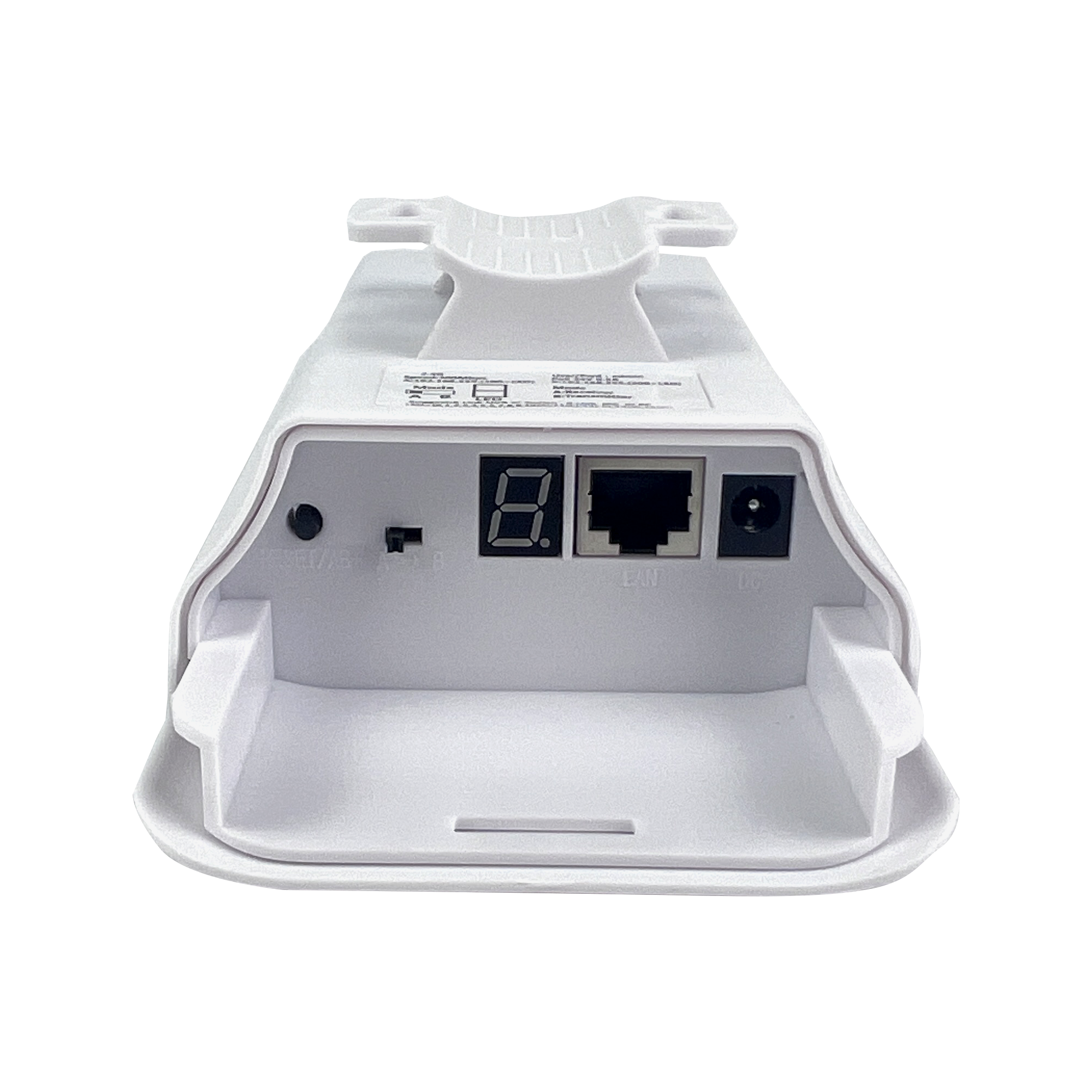

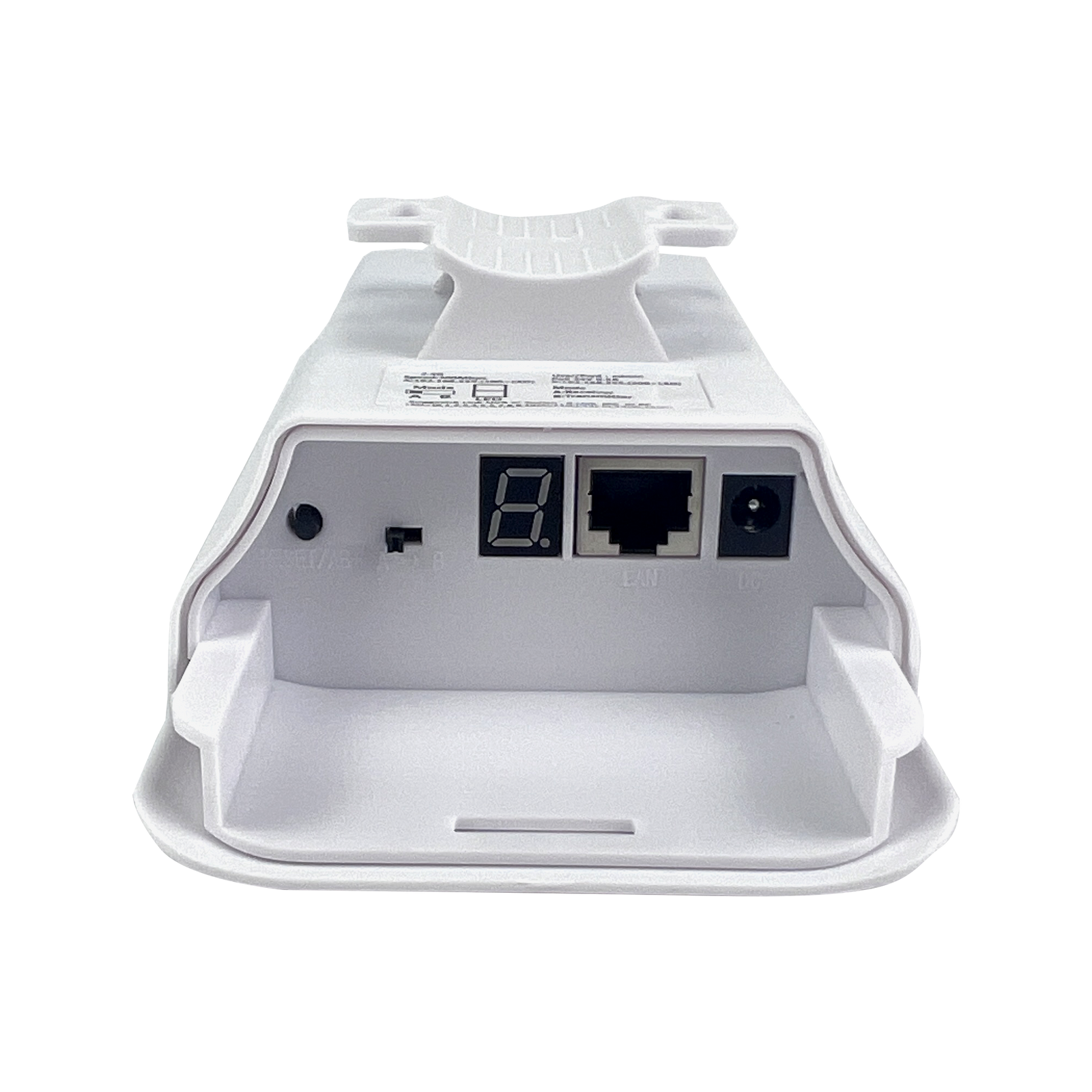

Interface |
LAN PoE 10/100Mbps RJ45 |
|
|
Button |
1*Reset Button， Long press to reset, short press to adjust digital display number |
|
|
Power Consumption |
<12W |
|
|
Power Supply |
POE：24V 0.5A，DC：12V 1A |
|
|
working environment |
Temperature：-40℃～+75℃（operating），-40℃ ～+80℃（storage）Humidity（no-condensing）：5％～90％（operating），5％～95％（storage） |
|
|

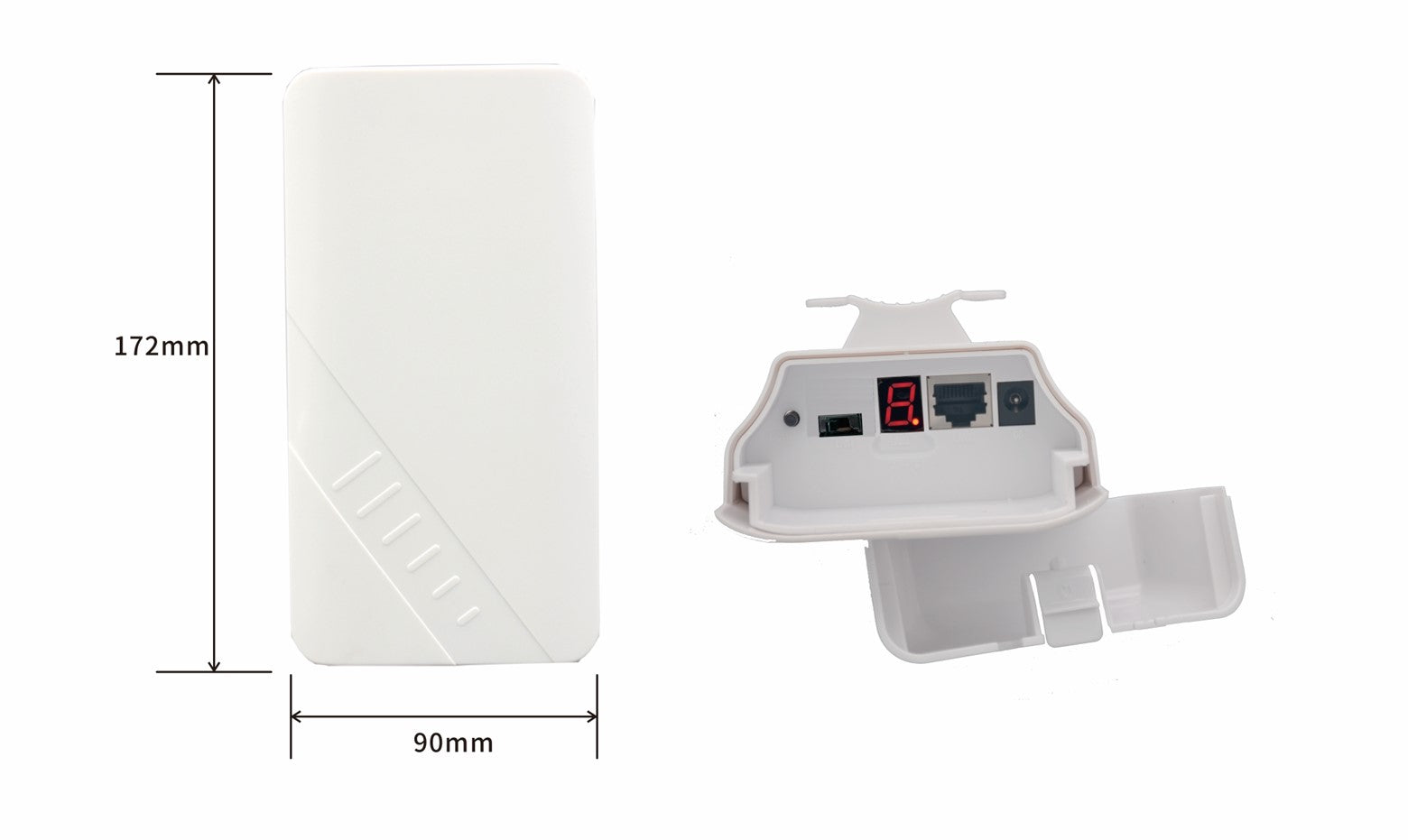

Size |
172*90*44(mm) |
|
|
Weight |
0.5KG |
|
|
Toggle switch |
Define product AP Mode and Repeater Mode |
|
|
Radio frequency Feature |
||
|
Frequency Range |
ISM band: 2.400 ~ 2.4835 GHz |
|
|
Channel |
2G:1、2、3、4、5、6、7、8、9、10、11、12、13 |
|
|
Modulation method |
OFDM = BPSK, QPSK,16-QAM,64-QAM; DSSS = DBPSK, DQPSK, CCK |
|
|
Output power |
2.4G: 11n @MCS0~2/MCS8~10:27±1dBm @MCS7/MCS15:23±1dBm 11g @6~24M:27±1dBm @54M:23±1dBm 11b @1~11M:27±1dBm |
|
|
EVM |
802.11n: ≤-29 dB 802.11g: ≤-26 dB802.11b |
|
|
Frequency offset |
±20ppm |
|
|
Software Feature |
||
|
Working Mode |
Router, Universal Repeater, WISP, AP and Repeater |
|
|
Users |
32 |
|
|
Network |
Controller address /DHCP/ static IP |
|
|
System |
Restore factory/system restart |
|
|
Spec Sheet
|
Download Here | |
