Product information

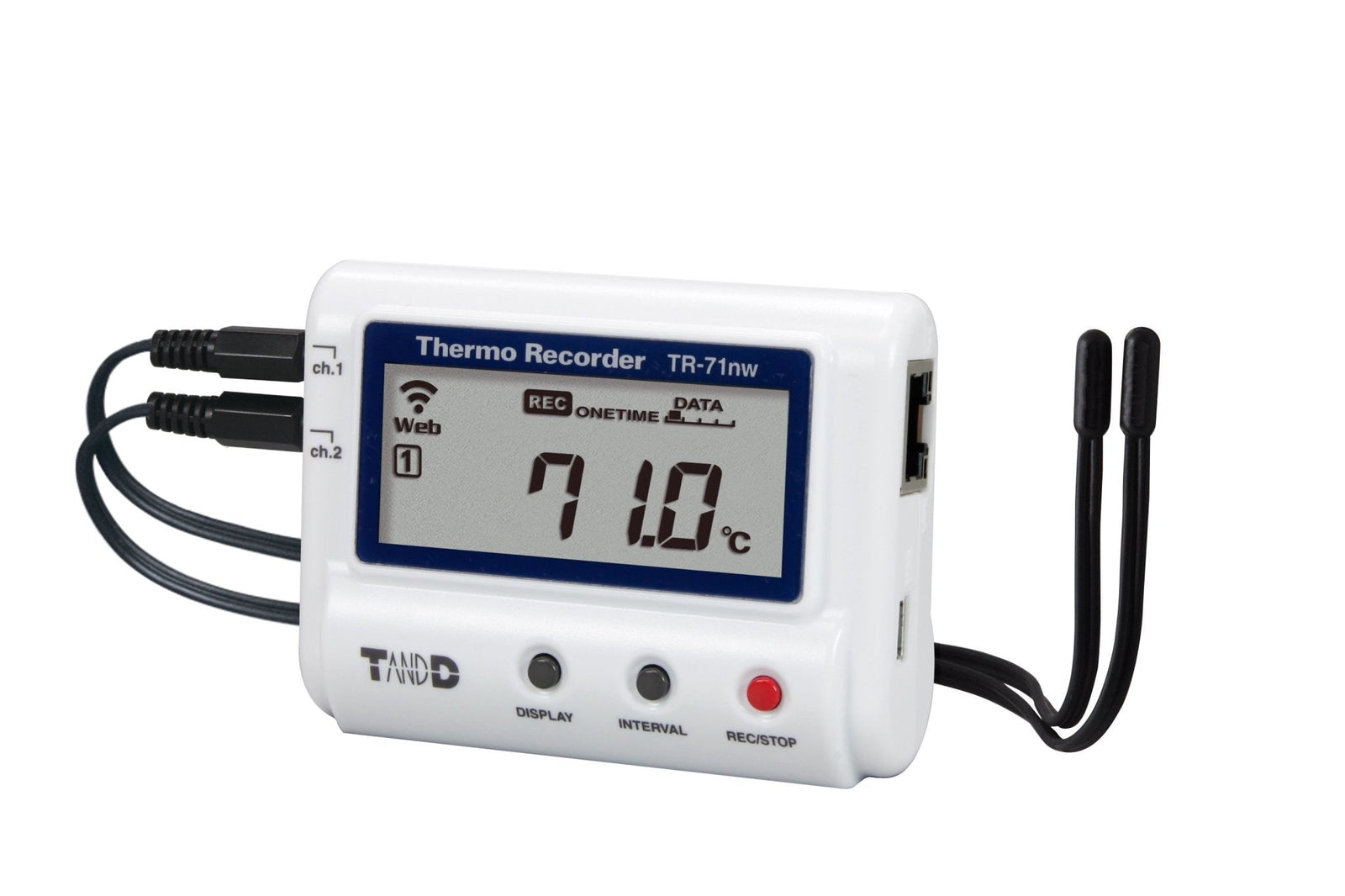

The TR-71nw is a temperature data logger that can monitor two temperature zones, while the TR-72nw is a temperature/humidity logger. By using T&D WebStorage Service, a cloud service provided by T&D free of charge, it is possible to access stored data anytime from anywhere.
Power Over Ethernet: PoE IEEE 802.3af (TR-71nw or TR-72nw only)
Meets or exceeds CDC requirements for VFC plus automated record keeping and real time monitoring.
| Sensor | Thermistor (Internal / External) |
|||||
|---|---|---|---|---|---|---|
| Measurement Channels | Temperature 2ch (Internal 1ch / External 2ch) |
|||||
| Measurement Units | °C, °F | |||||
| Measurement Range | Internal Sensor | -10 to 60°C *1 | ||||
| External Sensor | -40 to 110°C (Supplied Sensor) -60 to 155°C (Optional Sensor: Fluoropolymer Coated Type) |
|||||
| Accuracy | Avg. ±0.3°C at -20 to 80°C Avg. ±0.5°C at -40 to -20°C / 80 to 110°C |
|||||
| Measurement Resolution | 0.1°C | |||||
| Responsiveness | Thermal Time Constant: Approx. 75 sec. Response Time (90%): Approx. 190 sec. |
|||||
| LCD Display Items | Measurements (fixed or alternating display), Battery Warning Mark, etc. | |||||
| Logging Capacity | 8,000 data sets (One data set consists of readings for all channels in that type of unit.) | |||||
| Recording Interval | Select from 15 choices: 1, 2, 5, 10, 15, 20, 30 sec. or 1, 2, 5, 10, 15, 20, 30, 60 min. | |||||
| Recording Mode | Endless (Overwrite oldest data when capacity is full) or One Time (Stop recording when capacity is full) | |||||
| Auto-upload Interval | Select from 15 choices: OFF (No auto-upload), 1, 2, 5, 10, 15, 20, 30 min. or 1, 2, 3, 4, 6, 12, 24 hrs. | |||||
| Communication Interfaces |
Wireless LAN Communication TR-7wf |
Standard: IEEE 802.11b Security *2: WEP (64bit/128bit), WPA-PSK(TKIP), WPA2-PSK(AES) WPS 2.0: Push Button Configuration Protocol: HTTP *3, DHCP, DNS |
||||
|
Wired LAN Communication TR-7nw |
100BASE-TX/10BASE-T (RJ45 Connector) Protocol: HTTP *3, DHCP, DNS |
|||||
|
USB Communication TR-7wf/nw |
USB 2.0 Mini-B connector | |||||
| Power *4 | Battery: AA Alkaline × 2 (AA Ni-MH batteries may also be used) External: USB Bus (5V 200mA), AC Adaptor (AD-05A2 or AD-05C2), PoE IEEE 802.3af (TR-7nw only) |
|||||
| Battery Life *5 | With LAN communication: Approx. 10 days to 1.5 years *6 Without LAN communication: Approx. 1.5 years |
|||||
| Dimensions | H 58mm × W 78mm × D 26mm | |||||
| Weight |
TR-7wf: Approx. 55 g TR-7nw: Approx. 65 g |
|||||
| Operating Environment | Temperature: -10 to 60°C *7 Humidity: 90%RH or less (no condensation) |
|||||
| Accessories *8 | Temperature Sensor (TR-0106) × 2, AA Alkaline Battery (LR6) × 2, Registration Code Label, USB Mini-B Cable (US-15C), Manual Set (Warranty Included) | |||||
| Software | PC Software: TR-7wf/nw for Windows, T&D Graph, T&D Data Server Mobile App: T&D Thermo |
|||||
| Compatible OS *9 |
PC Software |
Microsoft Windows 10 32/64bit Microsoft Windows 8 32/64bit Microsoft Windows 7 32/64bit Microsoft Windows Vista 32 bit SP1 or later (T&D Data Server not compatible) |
||||
|
Mobile App |
Android OS, iOS | |||||
| Display Languages *10 | English | |||||
-
*1：For TR-71wf: When wireless LAN communication is used frequently, the measurement of the internal sensor may rise by around 0.3°C.
For TR-71wf and TR-71nw: When using external power, the data logger itself generates heat and the internal sensor will report a temperature much higher than ambient; we recommend using an external temperature sensor in this case. - *2: The WPS feature is not available when WEP(64bit/128bit) or WPA-PSK(TKIP) is selected in Access Point Settings. If you wish to use the WPS feature, please select WPA2-PSK(AES) or disable wireless security.
- *3: HTTP client. Proxy supported (for firmware version 1.05 or above for TR-7wf).
- *4: When using external power, the internal temperature of the logger rises.
- *5: Battery life varies depending upon multiple factors including frequency of communication, LAN environment, ambient temperature, recording interval, and battery performance. All estimates are based on operations carried out with a new battery and are in no way a guarantee of actual battery life.
- *6: Approx. 10 days when Auto-upload Interval is 1 min, 1 yr when 1 hr, 1.5 yrs when 12 hrs or more.
- *7: -10 to 45°C when using external power. (for TR-7nw)
- *8: Software is not included in the package, but can be downloaded free of charge from tandd.com.
- *9: For installation, it is necessary to have Administrator (Computer Administrator) rights.
- *10: We recommend using an operating system in the same language as the display language. Operation in different languages is not guaranteed.
