Precision meets speed with the Wera 9558 Click-Torque Set for Pipe Fittings (05136062001). Engineered specifically for HVAC technicians, plumbers, and refrigeration specialists, this 10–50 Nm torque wrench set simplifies tightening flare nuts, brass fittings, and pipe connections without risking over-tightening or strip-outs.

Featuring the robust Click-Torque X 2 handle with a standard 9x12 mm insert drive, this set includes Wera’s innovative self-setting Joker insert spanners that automatically adjust to both metric and imperial nut sizes.

Key Features & Benefits:

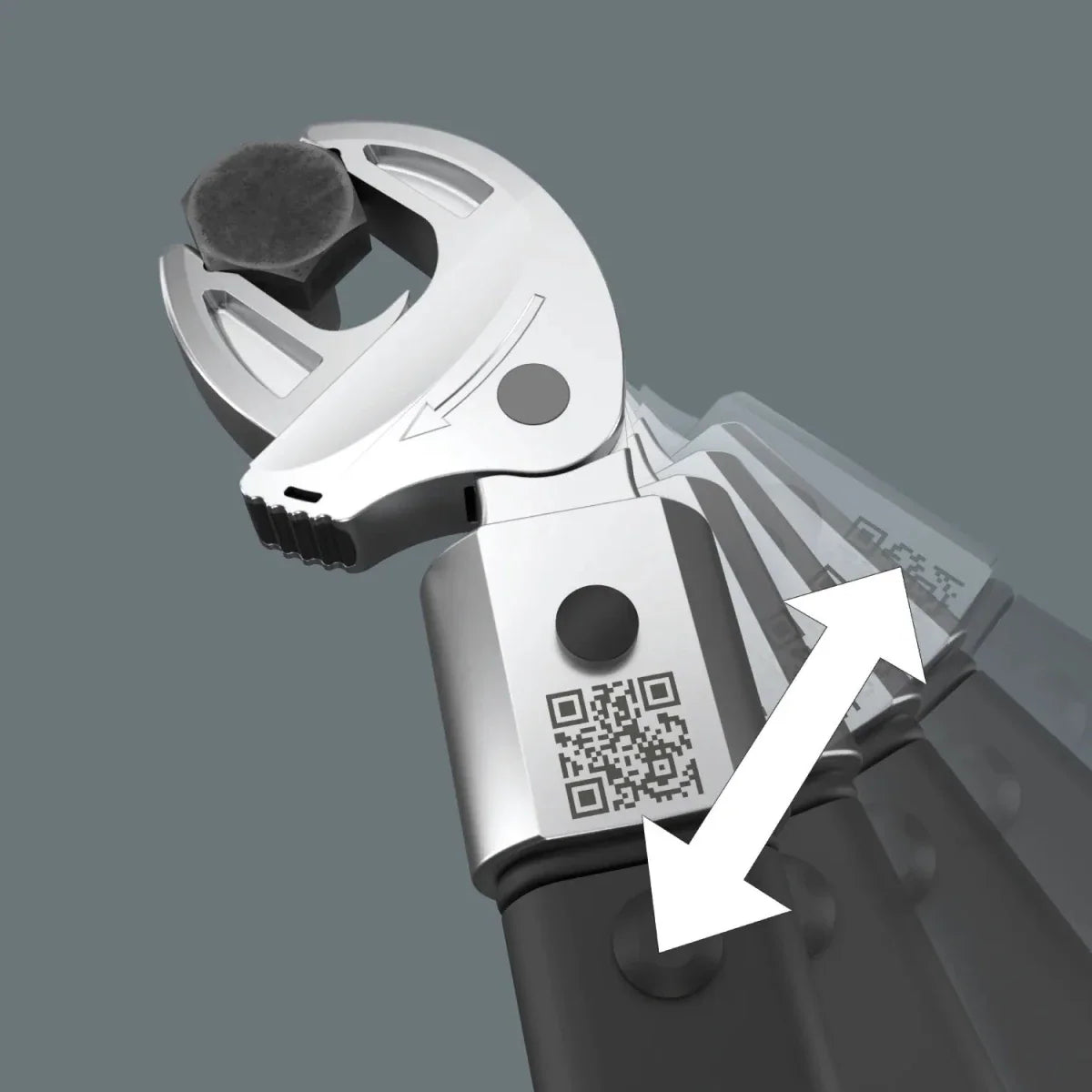

• Self-Setting Joker Spanners: Automatically grips continuous metric and imperial sizes within range, reducing the need to carry full wrench sets onto job sites or lift buckets.

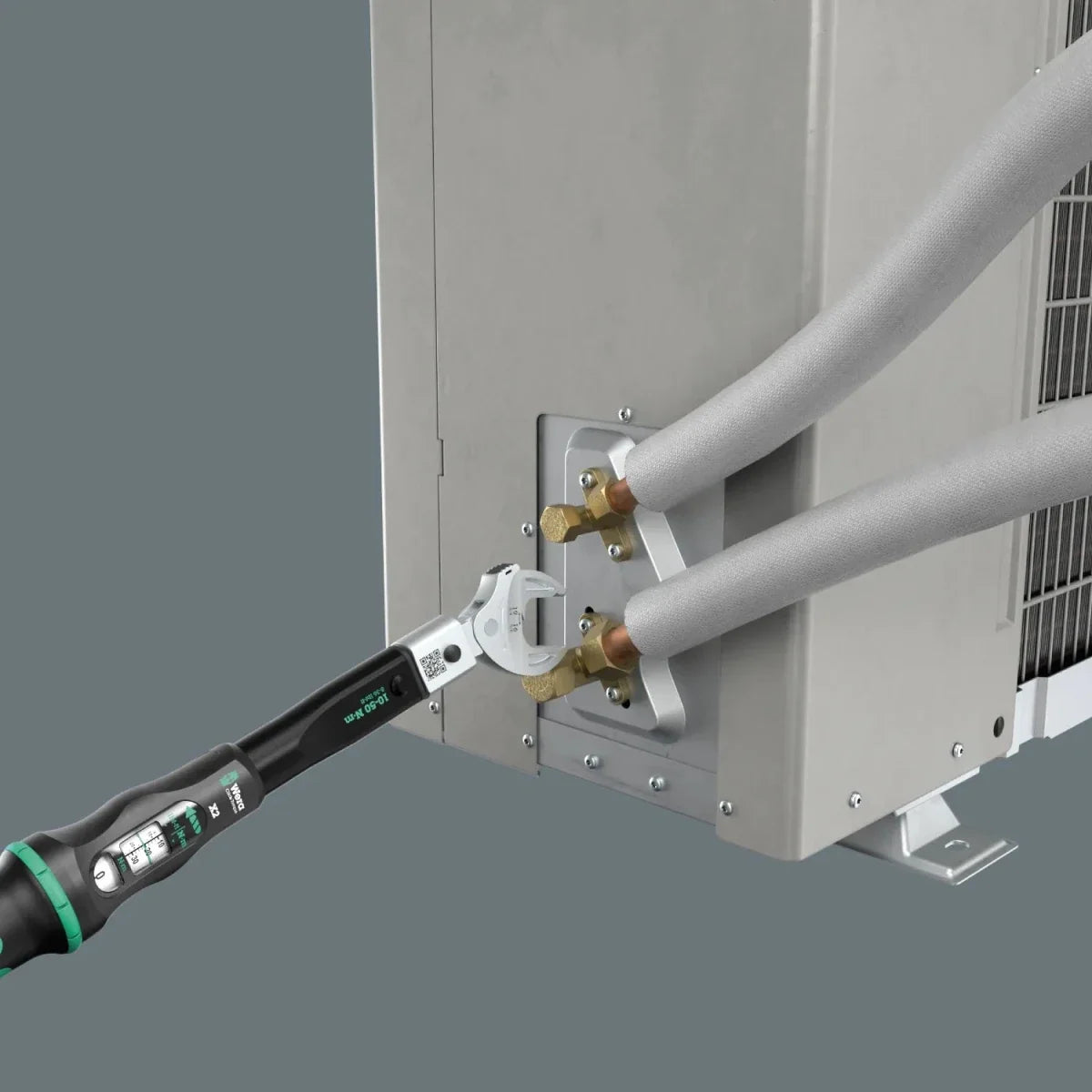

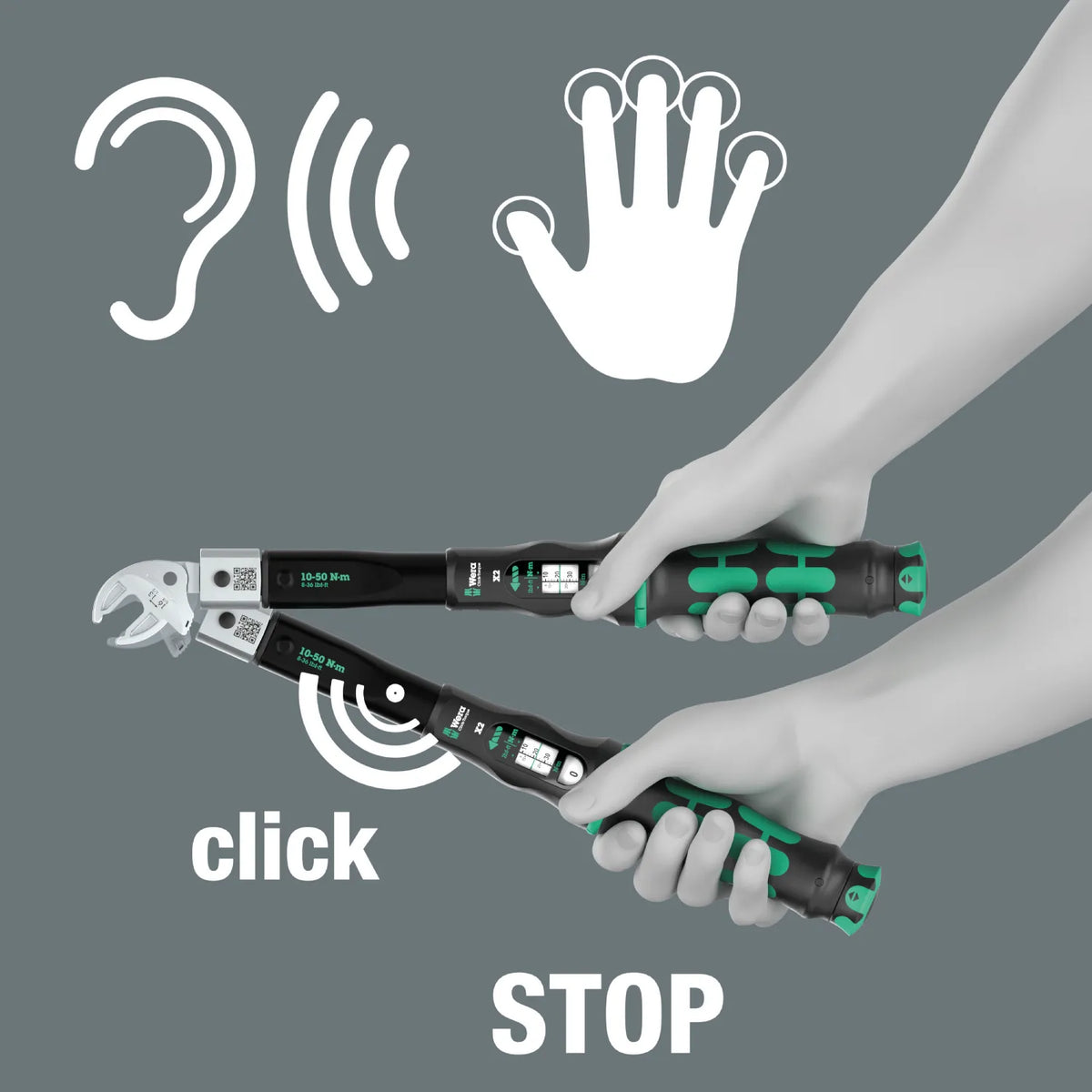

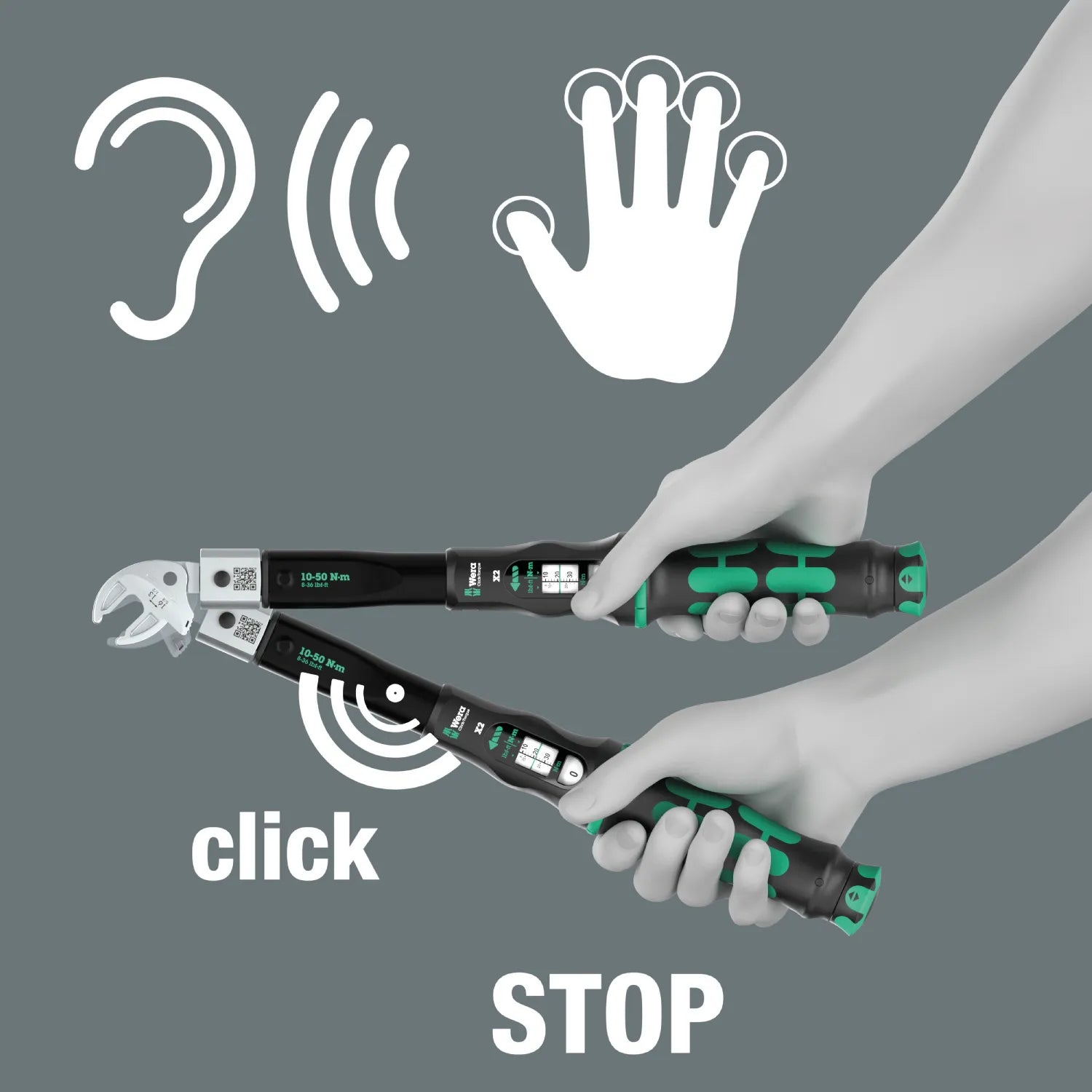

• Audible & Tactile Signals: Features a clear mechanical click and release signal upon reaching set torque targets for total accuracy during HVAC mini-split and line set installations.

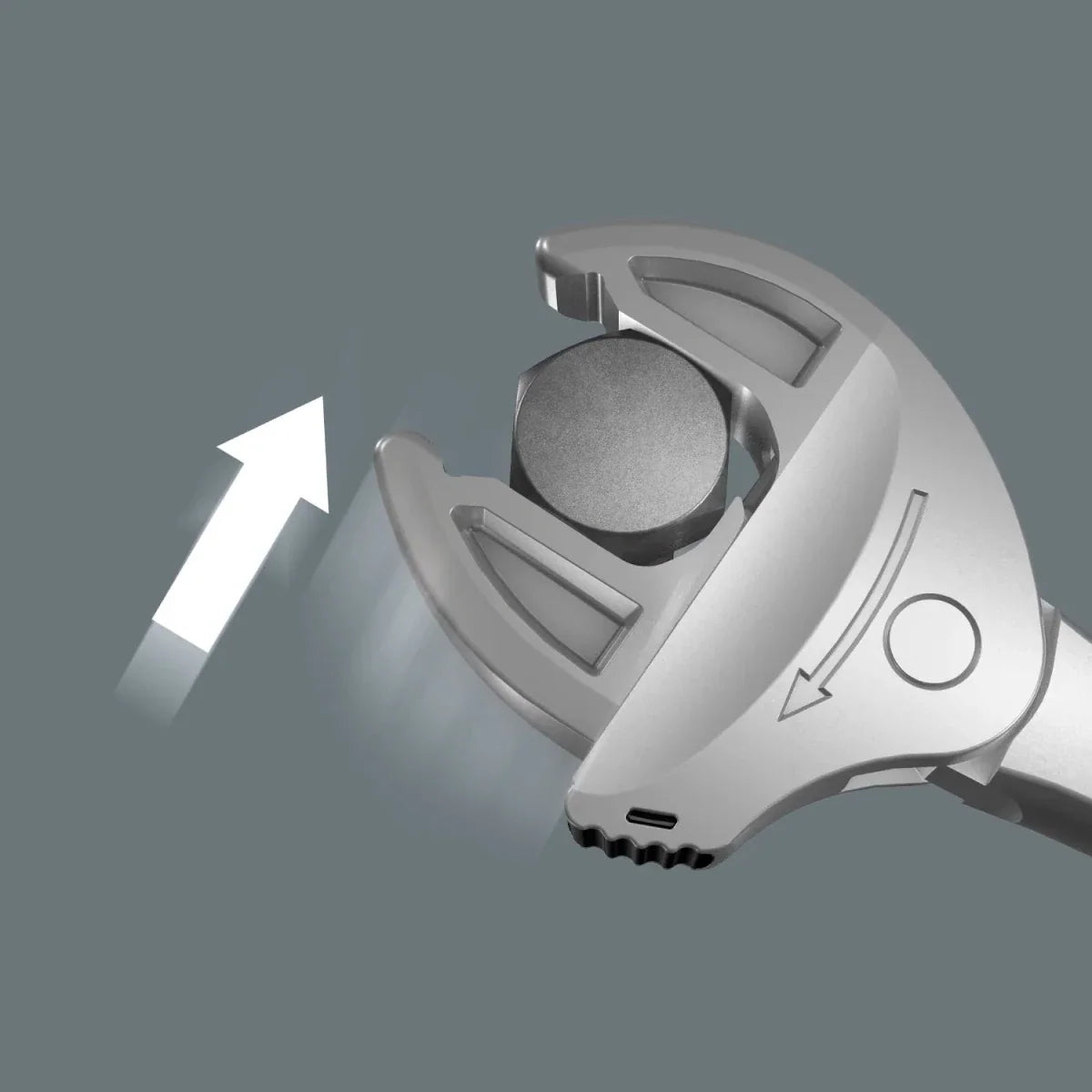

• Ratchet Mechanism: Integrated lever action on the Joker inserts allows for continuous 30° return angle ratcheting without removing the tool from the fastener.

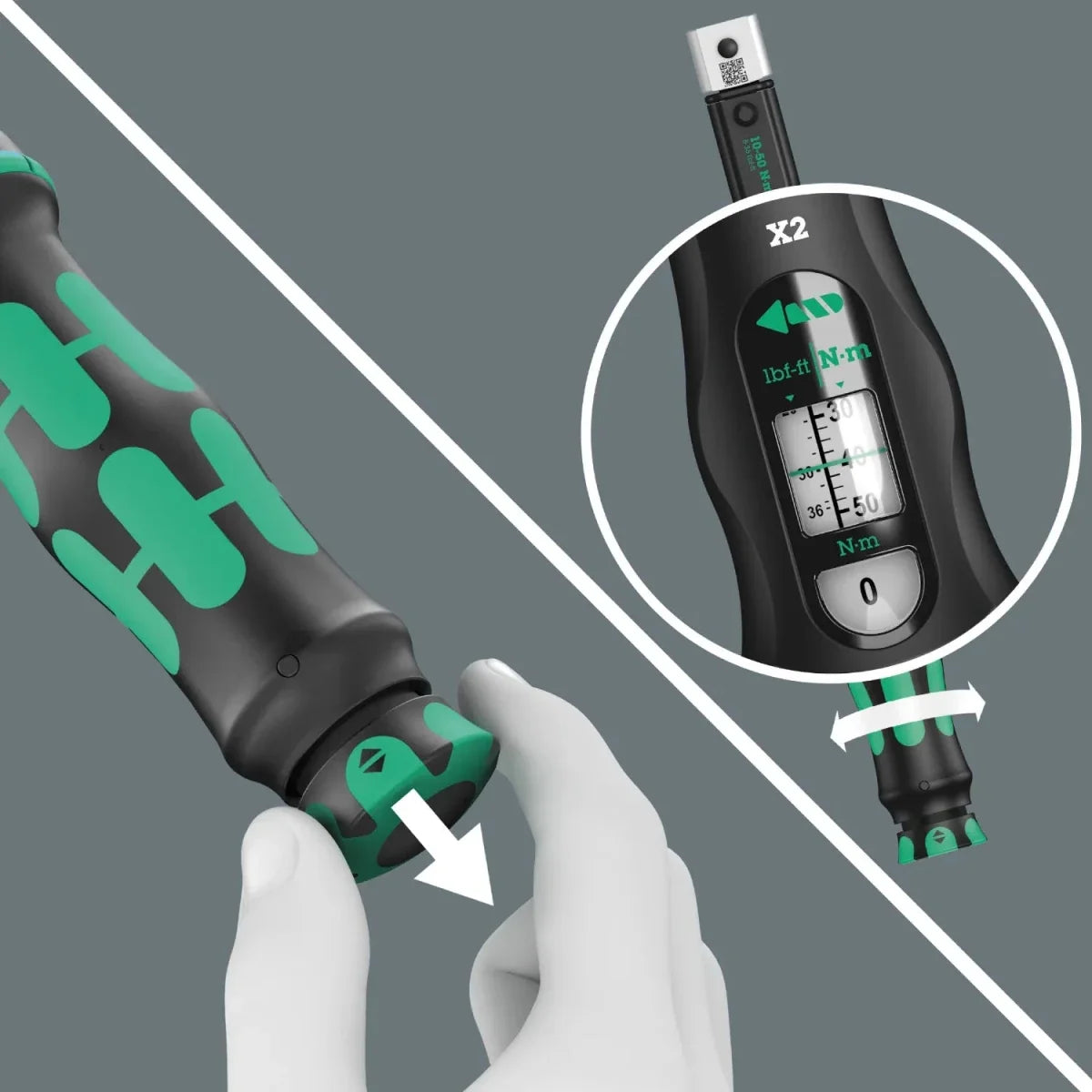

• Easy Scale Adjustment: Smooth pull-to-unlock handle design with main and fine scale readout for exact torque settings.

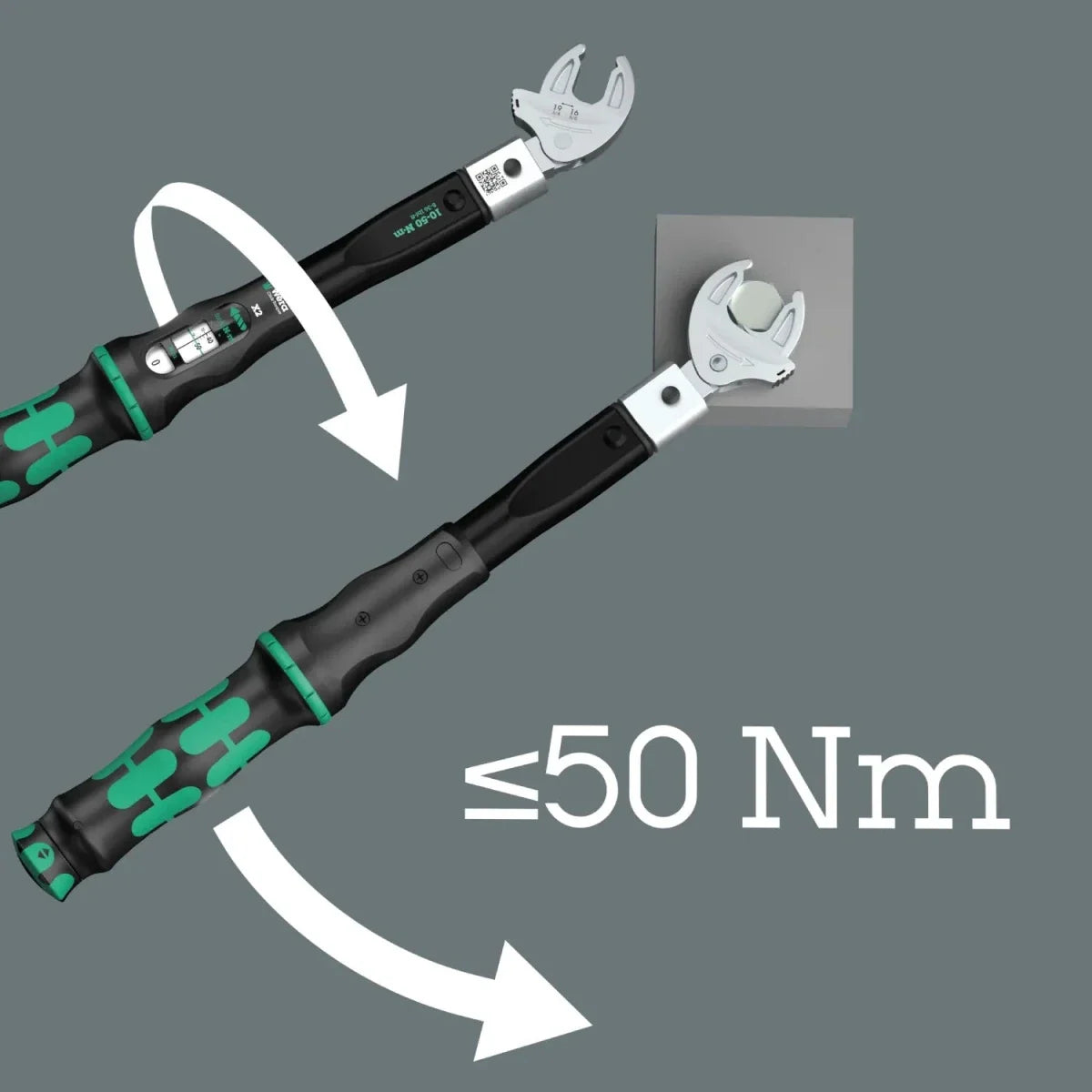

• Reverse Torque Capability: Safe for loosening connections at torque levels up to 50 Nm without damaging the internal torque mechanism.

Specifications:

• Part Number / EAN: 05136062001 / 4013288238740

• Torque Range: 10 – 50 Nm

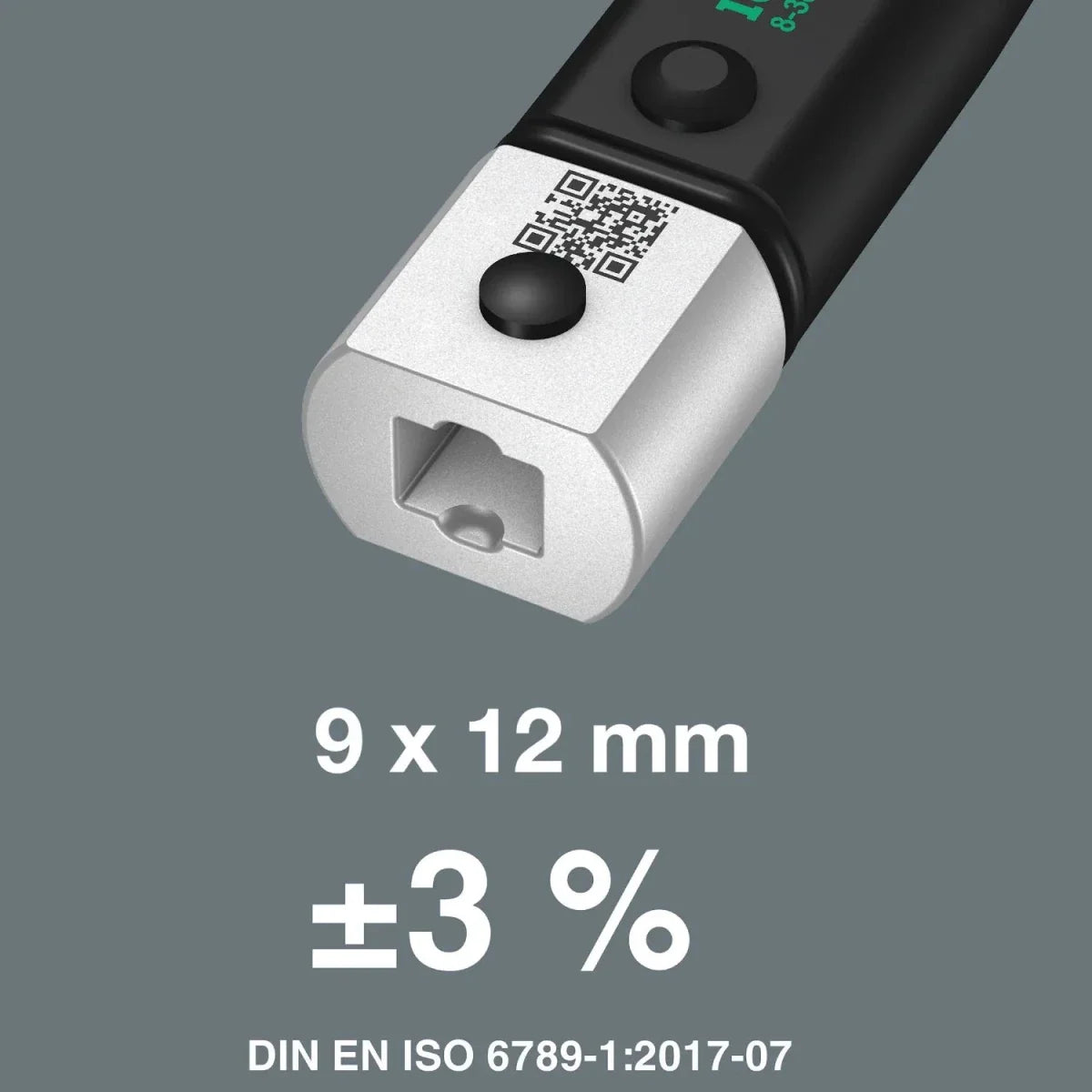

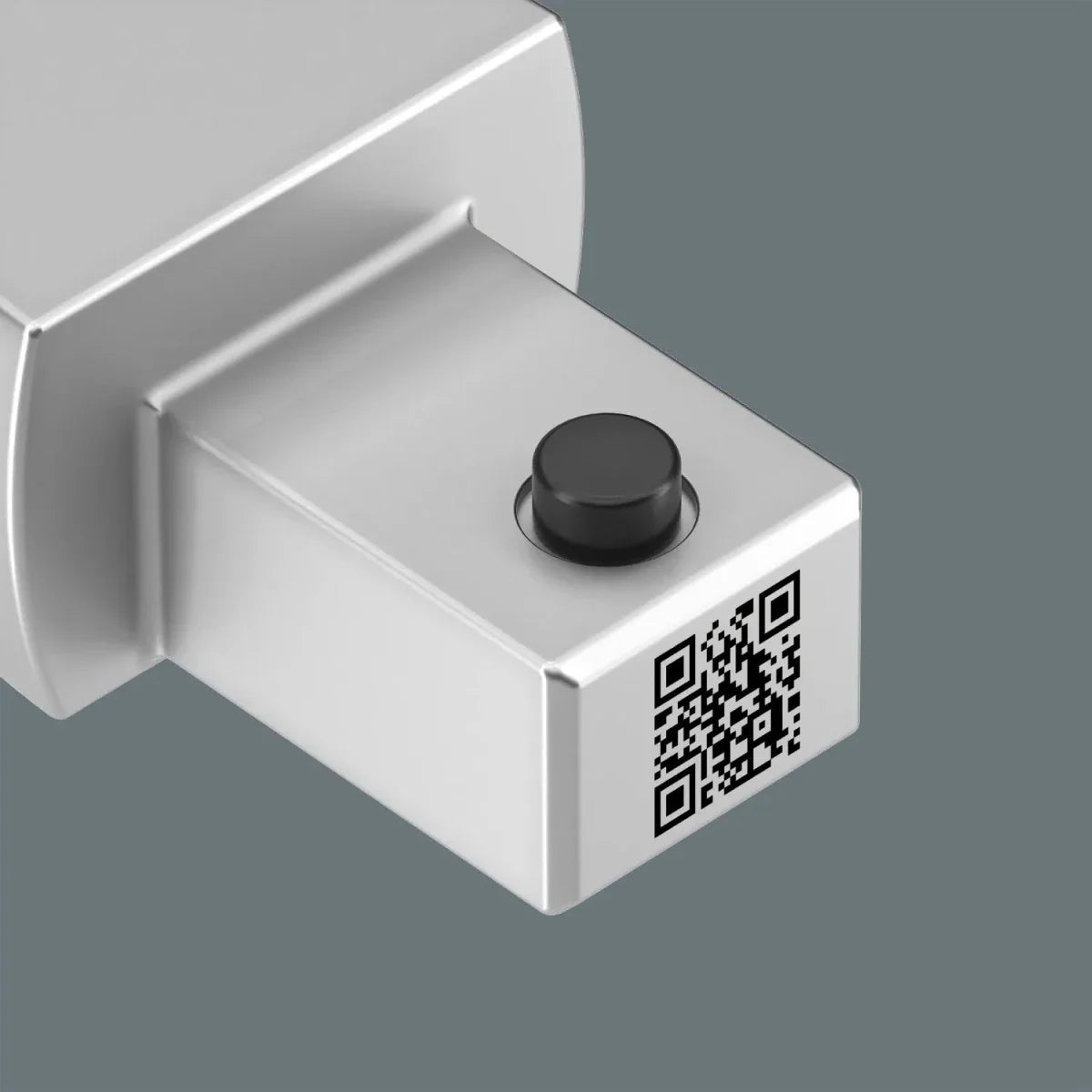

• Insert Mount Drive: 9x12 mm female rectangular socket

• Accuracy: ±3% of set value

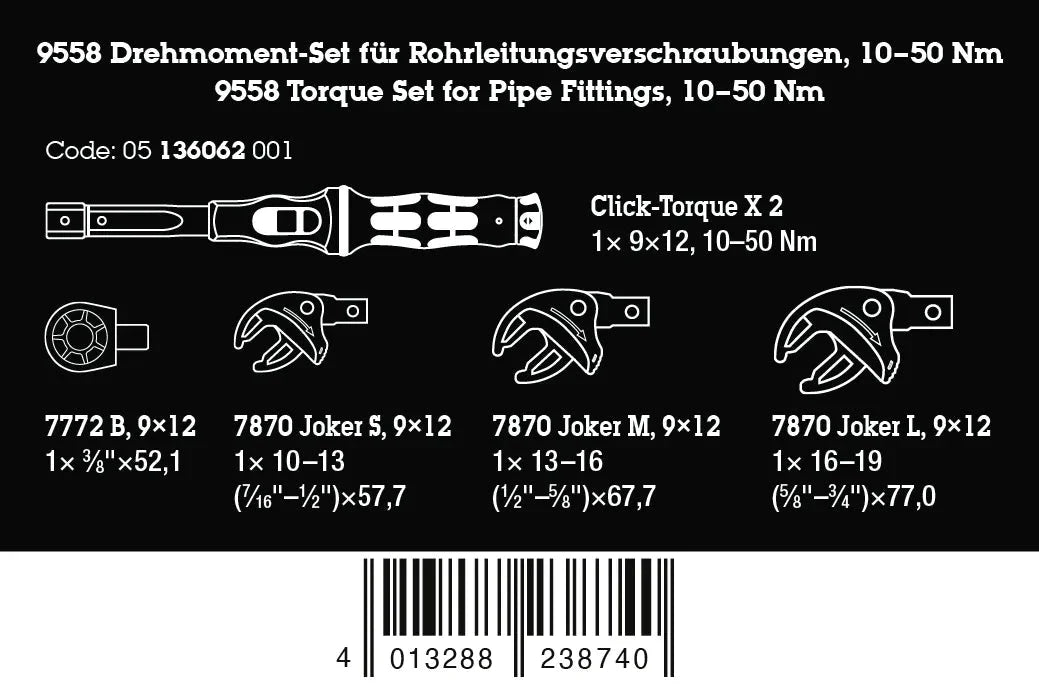

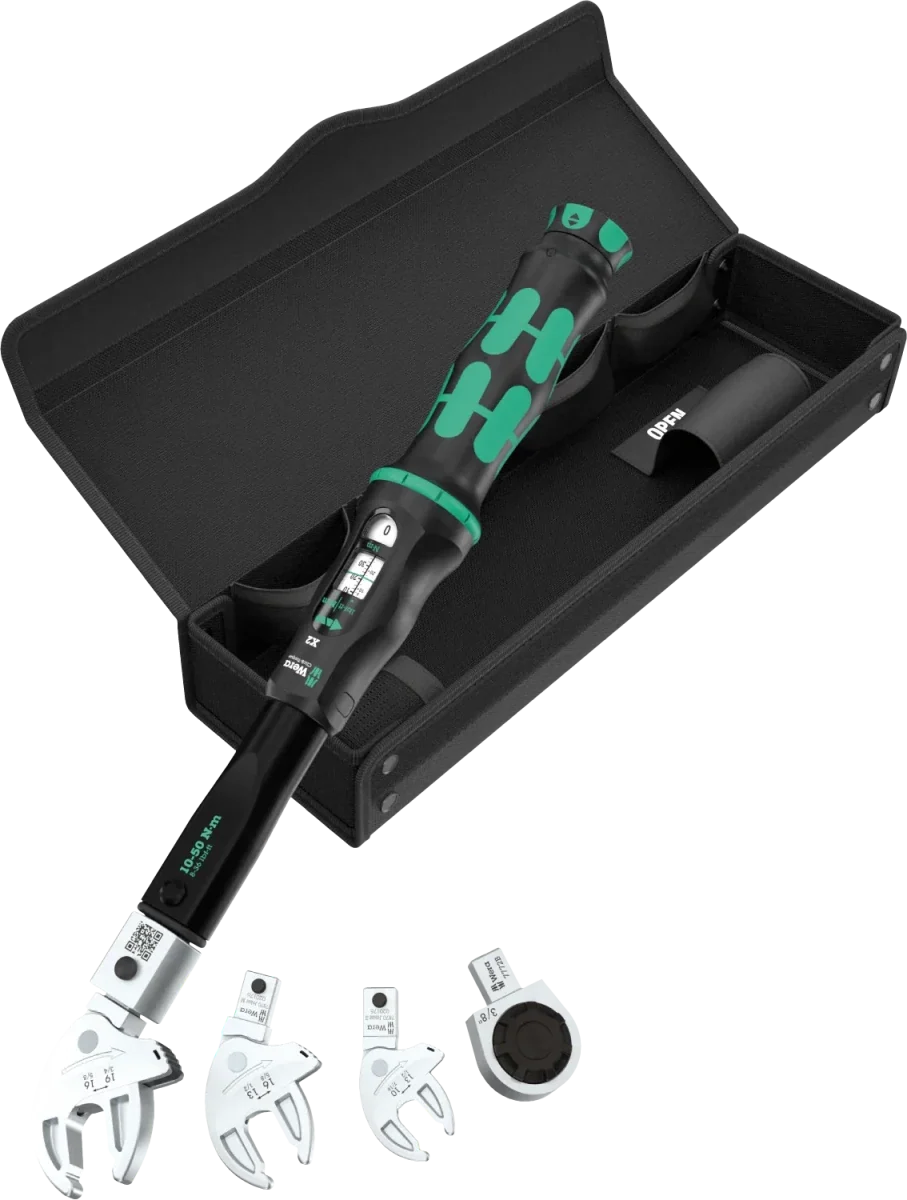

What’s Included:

• 1x Click-Torque X 2 Wrench: 9x12 mm drive, 10–50 Nm range (±3% accuracy according to DIN EN ISO 6789-1:2017-07)

• 1x 7772 B Ratchet Insert: 3/8" square drive, 9x12 mm connection

• 1x 7870 Joker S Insert: 10–13 mm (7/16"–1/2") self-setting spanner

• 1x 7870 Joker M Insert: 13–16 mm (1/2"–5/8") self-setting spanner

• 1x 7870 Joker L Insert: 16–19 mm (5/8"–3/4") self-setting spanner

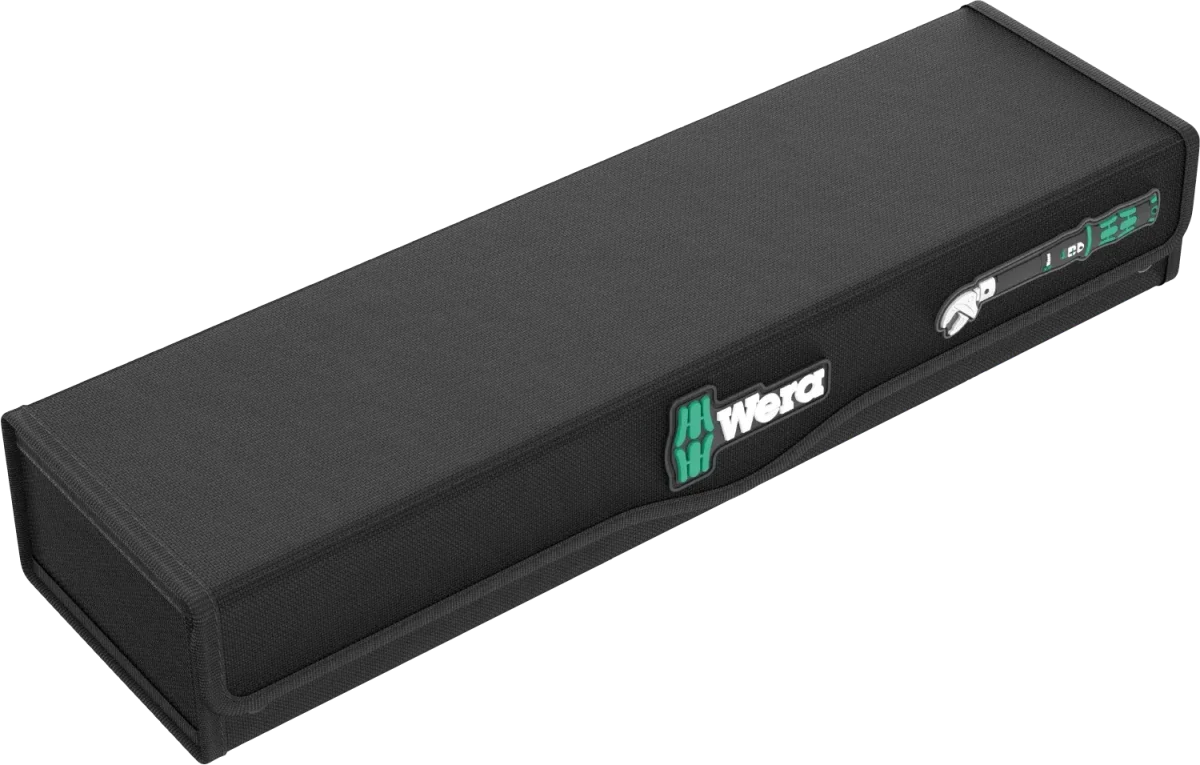

• 1x Compact Textile Storage Case: Robust, surface-friendly transport pouch with tool protection
